Arrco AA51KP-BFV Remanufactured Compressor 51,000 BTU/hr (5 Ton) Copeland ZP51K_E-PFV

Product Description

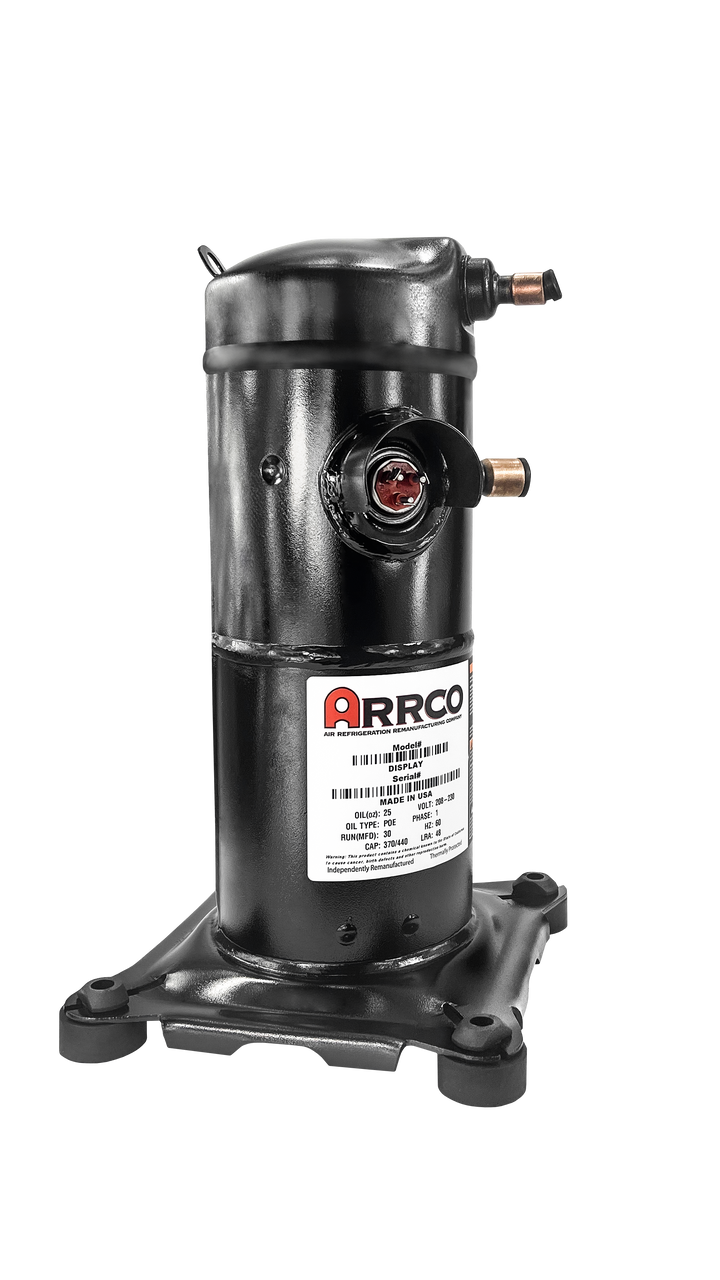

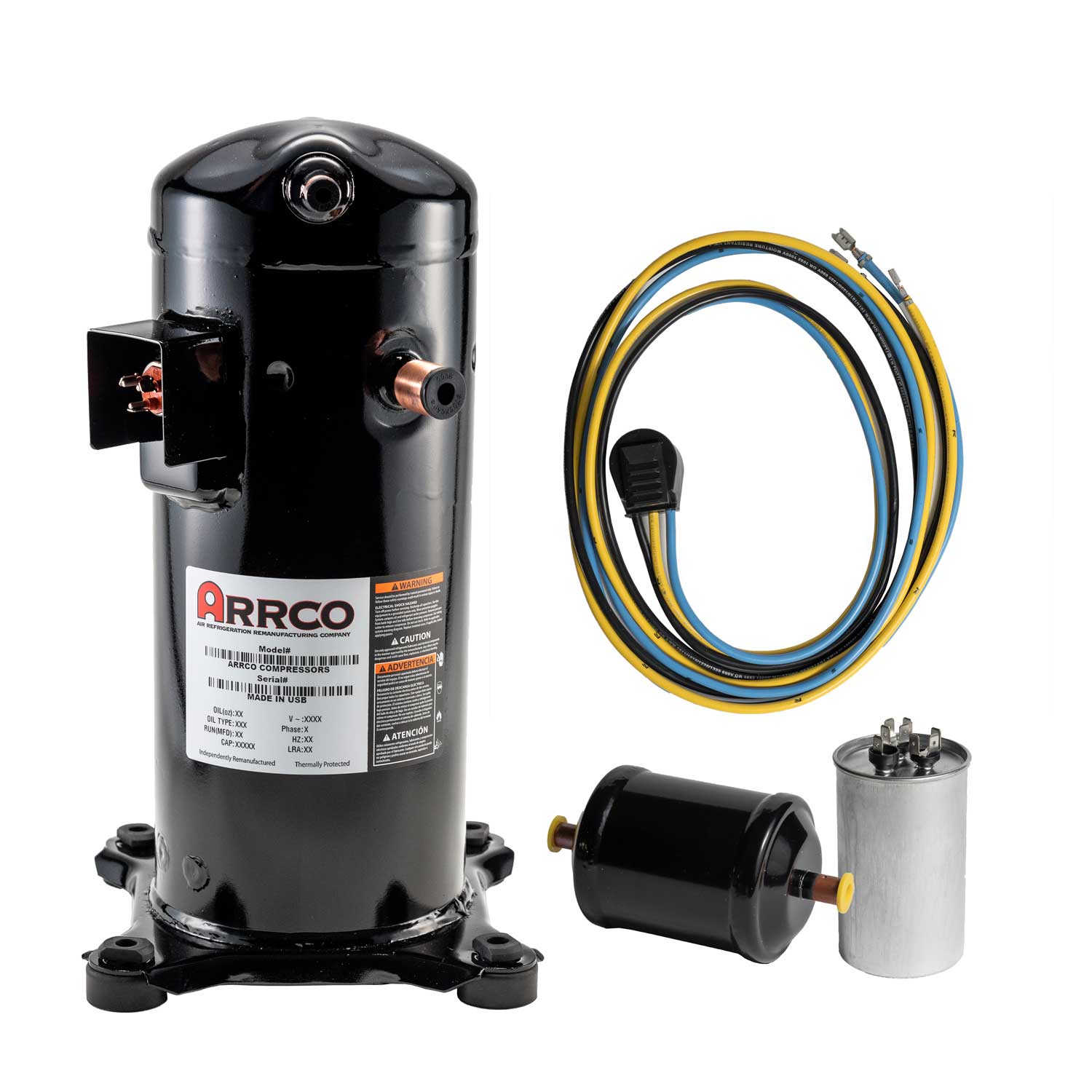

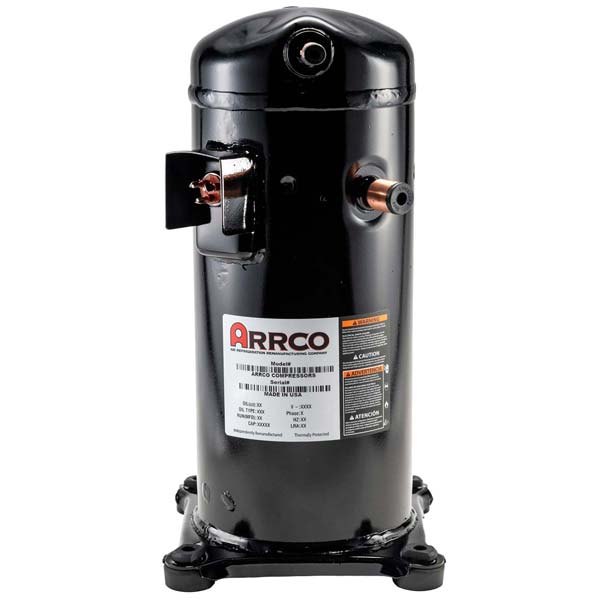

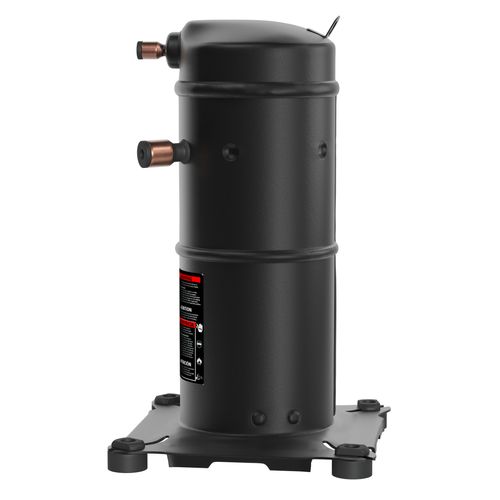

Arrco AA51KP-BFV is a remanufactured scroll compressor rated at 51,000 BTU/hr for R-410A air conditioning systems. The unit is designed for 208/230 V single-phase, 60 Hz operation and is sized for 5-ton HVAC applications. It uses POE oil and has 1/2 in discharge and 7/8 in suction stubs. The compressor kit includes a capacitor, filter drier, and a 5-foot wiring harness and lists electrical performance and start/run capacitor data.

• Remanufactured scroll compressor for R-410A systems; 51,000 BTU/hr (5 ton), 208/230 V, single-phase, 60 Hz
• Includes POE oil, capacitor, filter drier, and 5' wiring harness; suction 7/8 in stub, discharge 1/2 in stub
• Electrical performance: power consumption 3,140–4,690 W; current draw 14.45–21.2 A; LRA 134 A; run load amps (contactor) 24.3 A

Product Highlights

Remanufactured 5-ton R-410A scroll compressor, 51,000 BTU/hr capacity, 208/230 V single-phase operation, includes capacitor and filter drier.

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AA51KP-BFV

Technical Specifications

• Brand: Arrco
• MPN: AA51KP-BFV
• Compressor type: Scroll compressor
• Application: Air conditioning
• Capacity (BTU/hr): 51,000
• Tonnage: 5 Ton
• Refrigerant: R-410A
• Input Voltage: 208-230 V
• Phase: Single-phase
• Frequency: 60 Hz
• Power Consumption: 3,140 - 4,690 W
• Current draw: 14.45 - 21.2 A
• Locked Rotor Amps (LRA): 134 A
• Maximum Operating Current: 34 A
• Run Load Amps (Contactor): 24.3 A
• Run Load Amps (Breaker & Wire): 21.8 A
• Run Capacitor: See product label
• Run Capacitor Voltage: 370/440 V
• Start Capacitor (MFD): 88
• Start Capacitor Voltage: 330 V
• Oil Type: POE

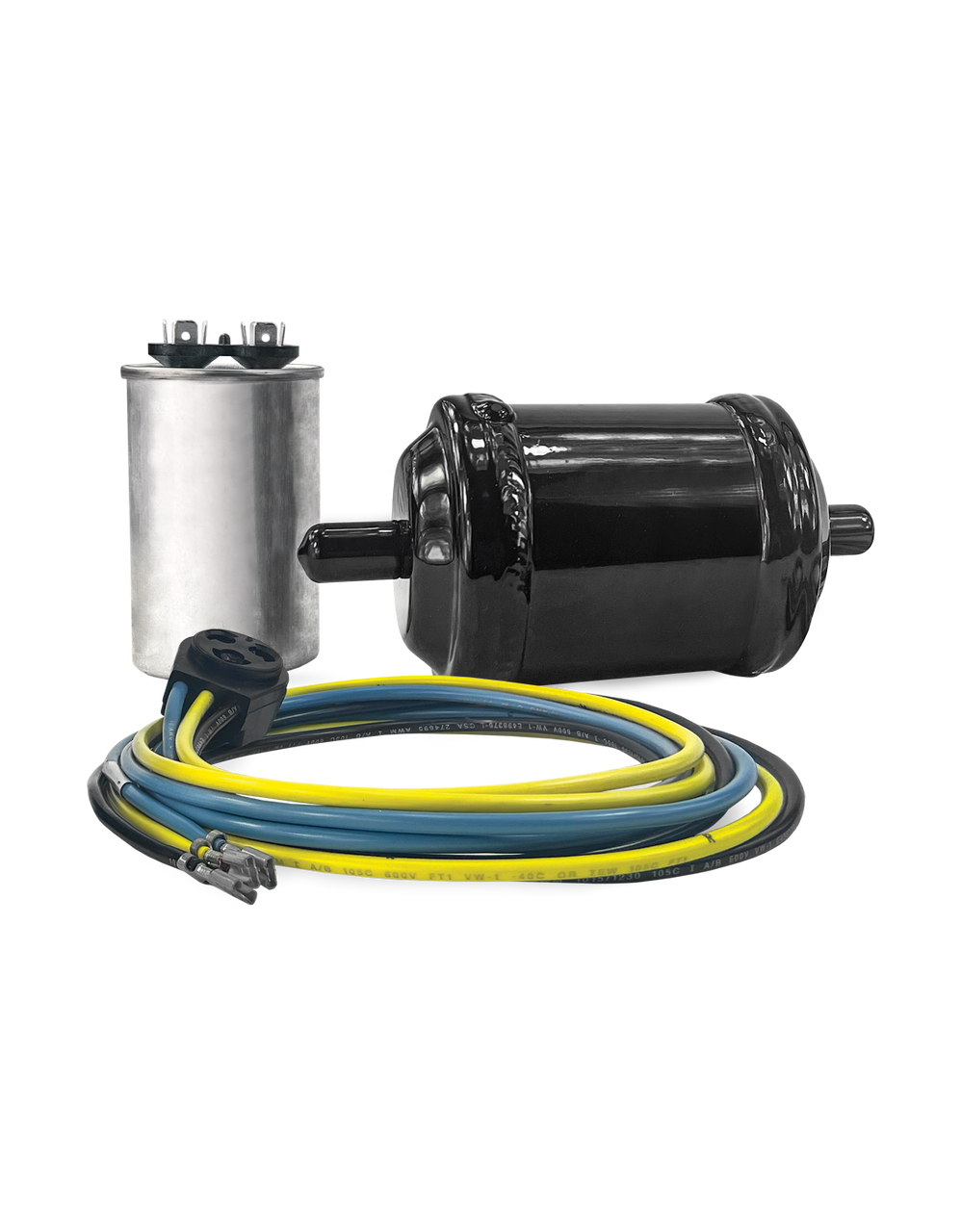

• Includes: POE oil, capacitor, filter drier, 5' wiring harness
• Suction connection: 7/8 in stub
• Discharge connection: 1/2 in stub
• Overall height: 17.17 in
• Mounting length/width: 7.5 in
• Overall length/width: 9.56 in
• Cross reference: Copeland ZP51K_E-PFV
