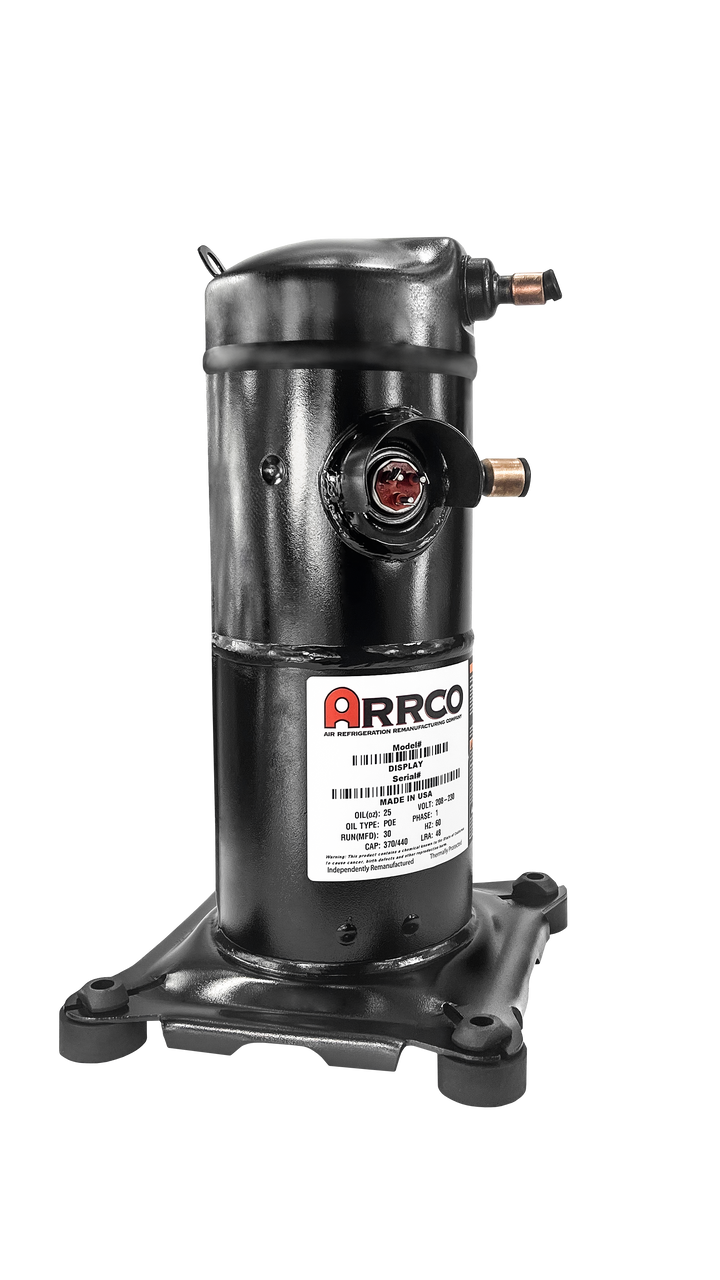

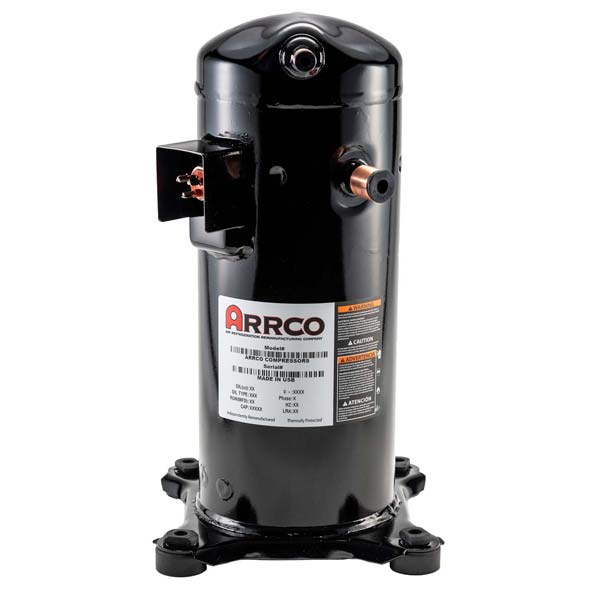

Arrco AA42KP-BFV Remanufactured compressor with kit 42,000 BTU/hr (1/2 in discharge / 7/8 in suction) Copeland ZP42K_E-PFV

Product Description

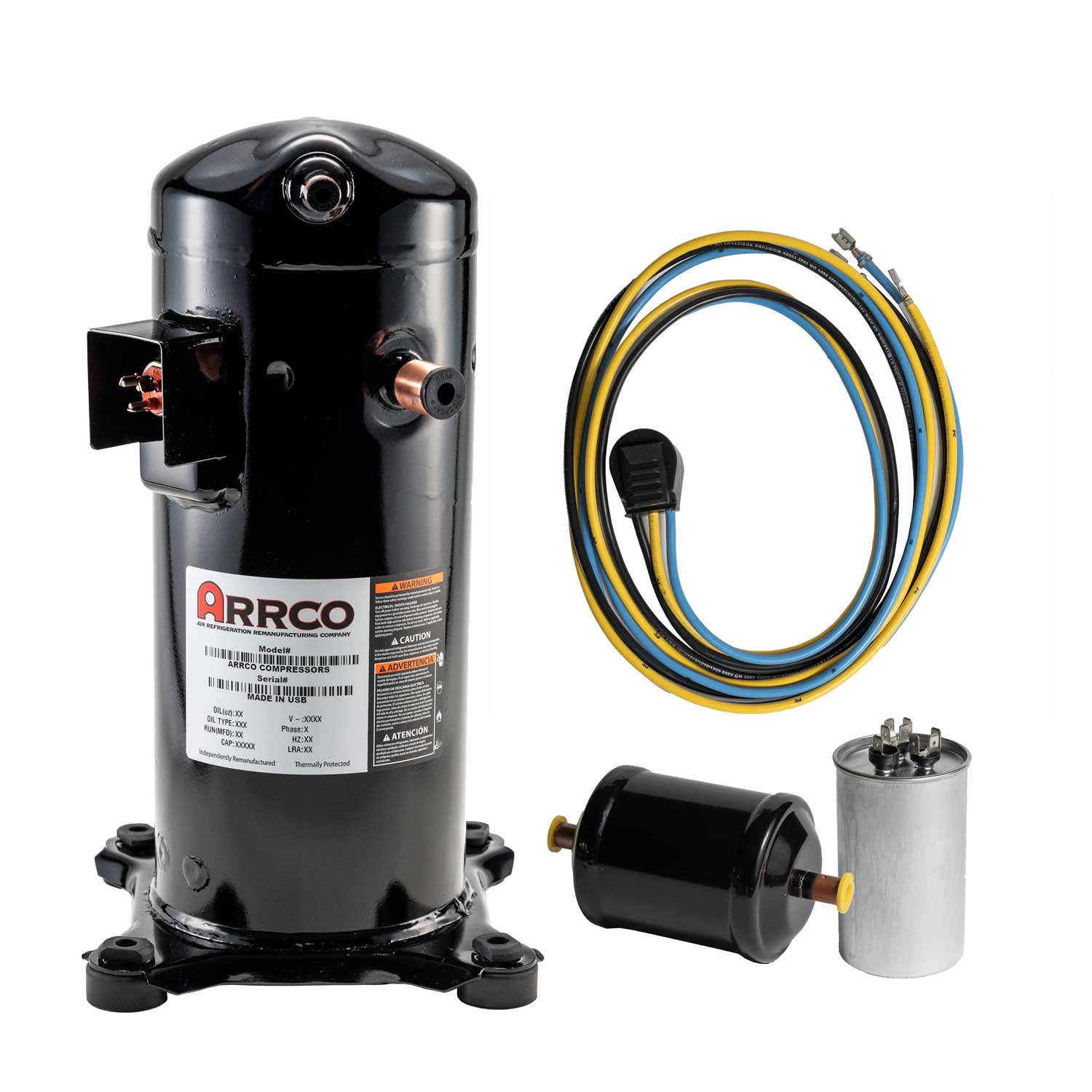

Arrco AA42KP-BFV is a remanufactured scroll compressor for air conditioning applications using R-410A refrigerant and rated at 42,000 BTU/hr. The unit operates on 208-230 V single-phase, 60 Hz service and uses POE oil. The kit includes a capacitor, filter drier and a 5 ft wiring harness; suction and discharge stub sizes are 7/8 in and 1/2 in respectively.

• Capacity: 42,000 BTU/hr; refrigerant: R-410A; compressor type: scroll
• Electrical: 208-230 V, single phase, 60 Hz; uses POE oil

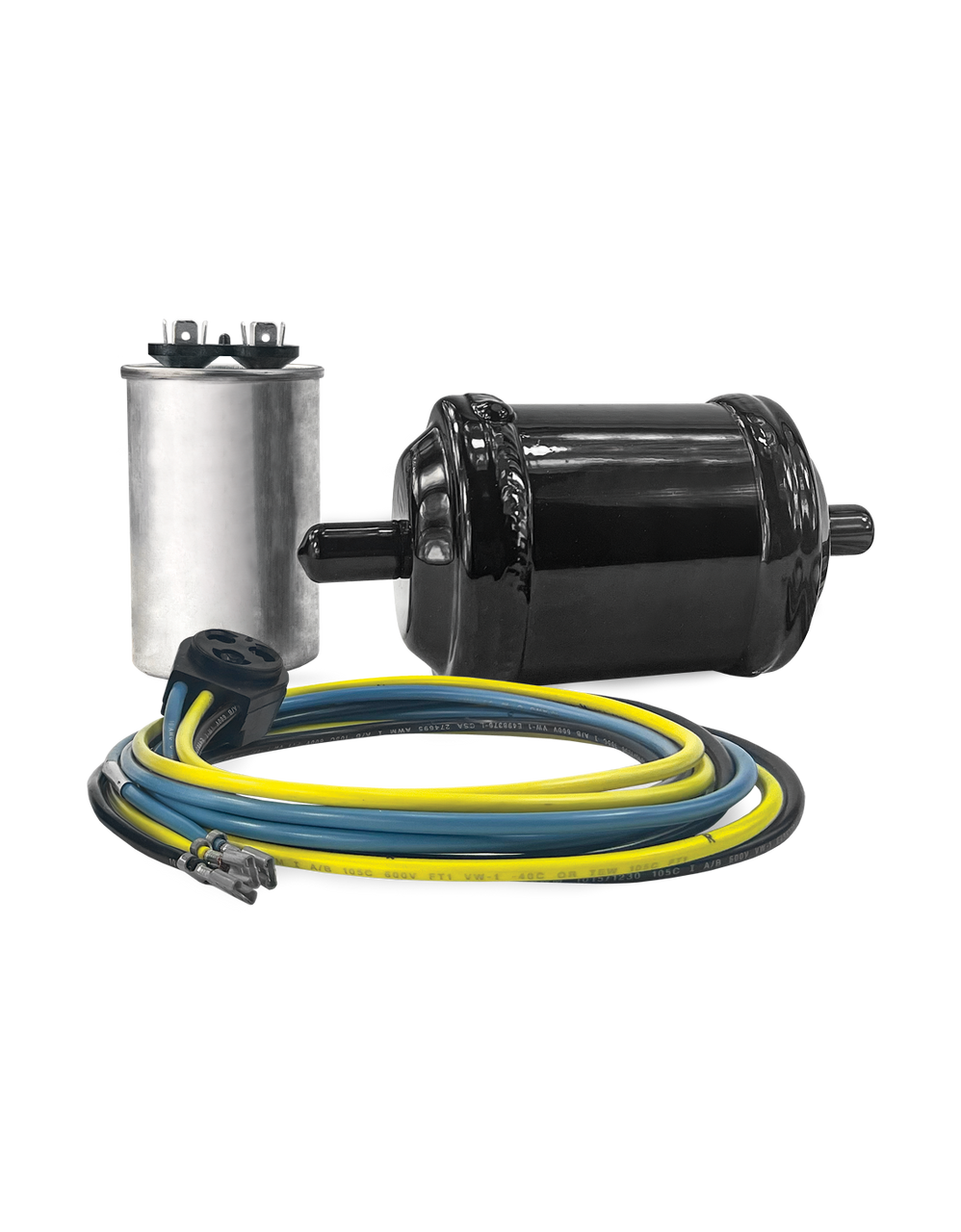

• Kit contents: capacitor, filter drier, POE oil and 5 ft wiring harness; connections: 7/8 in suction, 1/2 in discharge

Product Highlights

Remanufactured Arrco AA42KP-BFV scroll compressor, 42,000 BTU/hr, R-410A, 208-230 V single-phase, includes capacitor, filter drier, POE oil and 5 ft wiring harness; cross-references Copeland ZP42K_E-PFV.

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AA42KP-BFV

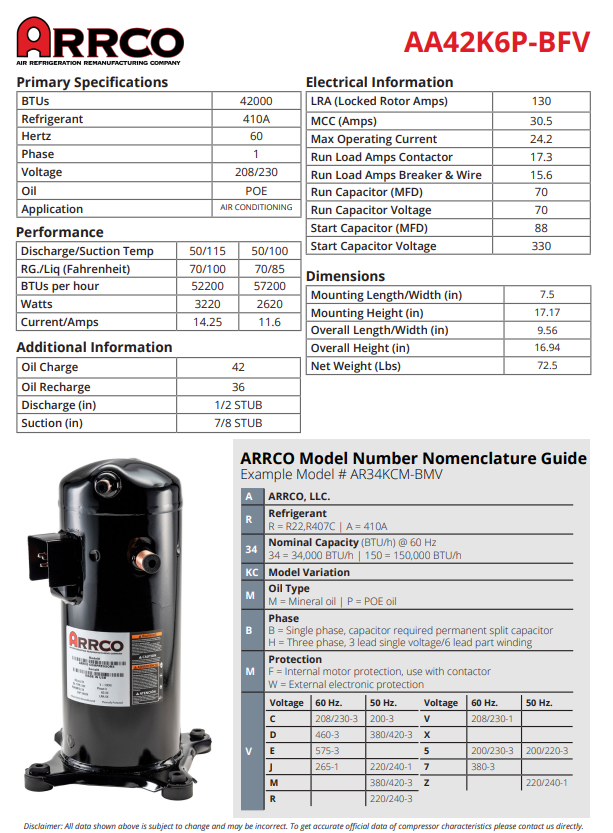

Technical Specifications

• Brand: Arrco
• MPN: AA42KP-BFV
• Product Name: Remanufactured compressor with kit
• Compressor Type: Scroll
• Capacity (BTU/hr): 42,000
• Refrigerant: R-410A
• Input Voltage: 208-230 V
• Phase: Single
• Frequency: 60 Hz
• Oil Type: POE
• Suction Connection: 7/8 in (stub)
• Discharge Connection: 1/2 in (stub)
• Includes: POE oil; capacitor; filter drier; 5 ft wiring harness
• Weight: 75 lb
• Overall Height: 16.94 in
• Overall Length: 9.56 in
• Overall Width: 9.56 in
• Mounting Length/Width: 7.5 in
• Mounting Height: 17.17 in
• Application: Air conditioning
• Cross Reference: Copeland ZP42K_E-PFV; replaces ZP42K5E-PFV / ZP44K5E-PFV / ZP41K3E-PFV
