Arrco AA25KP-BFV Remanufactured Scroll Compressor Kit 2.5 Ton (208/230V 1 ph) ZP25K_E-PFV

Product Description

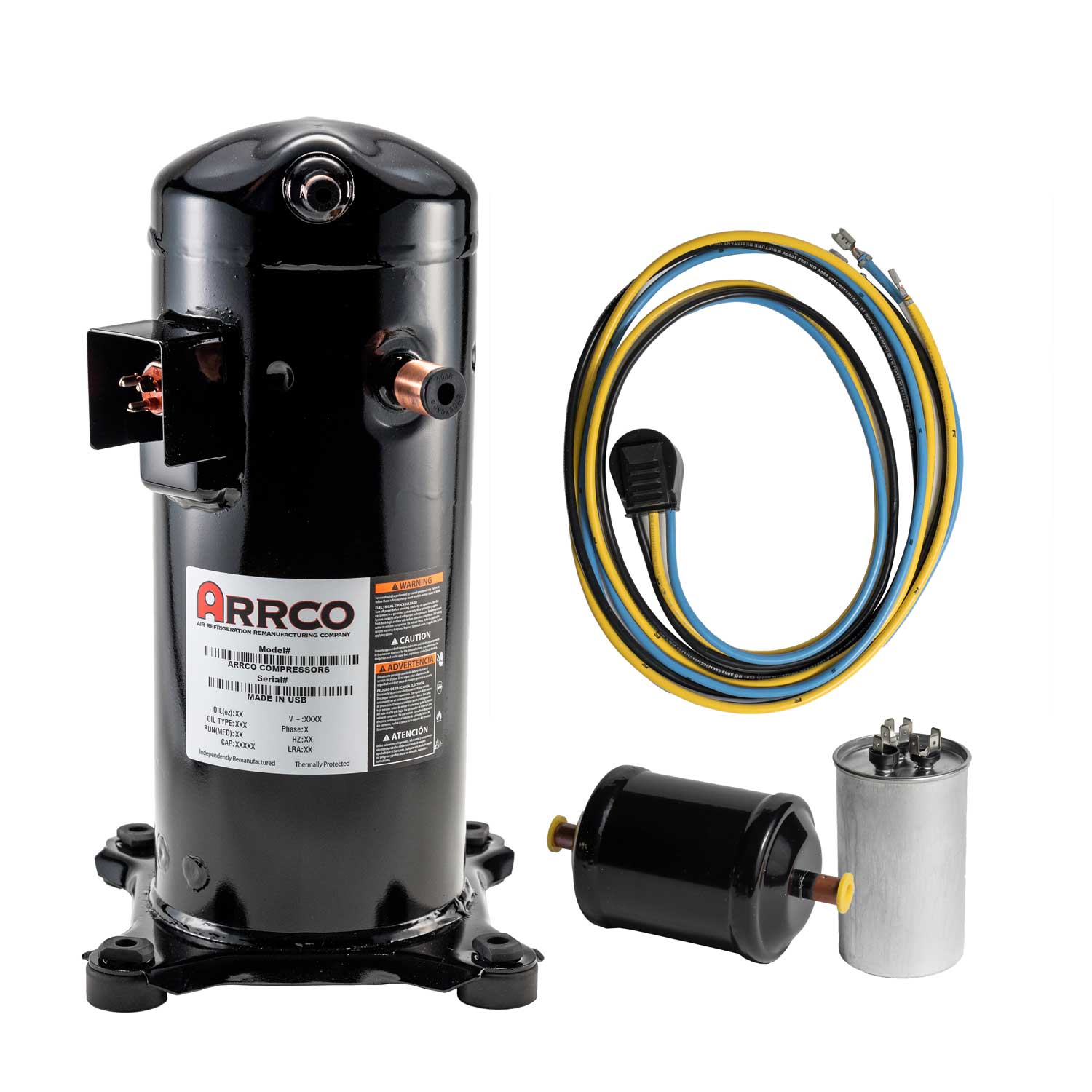

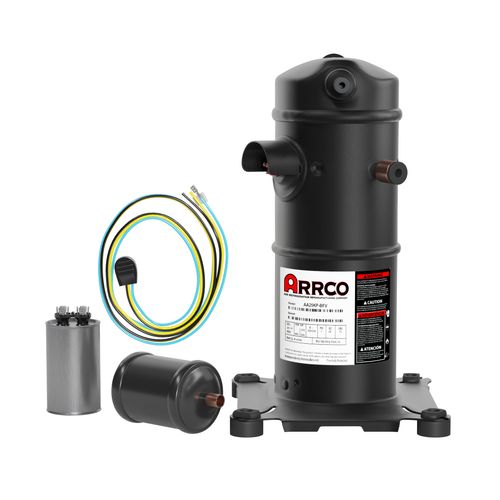

Arrco AA25KP-BFV is a remanufactured scroll compressor kit rated at 2.5 tons (25,000 BTU) for R410A air conditioning systems, designed for 208/230 V single-phase, 60 Hz operation. The kit includes POE oil, a capacitor, a filter drier, and a 5-foot wiring harness. It features 3/4 inch suction and 1/2 inch discharge stubs with compact mounting dimensions suitable for residential and light commercial replacement applications.

• Capacity: 2.5 tons (25,000 BTU); refrigerant: R410A; voltage: 208/230 V, single-phase, 60 Hz
• Includes POE oil, capacitor, filter drier, and 5 ft wiring harness; 3/4 in suction and 1/2 in discharge fittings
• Remanufactured scroll compressor design with compact mounting dimensions and Copeland cross references for replacement fit

Product Highlights

Remanufactured Arrco AA25KP-BFV scroll compressor kit for 2.5 ton R410A systems with 208/230V single-phase operation and installation fittings included

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AA25KP-BFV

Technical Specifications

• Brand: Arrco
• MPN: AA25KP-BFV
• Compressor type: Scroll
• Capacity: 2.5 Ton (25,000 BTU/hr)
• Refrigerant: R410A
• Voltage: 208/230 V
• Phase: Single-phase
• Frequency: 60 Hz
• Suction connection: 3/4 in (stub)
• Discharge connection: 1/2 in (stub)
• Oil type: POE
• Includes: POE oil, capacitor, filter drier, 5 ft wiring harness
• Weight: 52 lbs
• Mounting dimensions: 7.5 in x 7.5 in x 16.02 in (mounting L x W x H)
• Overall dimensions: 9.56 in x 9.56 in x 15.27 in (overall L x W x H)
• Cross reference: Copeland ZP25K_E-PFV; ZP25K5E-PFV; ZP25K6E-PFV; ZP26K3E-PFV
• Application: Residential and light commercial air conditioning
• Typical operating current: 7.4 A (low load) / 11.1 A (high load)
• Locked rotor amps (LRA): 73 A
• Maximum operating current: 13.8 A
• MCC (amps): 22 A
• Run load amps (contactor): 9.9 A
• Run load amps (breaker and wire): 8.8 A
• Start capacitor (MFD): 88
• Start capacitor voltage: 330 V
• Run capacitor voltage: 370/440 V
