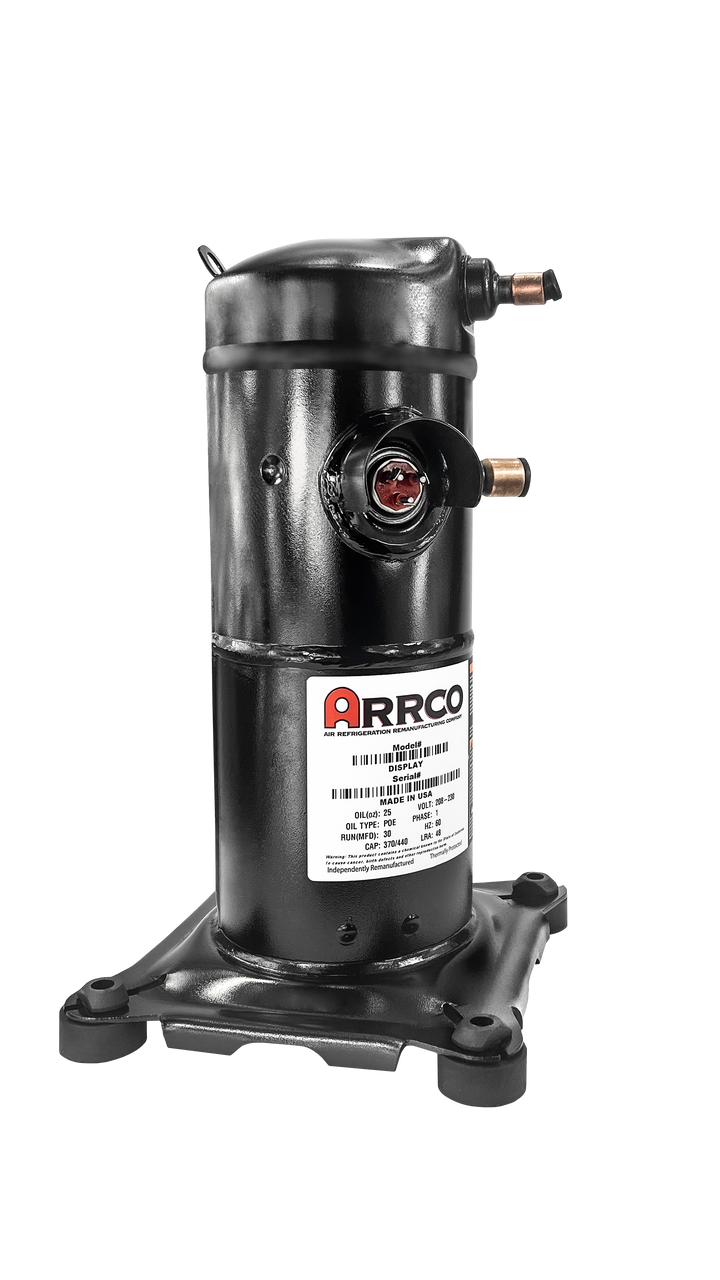

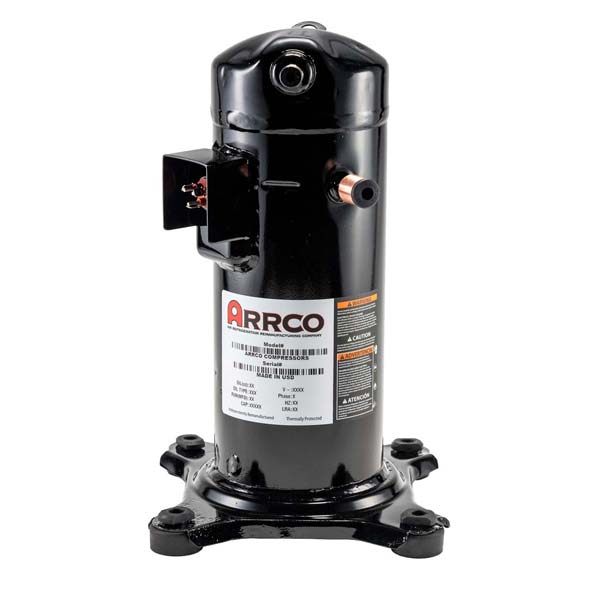

Arrco AA20KP-BFV Remanufactured Scroll Compressor Kit 20,000 BTU (208/230V) ZP20K_E-PFV

Product Description

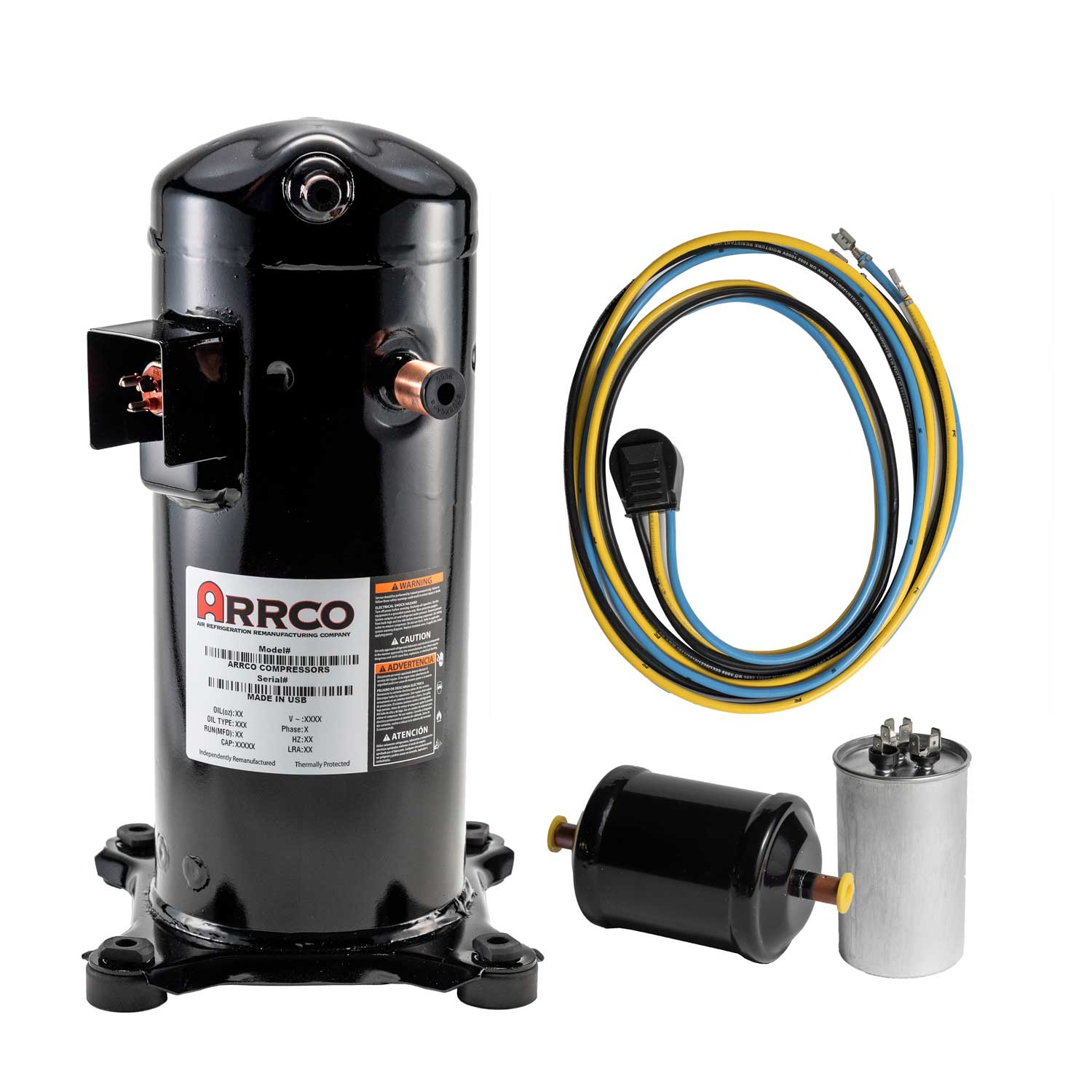

The Arrco AA20KP-BFV is a remanufactured scroll compressor kit intended for air conditioning systems using R-410A refrigerant, rated at 20,000 BTU/hr and 208/230 V single-phase, 60 Hz. The unit features 1/2 in discharge and 3/4 in suction stub connections, ships with POE oil, and includes a capacitor, filter drier, and a 5-foot wiring harness for installation.

• Remanufactured scroll compressor, compatible with R-410A, nominal 20,000 BTU/hr capacity
• Electrical: 208/230 V, single phase, 60 Hz; includes POE oil and start/run components
• Mechanical: 1/2 in discharge stub, 3/4 in suction stub; includes capacitor, filter drier, and 5 ft wiring harness

Product Highlights

Remanufactured Arrco scroll compressor kit for R-410A systems, 20,000 BTU, 208/230 V single-phase, includes POE oil and installation accessories; Copeland cross-reference ZP20K_E-PFV.

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AA20KP-BFV

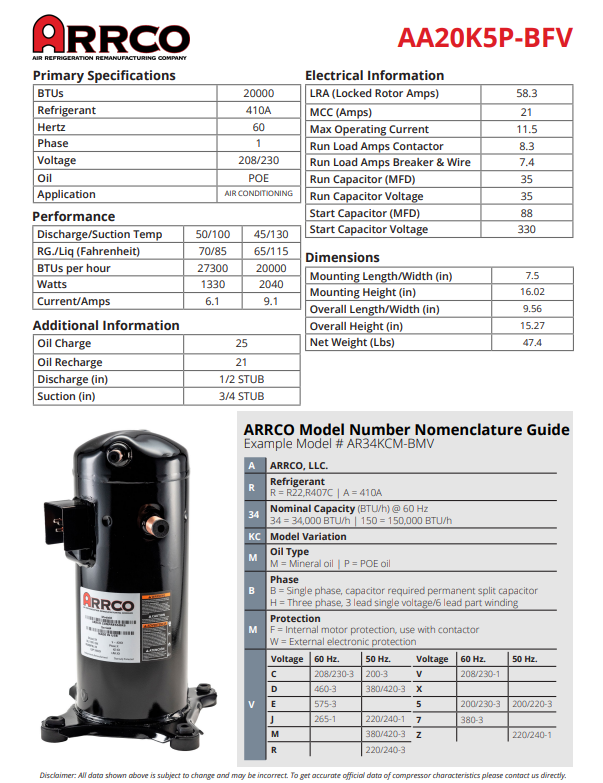

Technical Specifications

• Brand: Arrco
• MPN: AA20KP-BFV
• Product Type: Compressor Kit
• Compressor Type: Scroll
• Refrigerant: R-410A
• Capacity (BTU/hr): 20,000
• Capacity (Tons): 1.75
• Voltage: 208/230 V
• Phase: Single phase
• Frequency: 60 Hz
• Suction Connection: 3/4 in stub
• Discharge Connection: 1/2 in stub
• Oil Type: POE

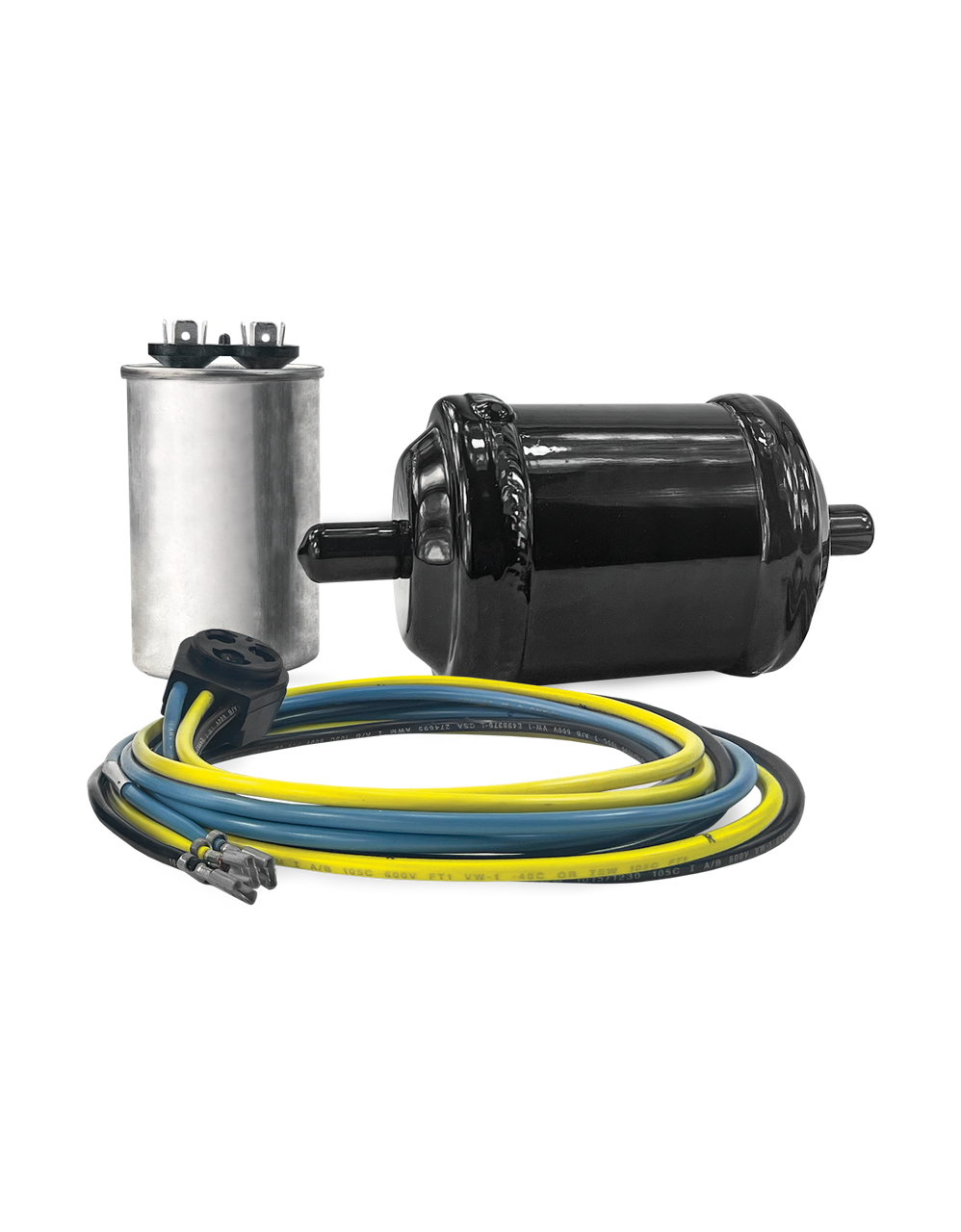

• Included Accessories: POE oil, capacitor, filter drier, 5 ft wiring harness
• Weight: 52 lbs
• Overall Dimensions (L x W x H): 9.56 in x 9.56 in x 15.27 in
• Performance BTU/hr (max listed): 27,300
• Running Current (A): 6.1 A
• Current (A) - alternate condition: 9.1 A
• Locked Rotor Amps (LRA): 58.3 A
• MCC (Amps): 21 A
• Max Operating Current (A): 11.5 A
• Run Load Amps (Contactor): 8.2 A
• Run Load Amps (Breaker & Wire): 7.4 A
• Run Capacitor (MFD): 35 (see product label for exact value)
• Run Capacitor Voltage (V): 370/440 V (label dependent)
• Start Capacitor (MFD): 88
• Start Capacitor Voltage (V): 330 V
• Oil Charge (oz): 25
• Oil Recharge (oz): 21
• Application: Air conditioning
• Cross Reference: Copeland ZP20K_E-PFV (and related Copeland models ZP20K5E-PFV, ZP20K6E-PFV, ZP21K5E-PFV)
