Arnold 490-501-Y044 42 in Deck Drive Belt Troy-bilt 700 Series

Product Description

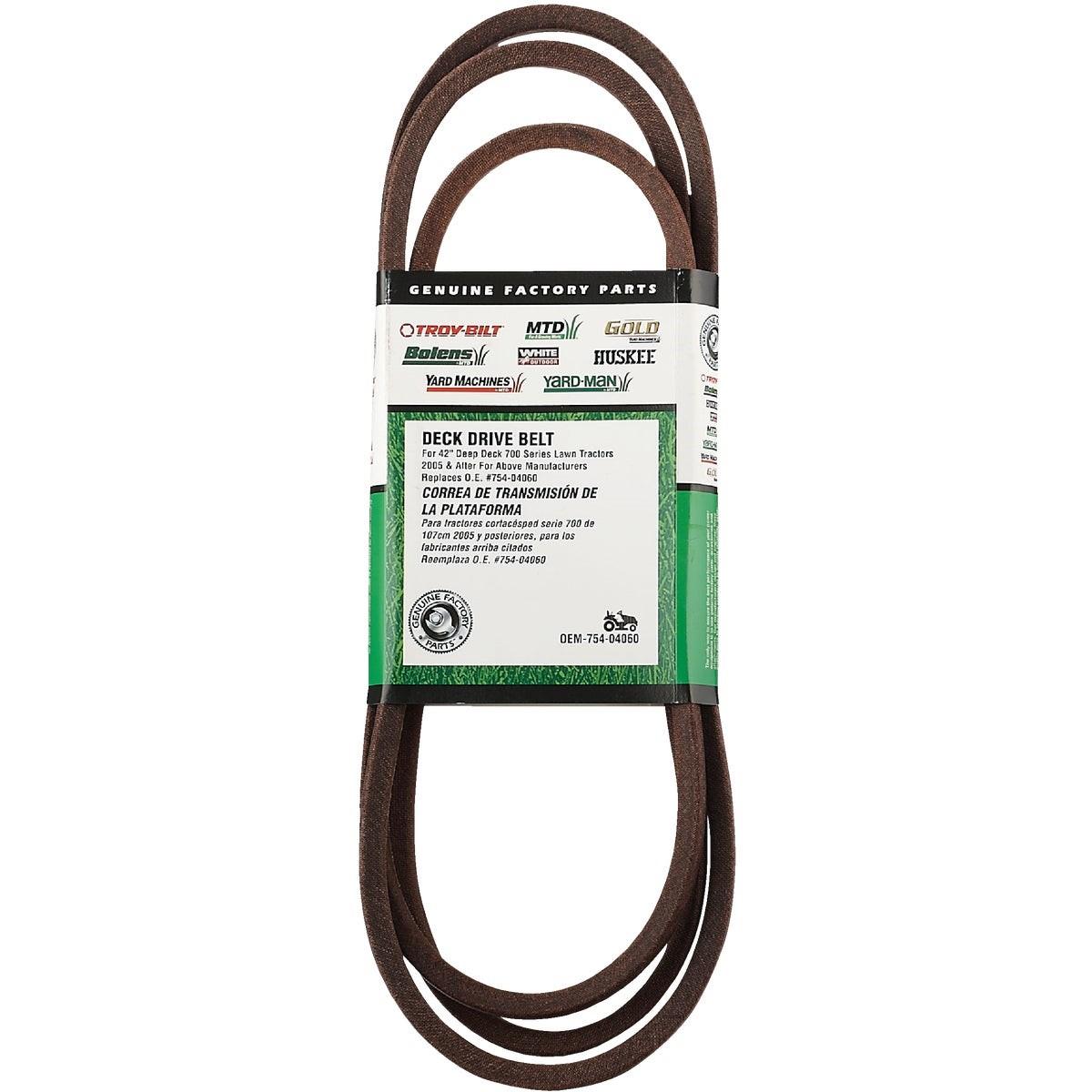

The ARNOLD 490-501-Y044 is a deck drive belt designed as a direct replacement for 42-inch deck 700 Series Troy-Bilt lawn tractors. It runs from the deck pulley to the lower engine pulley, transferring power from the engine to the cutting deck. This belt is the correct replacement for Troy-Bilt 700 Series tractors built in 2005 and after. Installation is handled by small engine technicians or experienced outdoor power equipment mechanics. At 0.794 pounds, it is a lightweight but essential drivetrain component that keeps the mowing deck operating at the correct speed and tension.

This deck drive belt fits 42-inch deep decks on Troy-Bilt 700 Series lawn tractors manufactured in 2005 and after. It is intended for residential lawn tractor applications where the original deck belt has stretched, cracked, or broken. The belt connects the deck pulley to the lower engine pulley and must be routed correctly around all idler and deck pulleys during installation to ensure proper mower deck engagement.

Key Features

• Direct replacement belt for 42-inch deck Troy-Bilt 700 Series lawn tractors
• Fits 2005 and later model year tractors in the 700 Series
• Routes from deck pulley to lower engine pulley for proper power transfer
• Lightweight construction at 0.794 pounds for easy handling during installation
• Sold individually as a single belt replacement unit

Compatibility

Fits 42-inch deep deck 700 Series Troy-Bilt lawn tractors, 2005 and after. Replaces the original deck drive belt on these machines, running from the deck pulley to the lower engine pulley.

Installation Notes

Disconnect the spark plug wire before beginning any belt replacement to prevent accidental engine startup. Remove the mower deck from the tractor per the manufacturer service procedure before attempting to route the new belt. Ensure the belt is correctly seated in all pulley grooves and around all idler pulleys before reattaching the deck and testing engagement. Consult the tractor service manual for the correct belt routing diagram specific to the 700 Series deck configuration.

Technical Specifications

• Deck Size: 42 inches
• Weight: 0.794 pounds
• Sold As: Each
• UPC: 00037049968404

Standard Information

• Brand: ARNOLD
• Manufacturer Part Number: 490-501-Y044
