Armstrong Pumps 818504-000K Bearing Assembly REPLACEMENT 816032MF-000

Product Description

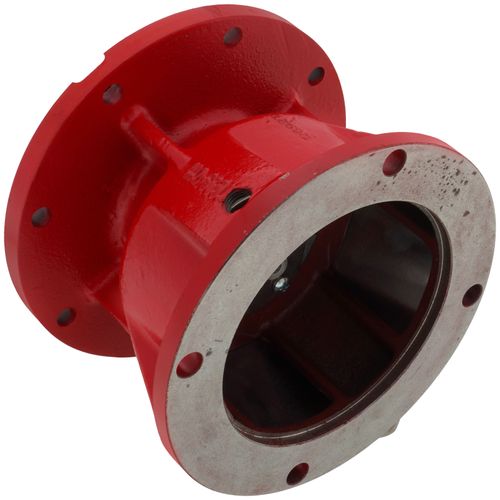

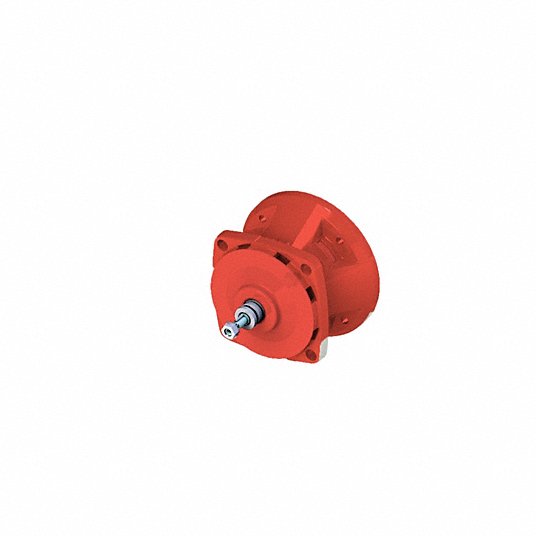

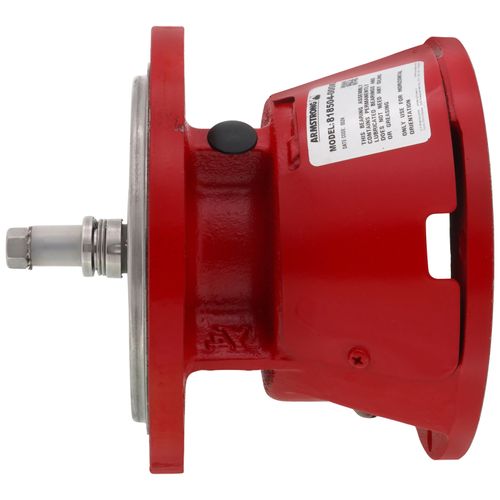

The ARMSTRONG PUMPS 818504-000K bearing assembly is designed for Series S, Series H, and Series 1050 pumps. These bearing assemblies combine the bearings and bearing housings into a single assembly, making them easy to replace and not requiring the entire pump to be disassembled for maintenance. It replaces obsolete P/N 816032MF-000.

• Replacement part for three-piece circulator pump
• Easy to replace
• Stainless steel shaft

Product Highlights

This bearing assembly is a direct-replacement for discontinued part number 816032MF-000.

Product Information

Standard Information

• Brand: ARMSTRONG PUMPS
• Manufacturer Part Number: 818504-000K
• Country of Origin: USA

Technical Specifications

• Type: Bearing Assembly
• Brand: ARMSTRONG PUMPS INC.
• MPN: 818504-000K
• Model: SBA-MF-5
• Pump Part Type: Bearing Assembly
• Shaft Size: 1/2"
• Pump Model Repaired: S55, S57 H51, H52, H53, H54 1050-1B, 1050-1.25B, 1050-1.5B, 1050-2B
• Replaces: 810126-505, 816032-000, 816032MF-000
• Alias: 818504000K
• Compatible with Brand: Armstrong
• Compatible with Series: 1050-1, 1050-1.25, 1050-1.5, 1050-2, H-51, H-52, H-53, H-54, S-55, S-57
• Compatible with Manufacturer Model Number: 106284MF-132, 106284MF-133, 106284MF-136A, 106284MF-137A, 106285MF-132, 106285MF-133, 106285MF-136A, 106285MF-137A, 110119MF-100, 110119MF-101, 110119MF-102, 110119MF-103, 116431MF-132, 116432MF-133, 116435MF-132, 116436MF-133, 116439MF-132, 116440MF-133, 116443MF-136A, 116444MF-137A, 116451MF-132, 116452MF-133, 116455MF-136A, 116456MF-137A
• Includes: (2) Gaskets
• Compatible with Pump Type: In-Line Circulating Pumps
• Overall Diameter: 6.81 in
• Product Type: Bearing Assemblies
• Country of Origin: USA (subject to change)
