Armstrong Pumps 816305-328K Impeller Assembly Nf S45 3.875 inches Replaces 116305-328, 816305-328

Product Description

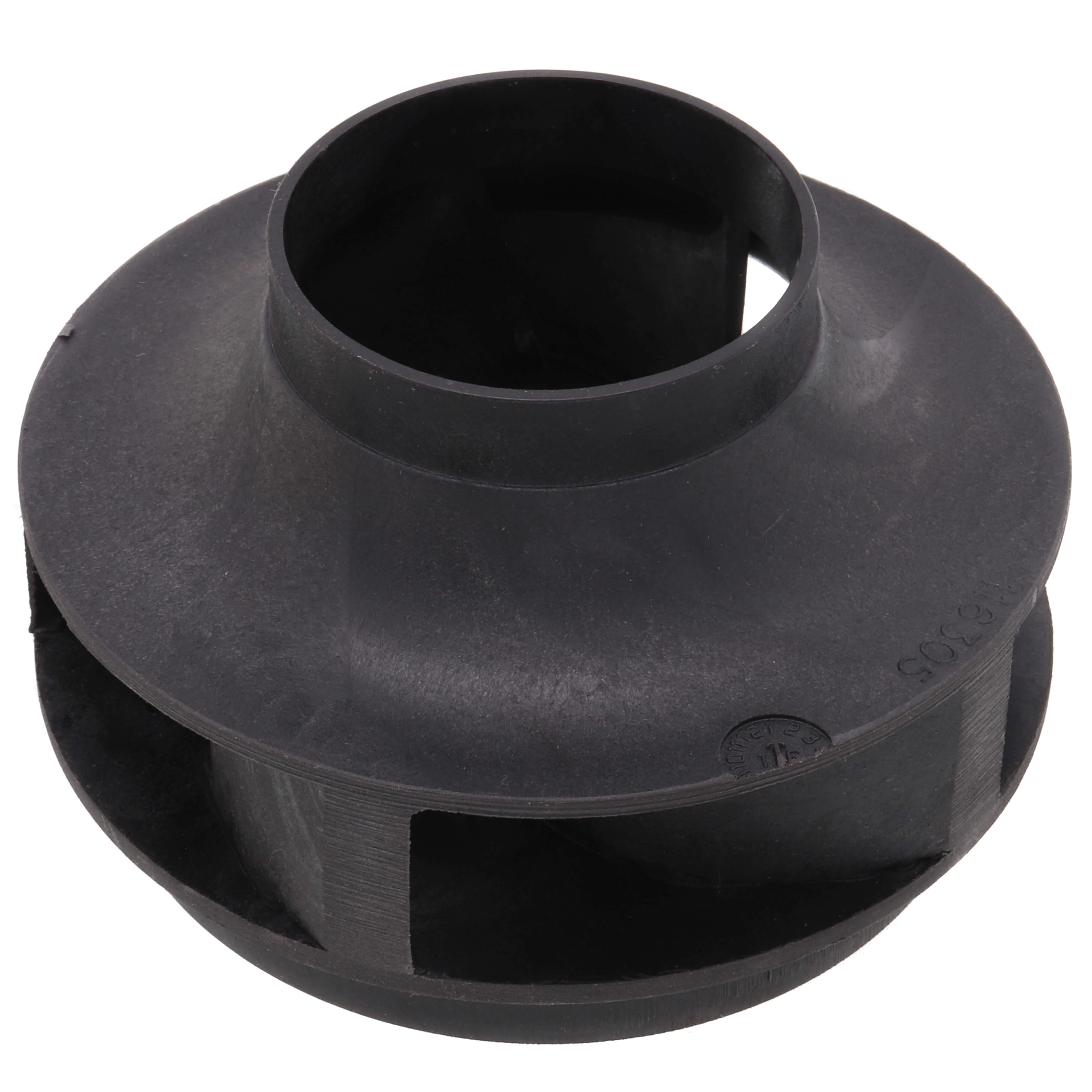

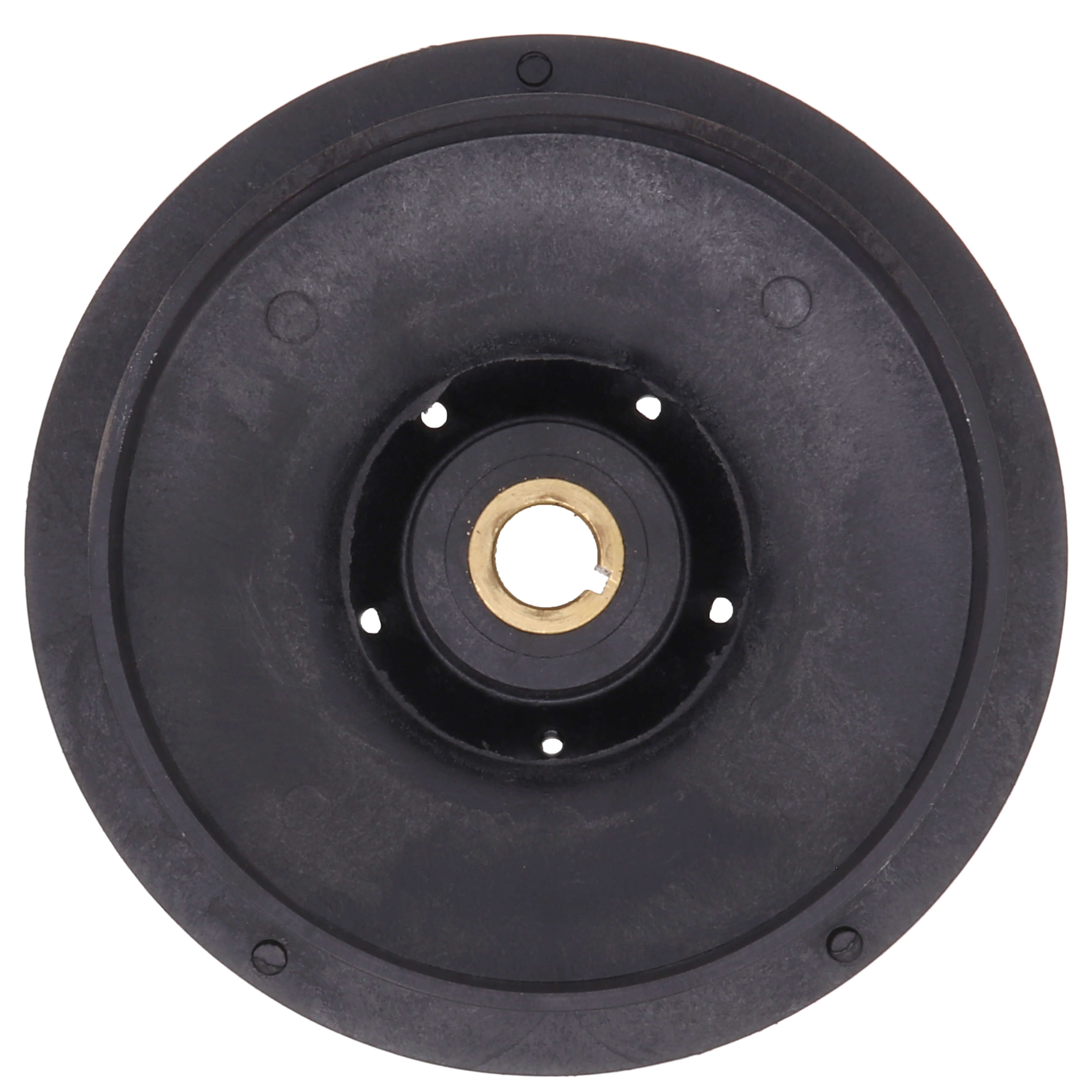

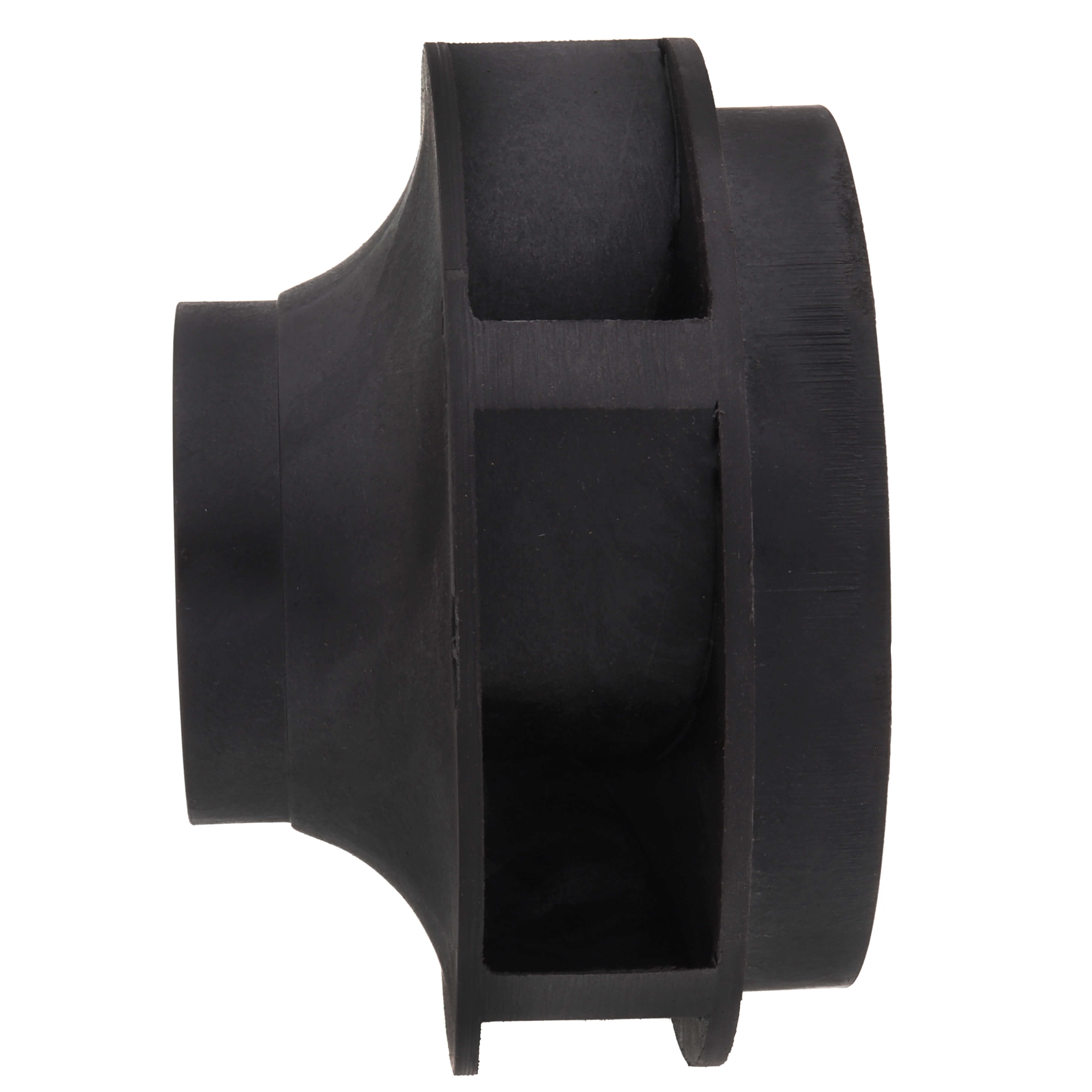

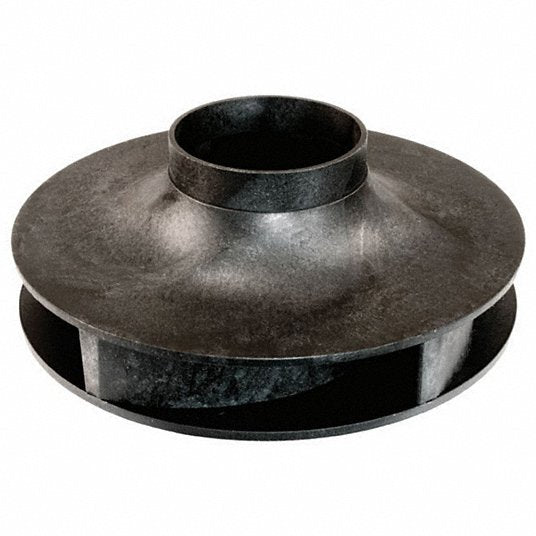

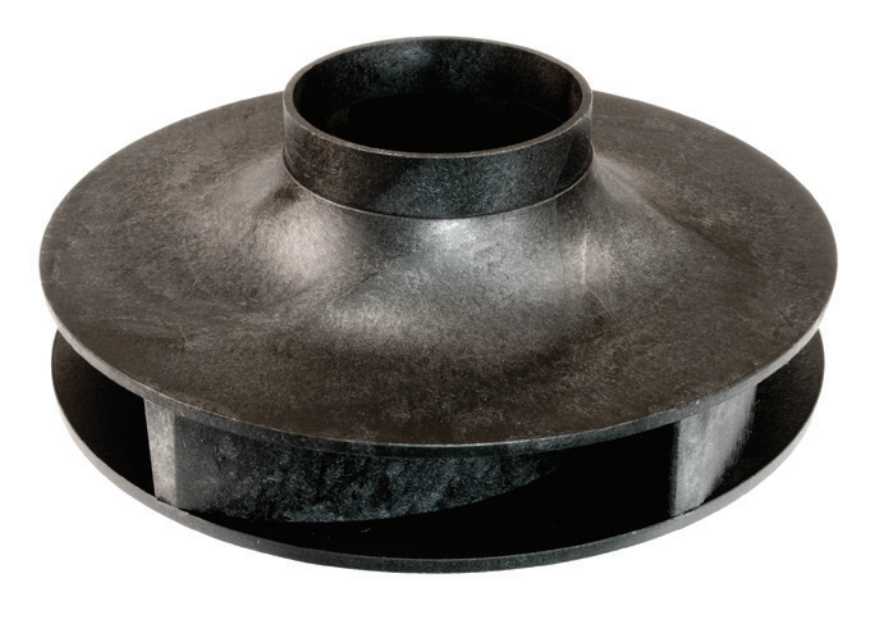

The ARMSTRONG PUMPS 816305-328K Impeller Assembly Nf S45 is a non-ferrous impeller designed for S-45 series in-line circulating pumps. This plastic impeller has an overall diameter of 3.875 inches and is compatible with models such as 174036MF-113 and 174036MF-143. It is manufactured using an injection molding process, ensuring dimensional accuracy for efficient fluid movement. This kit includes a gasket and seal kit for comprehensive replacement.

• Non-ferrous plastic impeller with a 3.875 inch diameter.
• Designed for S-45 series in-line circulating pumps.
• Includes gasket and seal kit for complete installation.

Product Highlights

Injection-molded Noryl construction ensures dimensional accuracy and reduced axial loading on the shaft.

Product Information

Standard Information

• Brand: ARMSTRONG PUMPS
• Manufacturer Part Number: 816305-328K
• Country of Origin: United States

Technical Specifications

• Accessories: 818404-000K, 106050-000
• Compatible Models: 106284MF-136A, 174036MF-113, 174036MF-143
• Includes: Gasket, Seal Kit
• Impeller Diameter: 3.875 inches
• Impeller Material: Plastic
• Compatible Brand: Armstrong
• Compatible Series: S-45
• Compatible Pump Type: In-Line Circulating Pumps
• Compatible Series Family: S&H
• Compatible Grainger Part Number: 788VA7, 788VA8
• Country of Origin: United States
• Replaces Part Numbers: 116305-328, 816305-328
• UNSPSC: 40151504
• Manufacturing Process: Injection Molding
