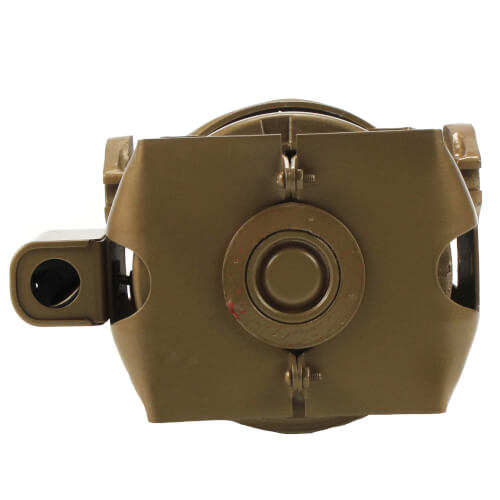

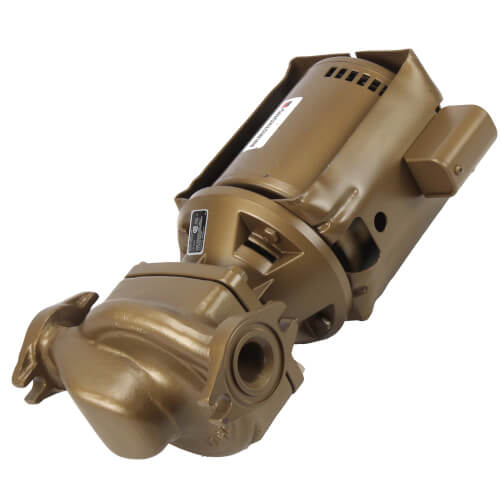

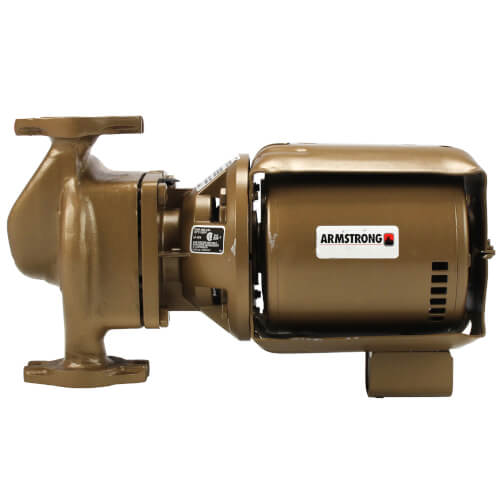

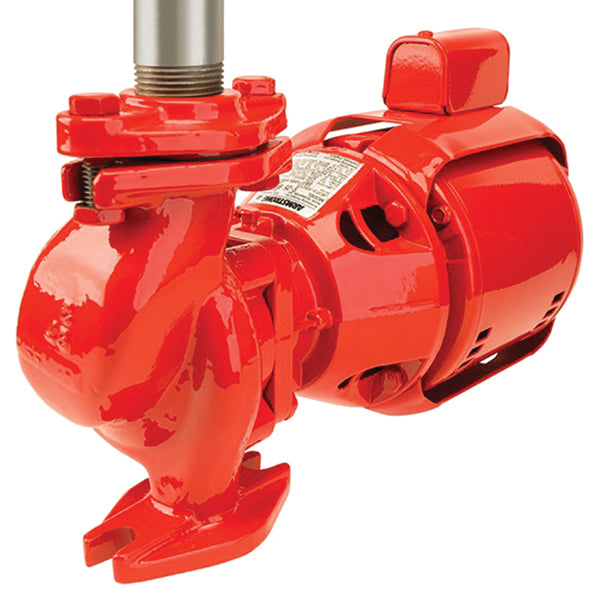

Armstrong 174035MF-143 H-41 Bronze In-Line Circulator Pump 115 VAC 1/6 HP

Product Description

The Armstrong 174035MF-143 H-41 Bronze In-Line Circulator Pump, known for its reliability, is essential for HVAC professionals. Capable of circulating water in heating and cooling systems, this pump suits various domestic and commercial applications.

• Lead-free design ensures safety
• Modular construction for easy maintenance
• High durability with bronze material

Product Highlights

This circulator pump is designed for hydronic heating, cooling systems, and domestic water systems. It features a resilient mounted motor, stainless steel shaft, and a sintered silicon carbide seal face for enhanced durability.

Product Information

Standard Information

• Brand: Armstrong
• Model: H-41
• Series: H

Technical Specifications

• Connection Size: 1 in NPT
• Dimension: 15-1/4 in W x 13-1/4 in H
• Flow Rate: 22 gpm
• Frequency Rating: 60 Hz
• HP Rating: 1/6 hp
• Material: Bronze
• Maximum Feet of Head: 17-1/2 ft
• Mounting: Resilient
• Phase: 1 ph
• Pressure Rating: 175 psig
• RPM: 1800 rpm
• Temperature Rating: 225 deg F
• Type: In-Line
• Voltage Rating: 115 VAC
• Standards/Certifications: NSF 372 certified
