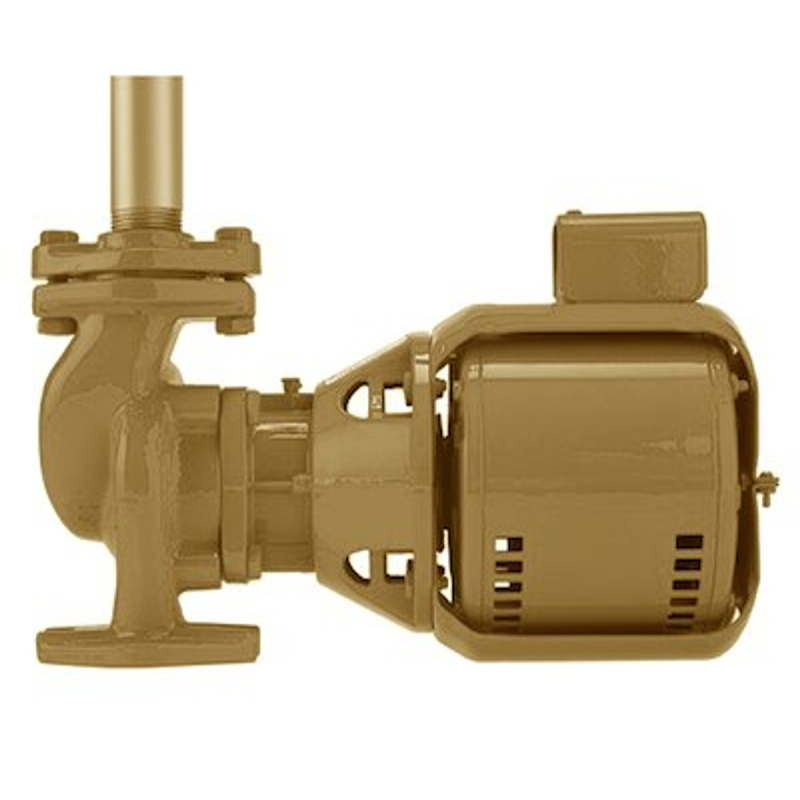

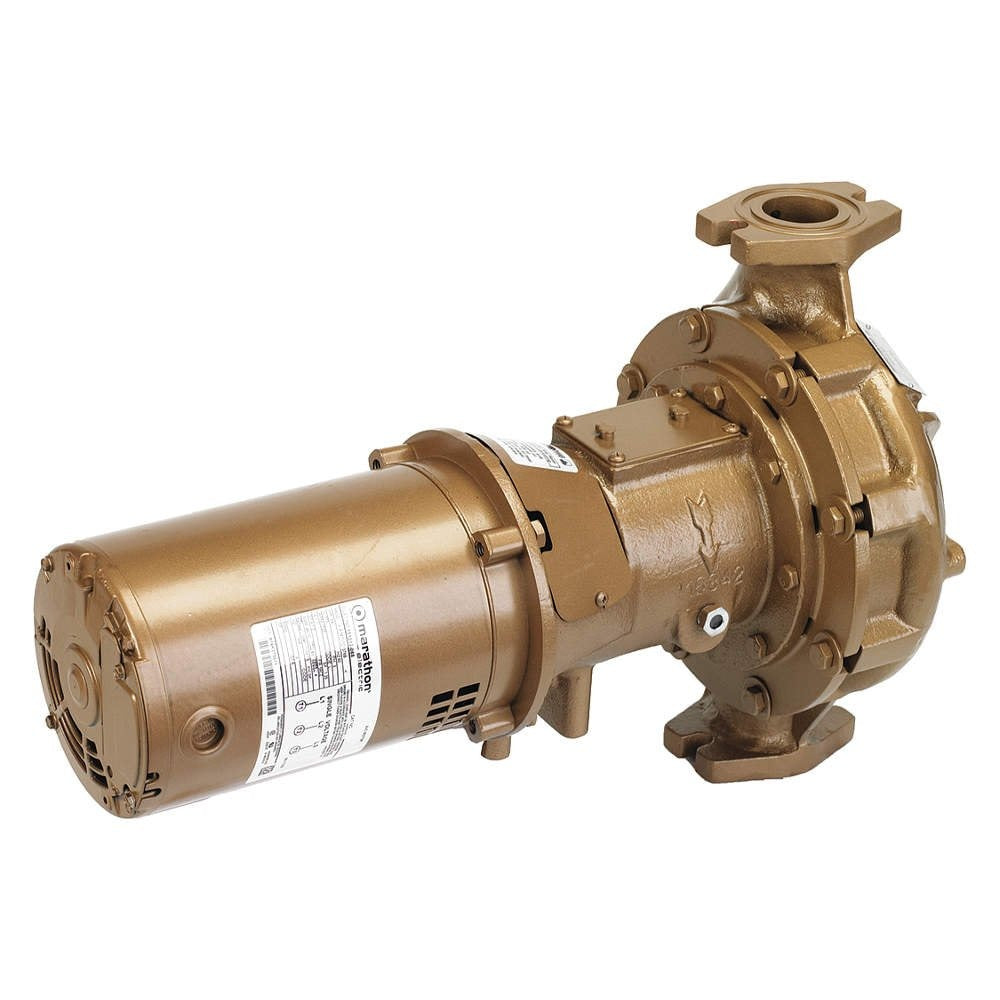

Armstrong Pumps 174034MF-043 H-32 Ab Bronze In-Line Pump 1/6 hp (1 in to 1-1/2 in) 174034LF-043

Product Description

Armstrong Pumps 174034MF-043 is a hydronic circulating pump designed for hot water circulation and HVAC systems. The 1/6 hp, 115 V AC single-phase in-line circulator features NPT/flange connections for 1 in to 1-1/2 in piping, a direct-drive motor (1,800 RPM, 4.40 A) and a maintenance-free mechanical seal. Constructed with a cast iron housing, 30% glass-filled Noryl impeller and stainless steel shaft, it is NSF-372 compliant and rated to 225°F and 175 psi. Face-to-face dimension is 8.5 in; flange gaskets included.

• 1/6 hp, 115 V AC single-phase motor; 1,800 RPM, 4.40 A; single speed direct drive
• In-line NPT/flange connections for 1 in to 1-1/2 in piping; flange/union not included; includes flange gaskets
• Cast iron housing, 30% glass-filled Noryl impeller, stainless steel shaft, maintenance-free mechanical seal; NSF-372 compliant; max 225°F and 175 psi

Product Highlights

Hydronic in-line circulator, 1/6 hp, 115 V, maintenance-free seal, 1 to 1-1/2 in connections

Product Information

Standard Information

• Brand: ARMSTRONG PUMPS
• Manufacturer Part Number: 174034MF-043
• Country of Origin: United States
