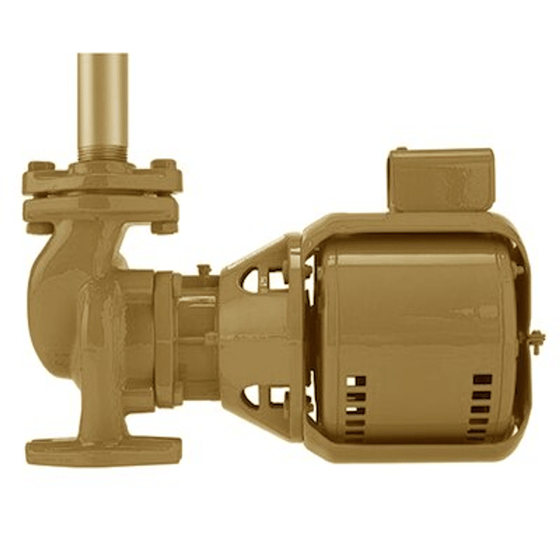

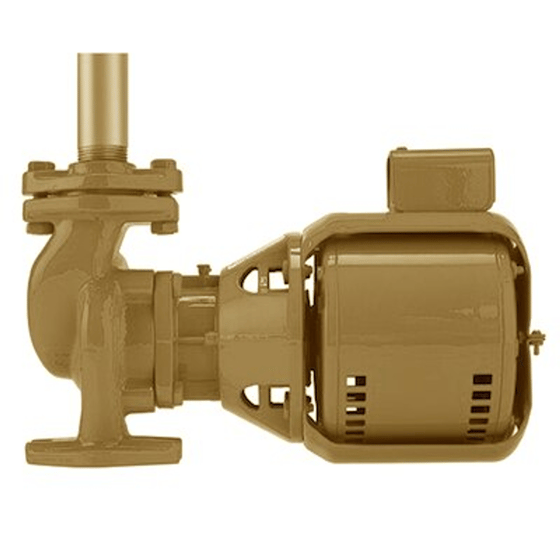

Armstrong Pumps 174033MF-043 S-35 AB Bronze In-Line Pump 1/6 HP 2 Inch Flange

Product Description

The Armstrong Pumps 174033MF-043 S-35 AB Bronze In-Line Pump is a 1/6 HP circulator designed for hydronic heating and cooling, domestic water systems, multi-stage zoning, and general industrial service. Operating at 115V, 60 Hz, single phase, this lead-free bronze pump features a 2-inch flange. It delivers a maximum flow of 75 GPM and a maximum head of 11 feet, with a fluid temperature range up to 225°F. Its robust three-piece design ensures durability and ease of service.

• Standard three-piece design with a radially-split body for in-line servicing.
• Oversized shaft and centrifugal impeller ensure efficient water delivery.
• Positive mechanical seal and modular construction for durability and ease of maintenance.

Product Highlights

Durable, lead-free bronze in-line circulator pump with a maintenance-free design for hydronic and domestic water systems.

Product Information

Standard Information

• Brand: ARMSTRONG PUMPS
• Manufacturer Part Number: 174033MF-043

Technical Specifications

• Type: Pump
• Hertz: 60
• Phase: 1
• Voltage: 115V
• Material: Lead Free Bronze
• Flange Size: 2"
• Horse Power: 1/6
• Max Head: 11 Ft
• Max Flow: 75 GPM
• Fluid Temperature Range: 225°F
• Series: S-35AB
• Model: S-35
• Application: Domestic water systems
• Speed: 1800 RPM
• Design: Three piece
• Motor Type: ODP
• Impeller Material: Non-ferrous
• Thermal Overload Protection: Yes
• Maximum Operating Pressure: 125 psi
