Armstrong Pumps 174031MF-043 S-25 AB Bronze In-Line Pump 1/12 HP Without Flanges

Brand: ARMSTRONG PUMPS
SKU: 174031MF-043
Availability: Out Of Stock
$868.48
$868.48
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

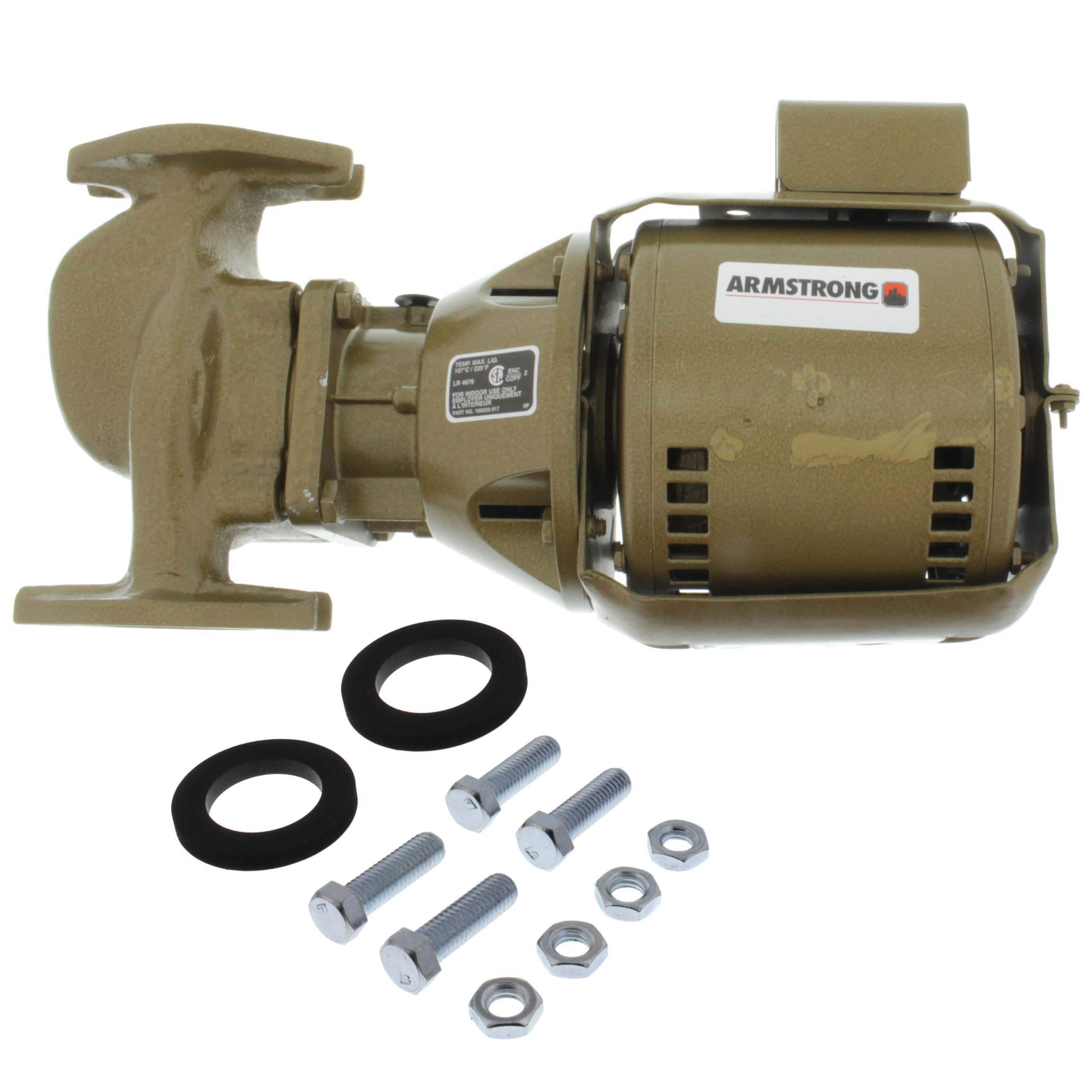

The ARMSTRONG PUMPS 174031MF-043 S-25 AB Bronze In-Line Circulator is a 1/12 HP all-bronze pump suitable for hydronic heating and cooling, domestic water systems, multi-stage zoning, and general industrial service. This Series S circulator features a standard three-piece design with a radially-split body, oversized shaft, centrifugal impeller, and modular construction, ensuring durability and ease of service. It is a trusted product for HVAC professionals.

  • Radially-split body allows in-line servicing without disconnecting pipes.
  • Oversized shaft made from special alloy steel for enhanced durability.
  • Positive mechanical seal with ARMseal construction provides noise-free, trouble-free service.

Product Highlights

Lead-free, maintenance-free design with permanently lubricated ball bearings for extended, trouble-free operation.

Product Information

Standard Information

  • Brand: ARMSTRONG PUMPS
  • Manufacturer Part Number: 174031MF-043
  • Country of Origin: United States
Technical Specifications
Type
Centrifugal Pump, In-line circulator
Frequency
60 Hz
Phase
1
Voltage
115V
Body Material
Lead free bronze
Lead Free
Yes
Horse Power
1/12
Max Head (Ft)
8
Max Flow (GPM)
32
Flow Range (GPM)
0-32
Fluid Temperature Range
225°F
Country of Origin
United States
Series
S & H
Model
S-25
Speed
1800 RPM
Design
Three piece
Motor Type
ODP
Volute Material
Lead free bronze
Impeller Material
Non-ferrous
Thermal Overload Protection
Yes
Maximum Operating Conditions
125 psi at 225°F
