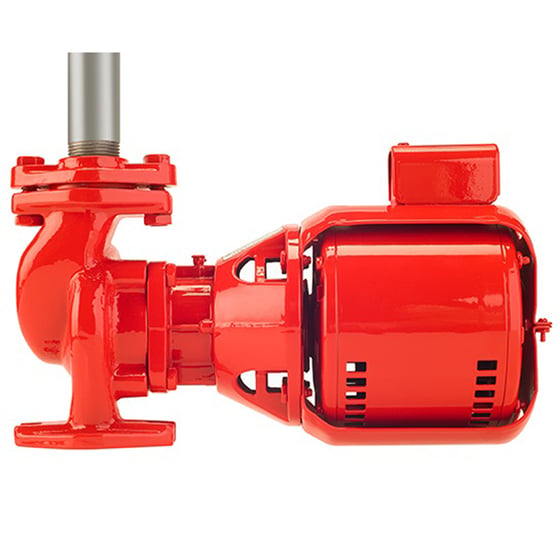

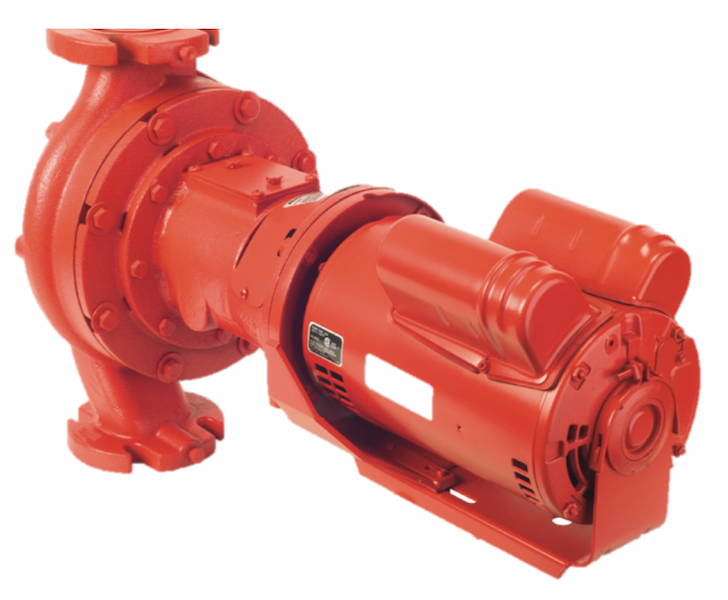

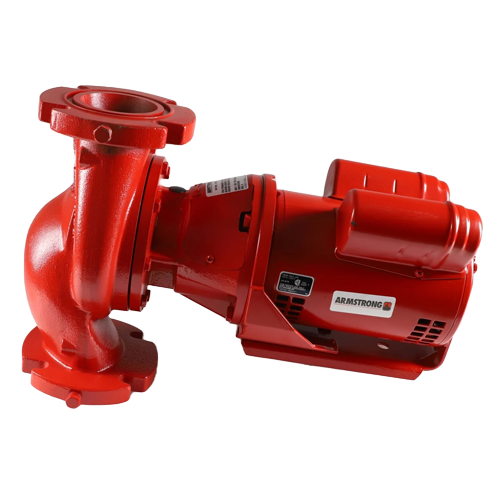

Armstrong Pumps 106284MF-132 S-55-1 BF Cast Iron In-Line Pump 1/2 HP 3 Inch Flange Replaces 106284-132

Product Description

The Armstrong Pumps 106284MF-132 is a 1/2 HP bronze-fitted cast iron in-line circulator pump designed for hydronic heating and cooling systems, multi-stage zoning, and general industrial service. This Series S pump operates on 115/230V, 60Hz, single-phase power, delivering a maximum flow of 122 GPM and a maximum head of 24 feet. It features a standard three-piece design with a radially-split body and modular construction, suitable for fluid temperatures up to 225°F. It is not intended for potable water systems.

• Standard three-piece design with modular construction for ease of serviceability.
• Radially-split body allows in-line servicing without disconnecting pipes.
• Oversized shaft and centrifugal impeller ensure efficient water delivery.

Product Highlights

Durable, efficient, and easy-to-maintain circulator pump for various industrial and HVAC applications.

Product Information

Standard Information

• Brand: ARMSTRONG PUMPS
• Manufacturer Part Number: 106284MF-132
• Country of Origin: United States

Technical Specifications

• Pump Type: Circulating Pump, In-line
• Frequency: 60 Hz
• Phase: 1
• Input Voltage: 115/230V
• Housing Material: Cast Iron, Bronze Fitted
• Flange Size: 3 Inch
• Motor Horsepower: 1/2 HP
• Maximum Head: 24 ft
• Maximum Flow: 122 GPM
• Flow Range: 0-122 GPM
• Maximum Fluid Temperature: 225°F
• Series: S & H
• Model: S-55-1 BF
• Motor RPM: 1800 RPM
• Motor Enclosure: ODP
• Connection Type: NPT Flanged
• Volute Material: Cast Iron
• Impeller Material: Non-ferrous
• Thermal Overload Protection: Yes
• Maximum Operating Pressure: 148 psi
• Pump Class: Booster
• Mounting Type: In-Line
• Flanges Included: Yes
• Potable Water Use: No
