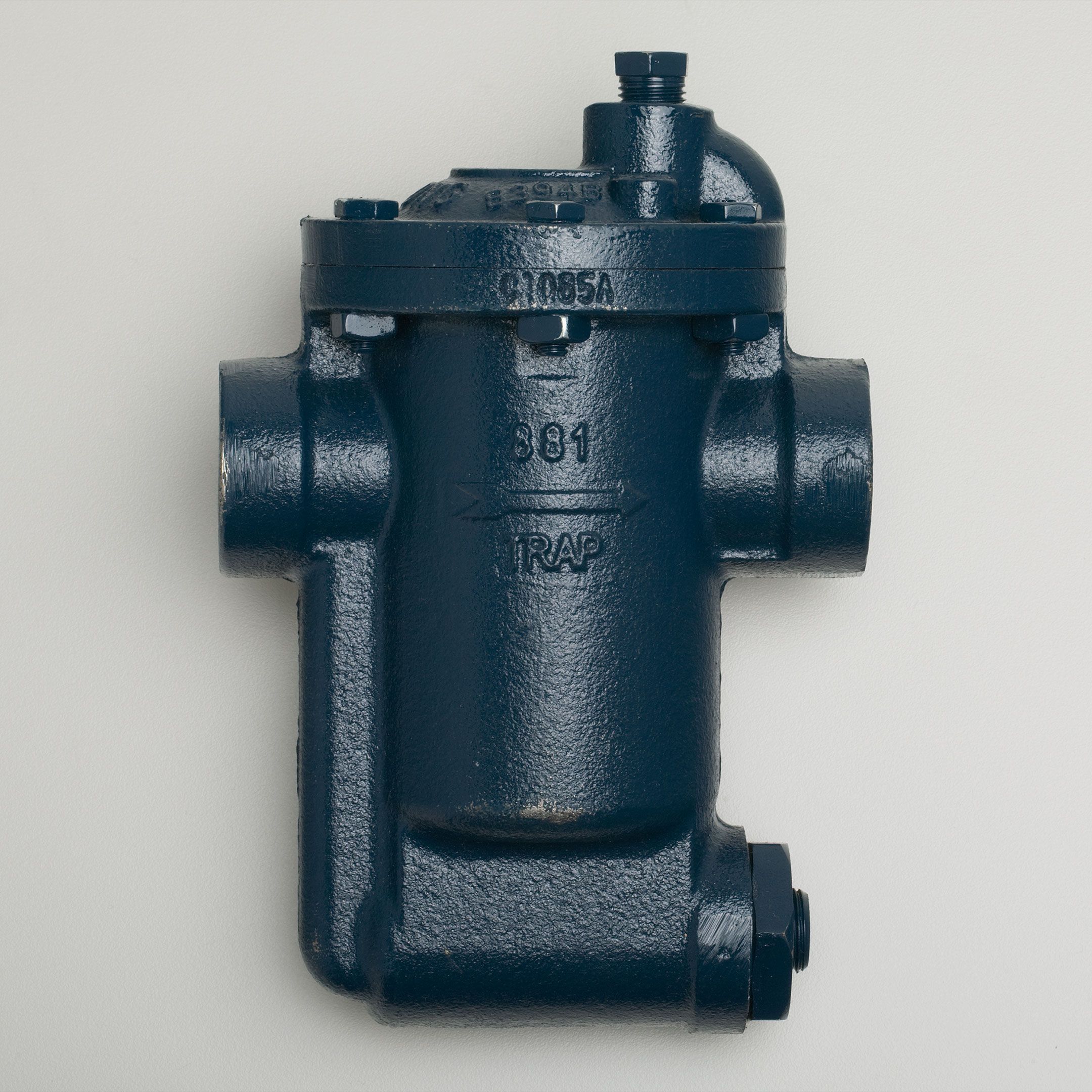

Armstrong International D501164 Armstrong 881 Inverted Bucket Trap 1/2 Inch NPT 30 PSI 3/16 Inch Orifice

Product Description

Explore the efficiency of the Armstrong International Inverted Bucket Steam Trap, model 881, equipped with a robust cast iron body and a half-inch NPT in-line horizontal connection. This model is designed for reliability in various industrial applications, featuring a maximum operating pressure of 30 PSI and a standard orifice size of 3/16 inches. It significantly enhances system performance by effectively handling loads and venting air rapidly.

• Optimal for high-volume needs with a capacity of 1,000 pounds per hour.
• Integrated strainer to protect against pipe scale and debris.
• Durable construction provides resistance to wear, corrosion, and hydronic shock.

Product Highlights

The Armstrong 881 model is preferred for its high operational efficiency and low maintenance needs. It operates effectively under light loads and back pressure, making it a versatile choice for heat exchange equipment.

Product Information

Standard Information

• Series: 880
• Weight: 6.00 pounds

Technical Specifications

• Body Material: Cast Iron
• Connection Size: 1/2 inch NPT
• Mounting: In-Line Horizontal
• Max Pressure: 30 psi
• Orifice Size: 3/16 inch
• Capacity: 1,000 pounds per hour
