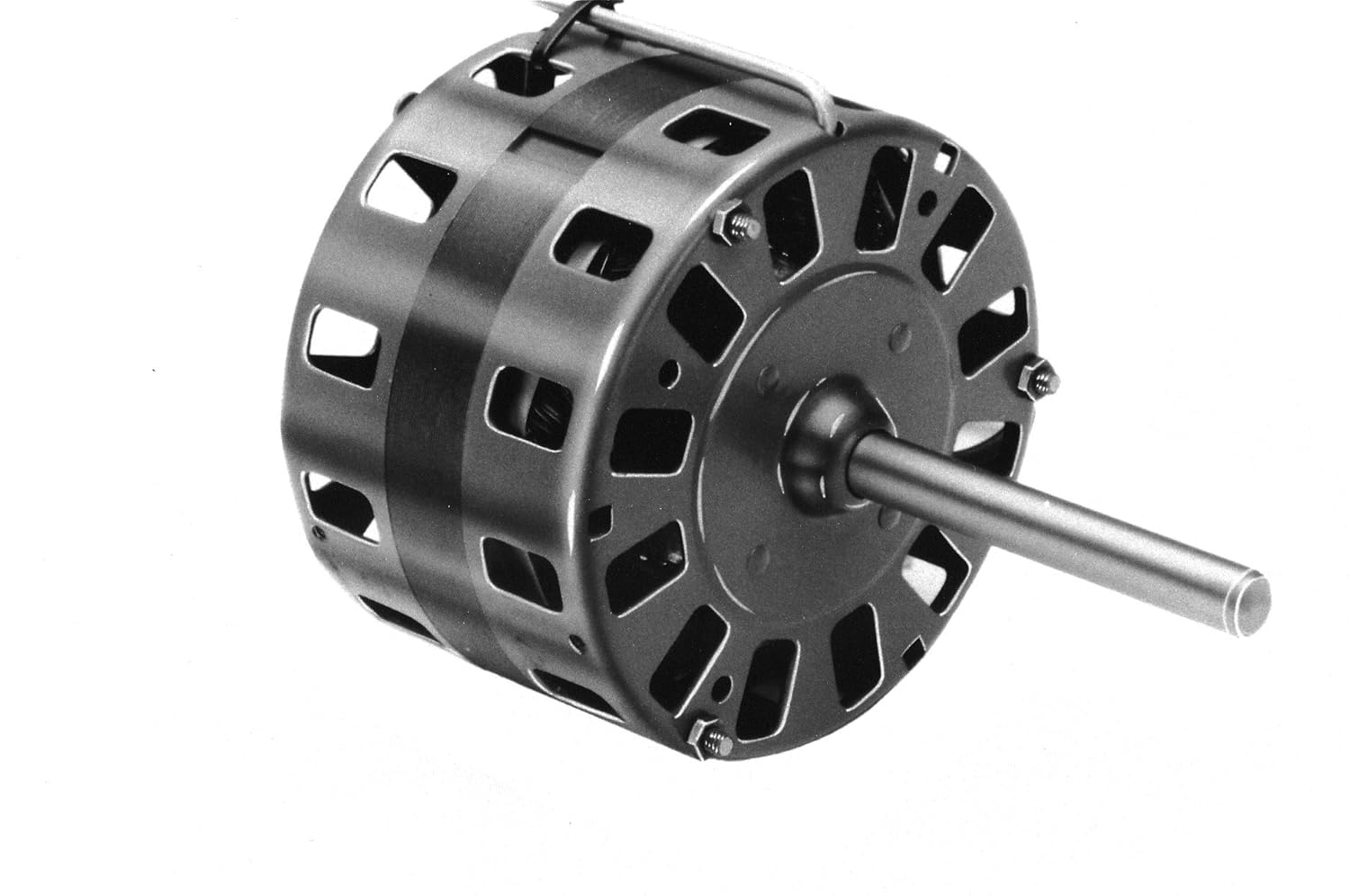

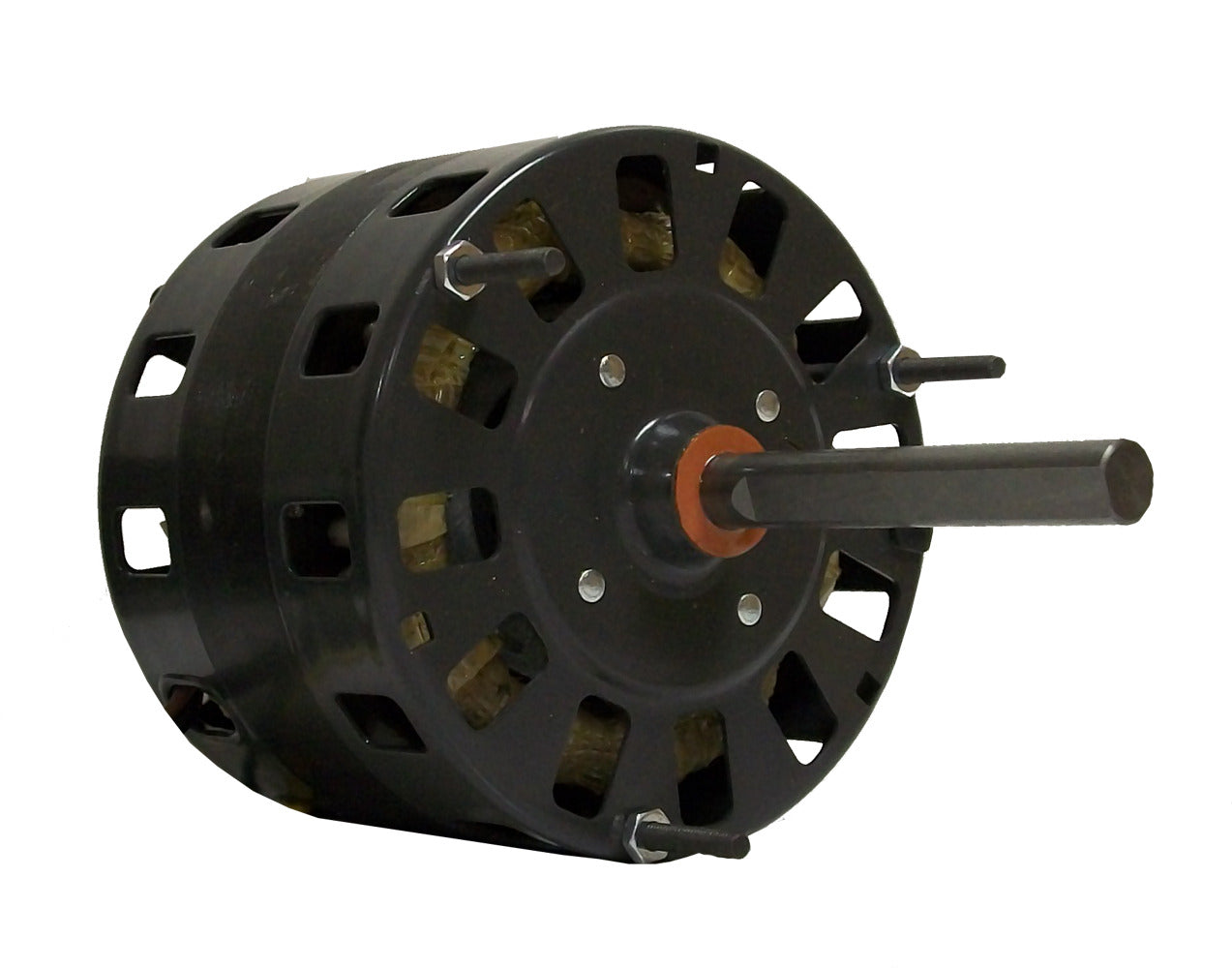

Fasco D262 5 Frame Open Ventilated Permanent Split Capacitor Direct Drive Blower Motor 1/5HP 925rpm 230V 60Hz 2.3 amps

Product Description

The Fasco D262 is a 5 frame open ventilated permanent split capacitor direct drive blower motor. This motor is designed for 230V, 60Hz, and delivers 1/5HP power at 925rpm with a 2.3 amp draw. It features sleeve bearings and reversible rotation.

• Thermally protected
• UL recognized
• Sleeve bearing

Product Highlights

This direct drive blower motor from Fasco is ideal for various industrial and residential applications. Its sleeve bearing construction ensures durability, while the reversible rotation offers flexibility in installation. The thermally protected design enhances safety during operation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D262
• Voltage: 230V
• Power: 1/5HP
• Speed: 925rpm

Technical Specifications

• Enclosure: Open Air Over
• Phase: Single
• Amperage: 2.3 amps
• Shaft Diameter: 0.5 inches
• Shaft Extension: 4 inches
• Bearing Type: Sleeve
• Ambient Temperature: 40°C
• Insulation Class: B
• Thermal Protection: Yes
• Frame Size: 42
• Mounting: Extended Studs
• Frequency: 60Hz
• Service Factor: 1
• Number of Speeds: 1
