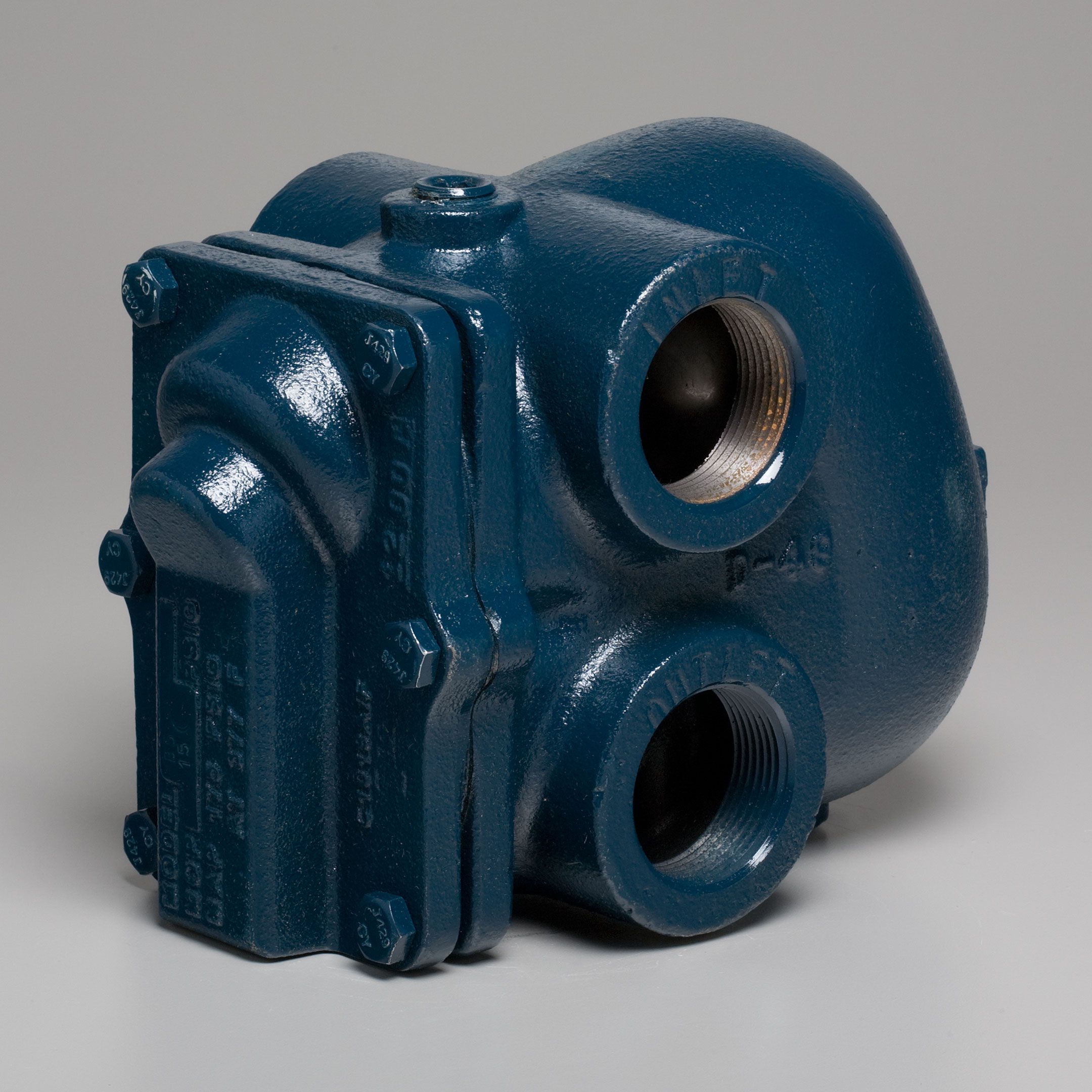

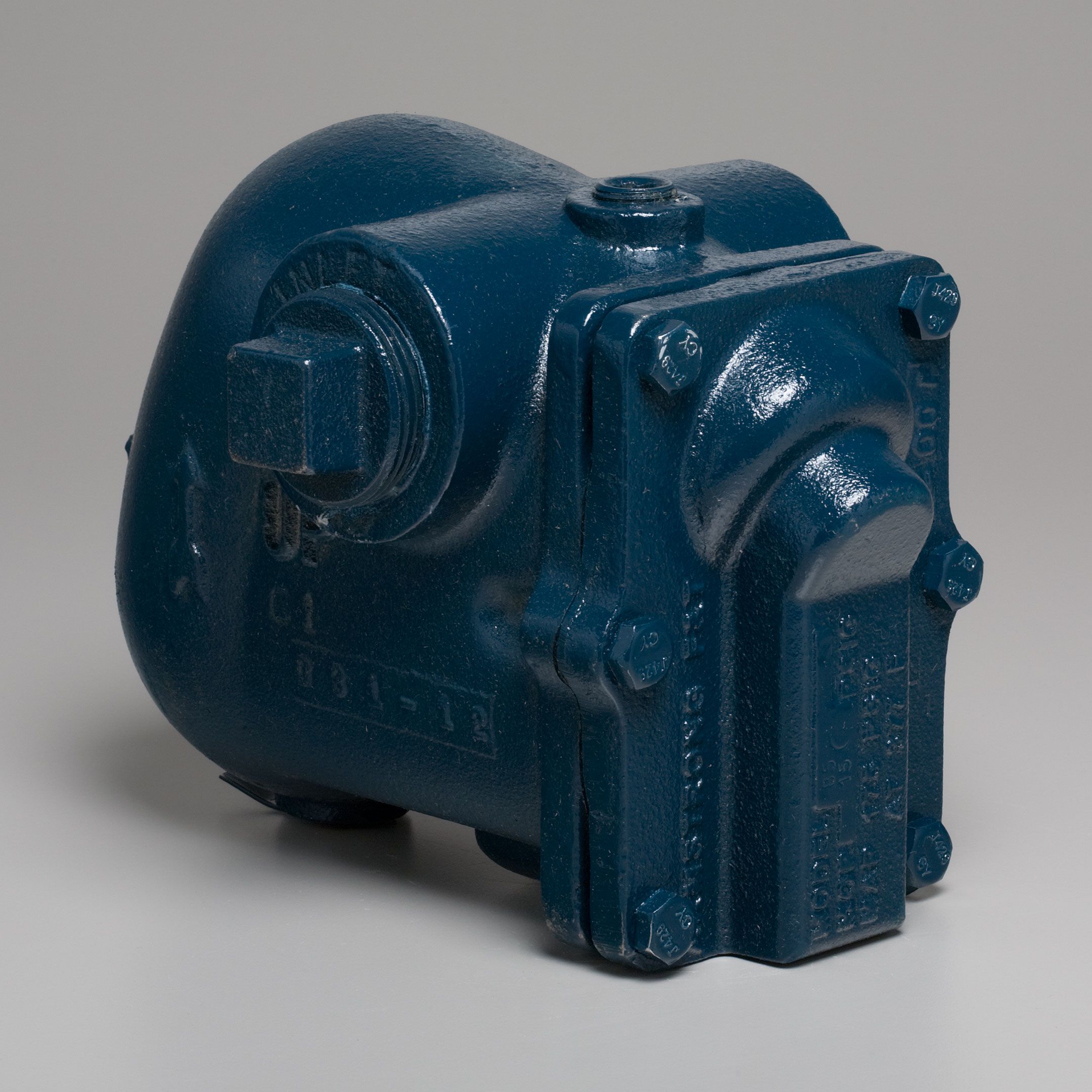

Armstrong International D1175-9 Model 15-B5 Float & Thermostatic Steam Trap - 1-1/4 Inch

Product Description

The Armstrong Float & Thermostatic (F&T) Steam Trap, model 15-B5, is crafted for enhanced performance in steam systems. Optimized for continuous drainage, this model is an excellent choice for applications involving low to medium pressure steam mains.

• Maximizes efficiency with a pressure-balanced thermostatic wafer
• Features cast iron construction for durability
• Handles capacities up to 1,380 pounds per hour

Product Highlights

Designed for reliable operation in heat exchange systems, this steam trap features quick venting of air and non-condensable gases, making it ideal for environments with modulating pressures. Its configuration allows both steam entry and condensate discharge from the same side, ensuring a compact and efficient setup.

Product Information

Standard Information

• Brand: Armstrong International
• Model: 15-B5
• Series: B Series
• Type: Float & Thermostic

Technical Specifications

• Body Material: Cast Iron
• Connection Size: 1-1/4 inches
• Max Pressure: 15 psi
• Weight: 12.31
