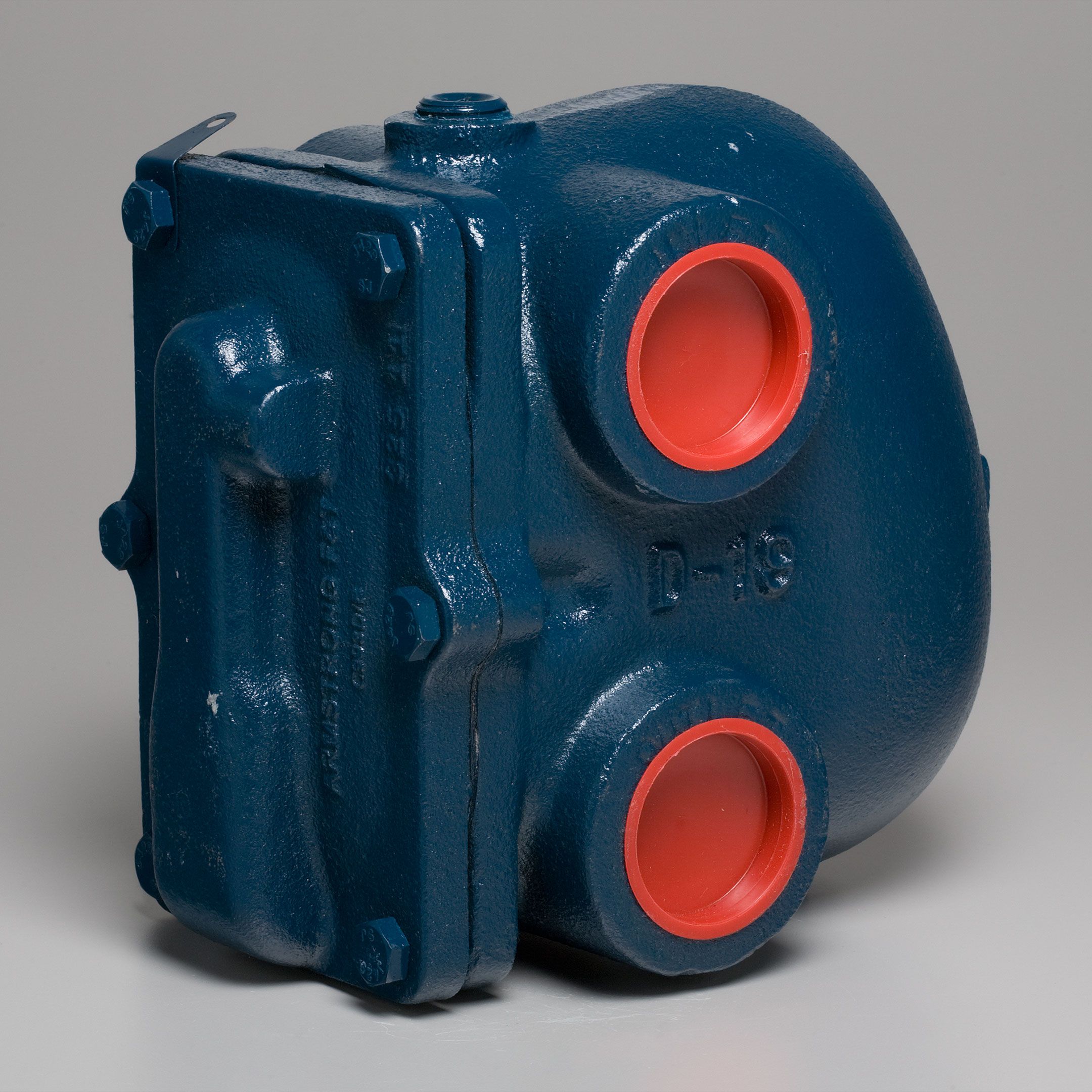

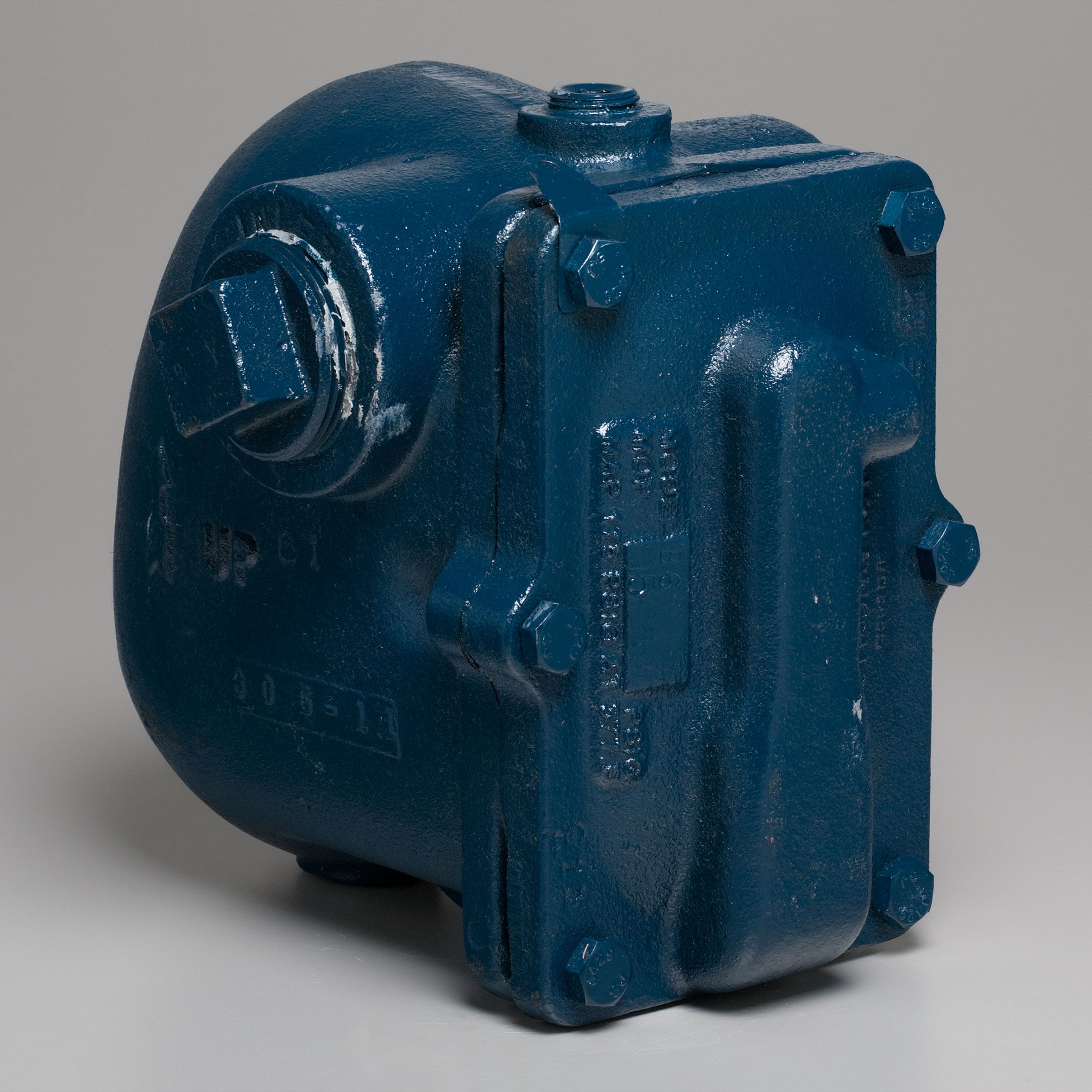

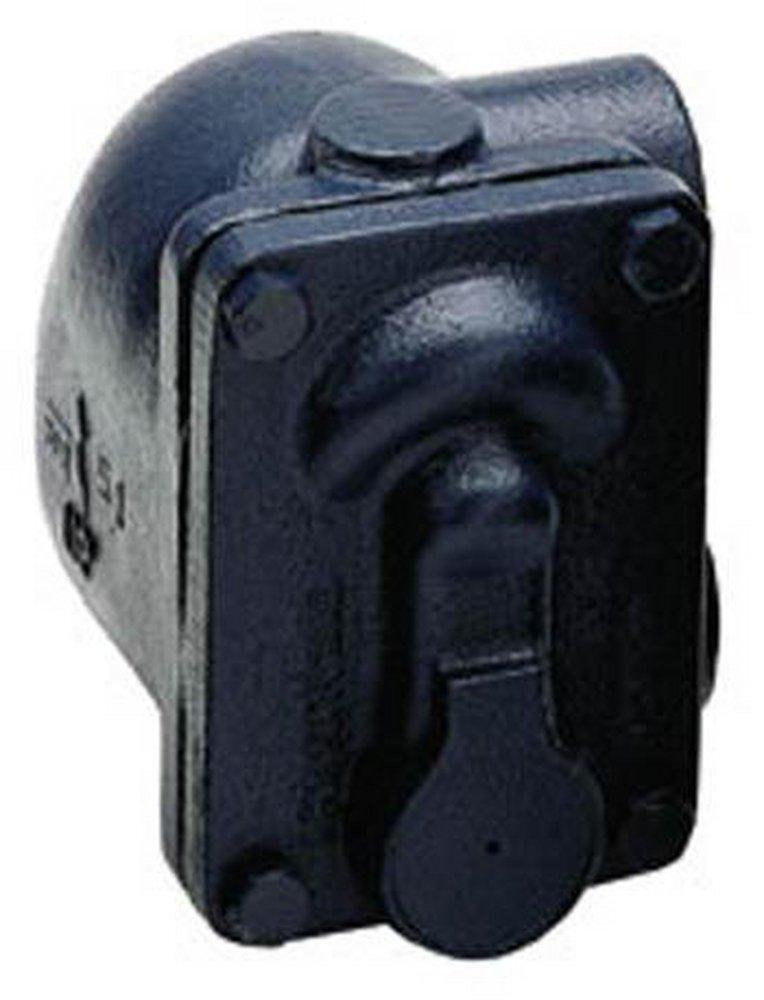

Armstrong International D1175-11 B Series 1-1/2 in. 192F 175 psi Steam Trap

Product Description

The Armstrong International B Series steam trap, model D1175-11, features a one and a half inch connection and operates at a maximum pressure of 15 psi. This float and thermostatic steam trap provides efficient drainage in heating applications.

• Suitable for pressures from vacuum to thirty psi (2 bar)
• Constructed from cast iron for horizontal mounting
• Capable of handling capacities up to 2,760 lb/hr

Product Highlights

This steam trap is designed for low to medium pressure steam mains, ensuring effective air venting and quick condensate discharge.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D1175-11

Technical Specifications

• Series: B Series
• Max Pressure: 15 psi
• Orifice Size: 1/2
• Body Material: Cast Iron
• Steam Trap Connection Size: 1-1/2 inches
• Steam Trap Type: Float & Thermostatic
• Weight: 19.00 lbs
• Steam Trap Mounting: H-Pattern, Same Side
