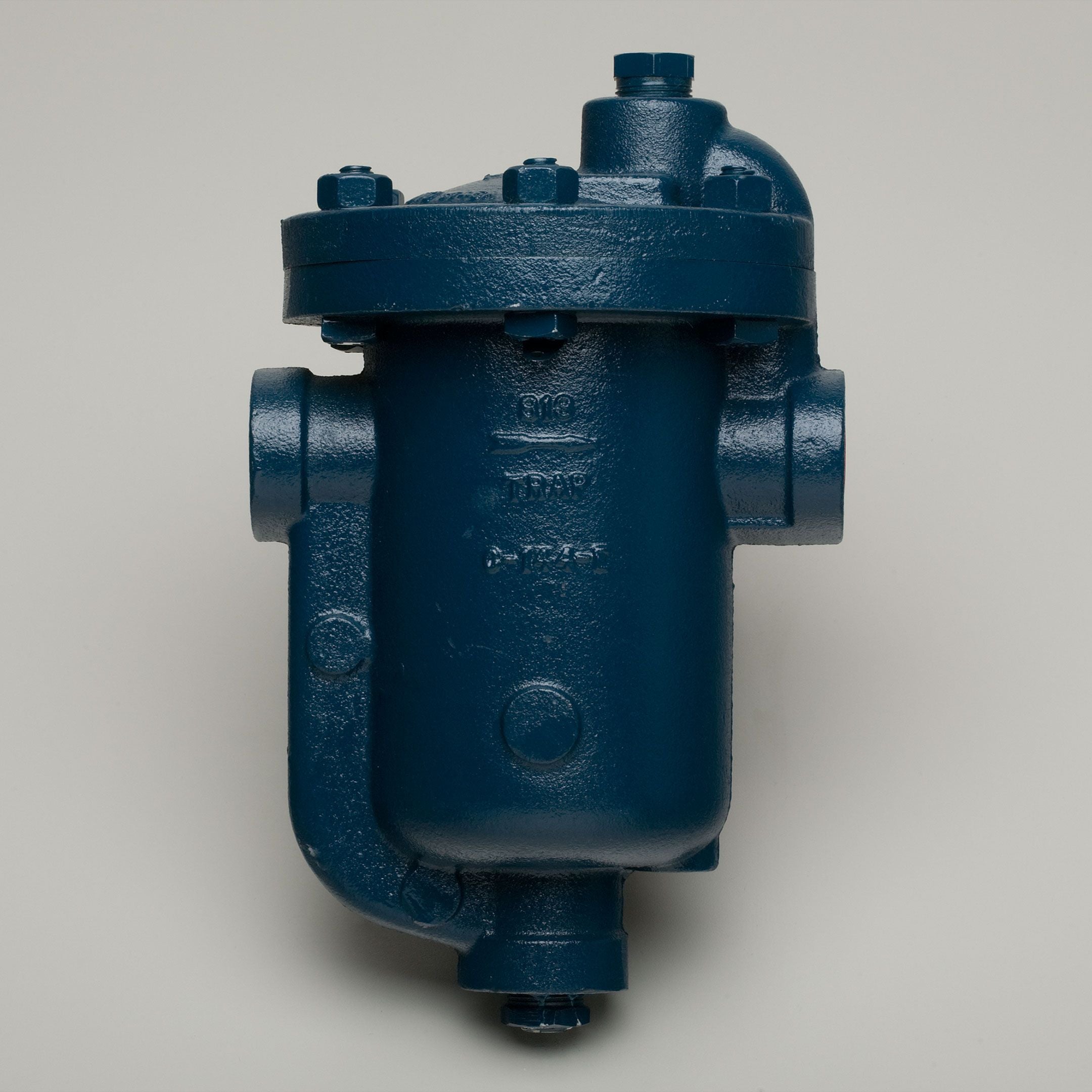

Armstrong International C5318-12 813 Inverted Bucket Trap 3/4 inch NPT 250 PSI

Product Description

The Armstrong International C5318-12, also known as model 813, is an inverted bucket steam trap designed for robust performance in steam management systems. Crafted from cast iron, this steam trap operates efficiently under a maximum pressure of 250 PSI, making it ideal for high-pressure applications.

• Supports 3/4 inch NPT in-line horizontal pipe connections.
• Features a maximum operating pressure of 250 PSI.
• Includes a thermic vent bucket option for enhanced air discharge.

Product Highlights

The 813 model is revered for its high resistance to wear, corrosion, and hydronic shock, ensuring long-term reliability in demanding environments.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5318-12
• Series: 800 Series

Technical Specifications

• Material: Cast Iron
• Connection Size: 3/4 inch NPT
• Max Pressure: 250 psi
• Orifice Size: 3/16 inch
• Mounting: In-Line Horizontal
• Weight: 27.50 pounds
