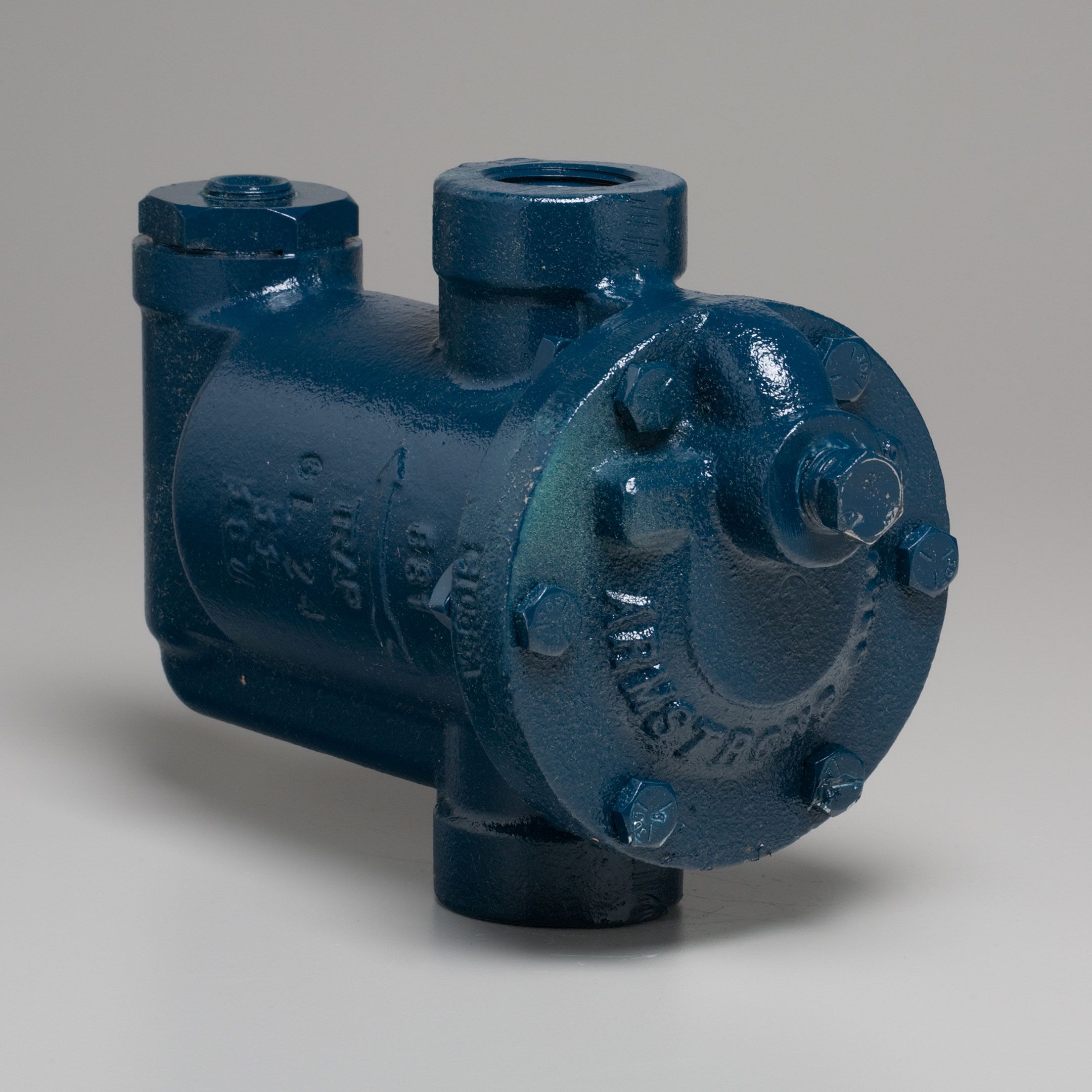

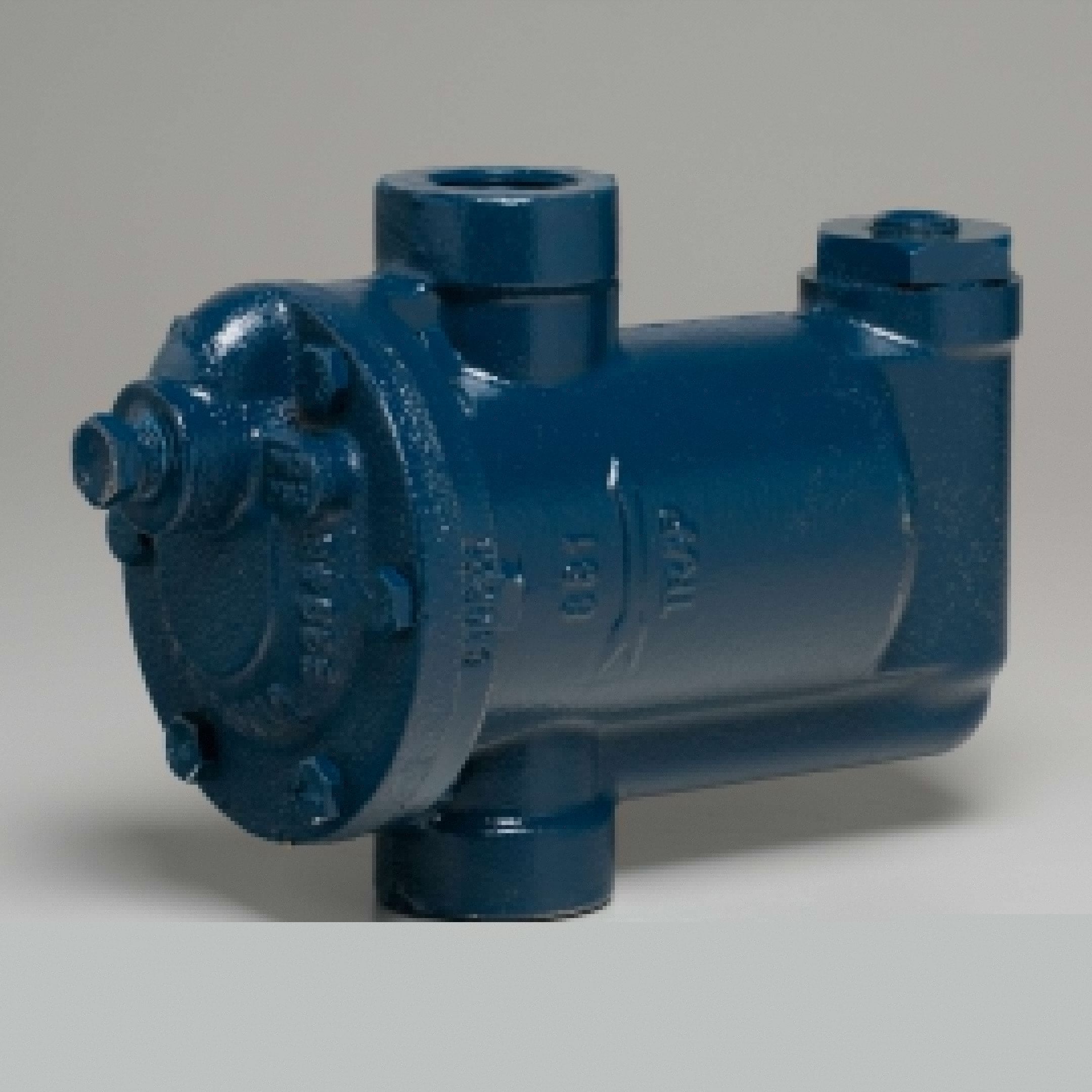

Armstrong International C5297-69 881 Inverted Bucket Steam Trap with Strainer 3/4 Inch NPT 30 PSI

Product Description

The Armstrong International Inverted Bucket Steam Trap, model 881, epitomizes efficiency and durability in steam system management. Built for horizontal in-line configuration, this device integrates a strainer and offers a 3/4 inch NPT connection, suitable for both commercial and industrial applications.

• Maximizes steam usage by allowing steam to enter from the bottom and condensate to discharge from the top.
• Featuring a robust cast iron construction, ensuring long-term resistance to wear and corrosion.
• Designed with a simple leverage system to handle pressures up to 30 psi and steam capacities up to 1000 pounds per hour.

Product Highlights

The model is part of the 880 series renowned for its high operational efficiency and easy maintenance.

Product Information

Standard Information

• Series: 880 Series
• Steam Trap Type: Inverted Bucket

Technical Specifications

• MPN: C5297-69
• Brand: Armstrong International
• Body Material: Cast Iron
• Connection Size: 3/4 inch NPT
• Maximum Pressure: 30 psi
• Orifice Size: 3/16 inch
• Mounting: In-Line Horizontal
• Weight: 6.05
