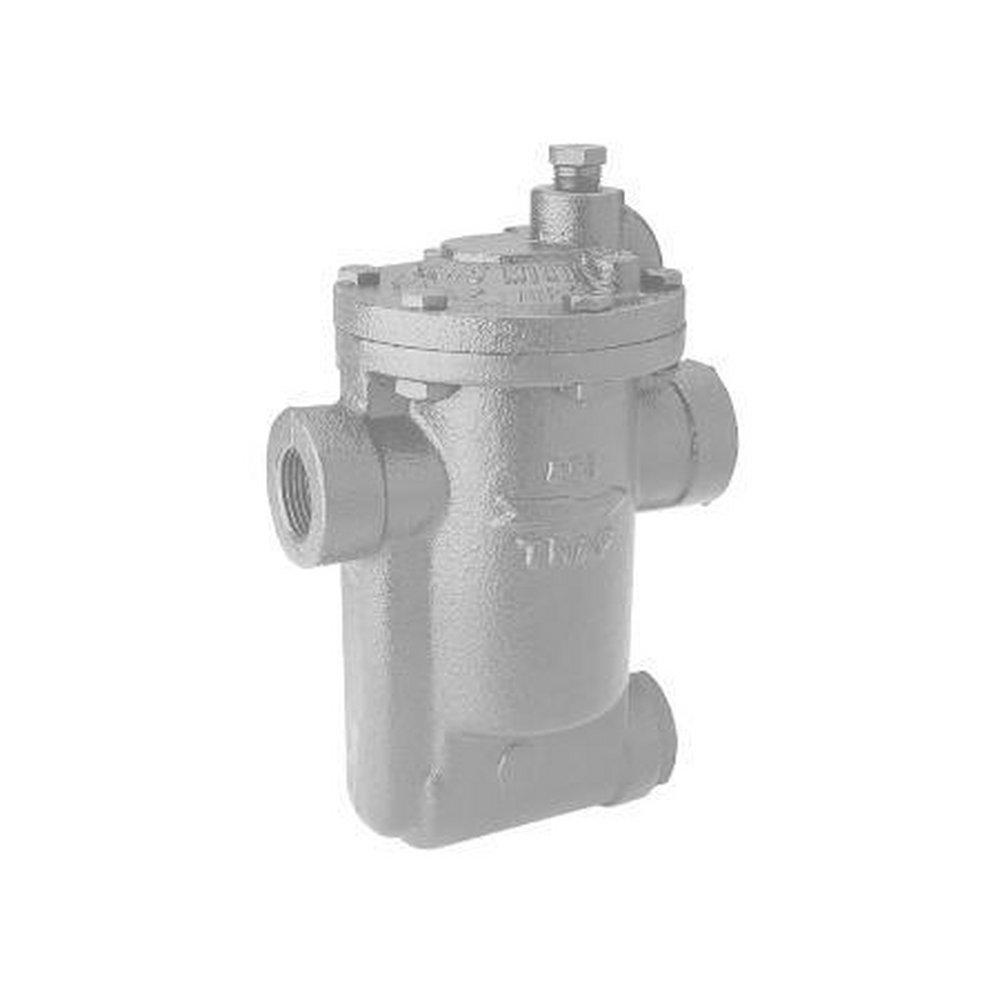

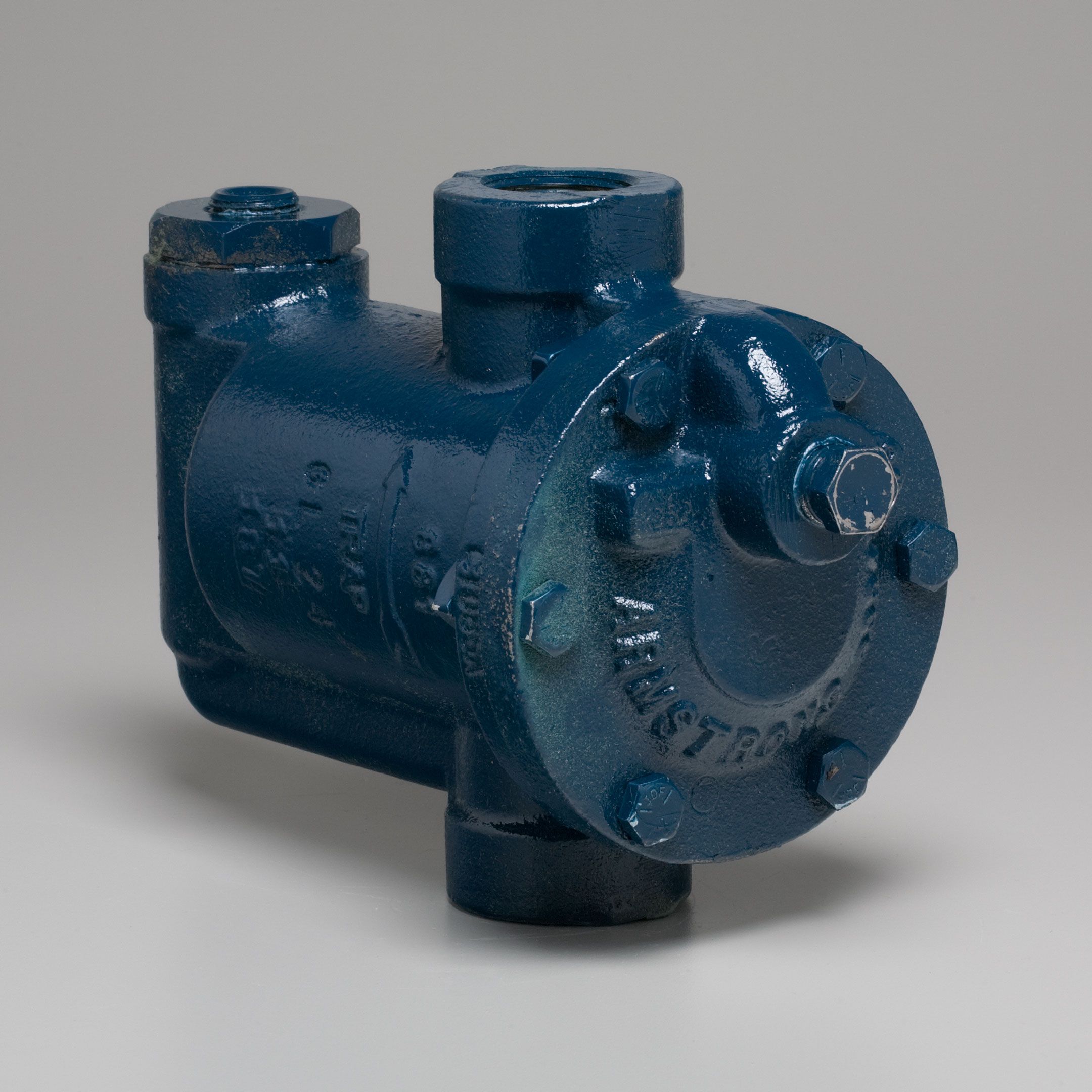

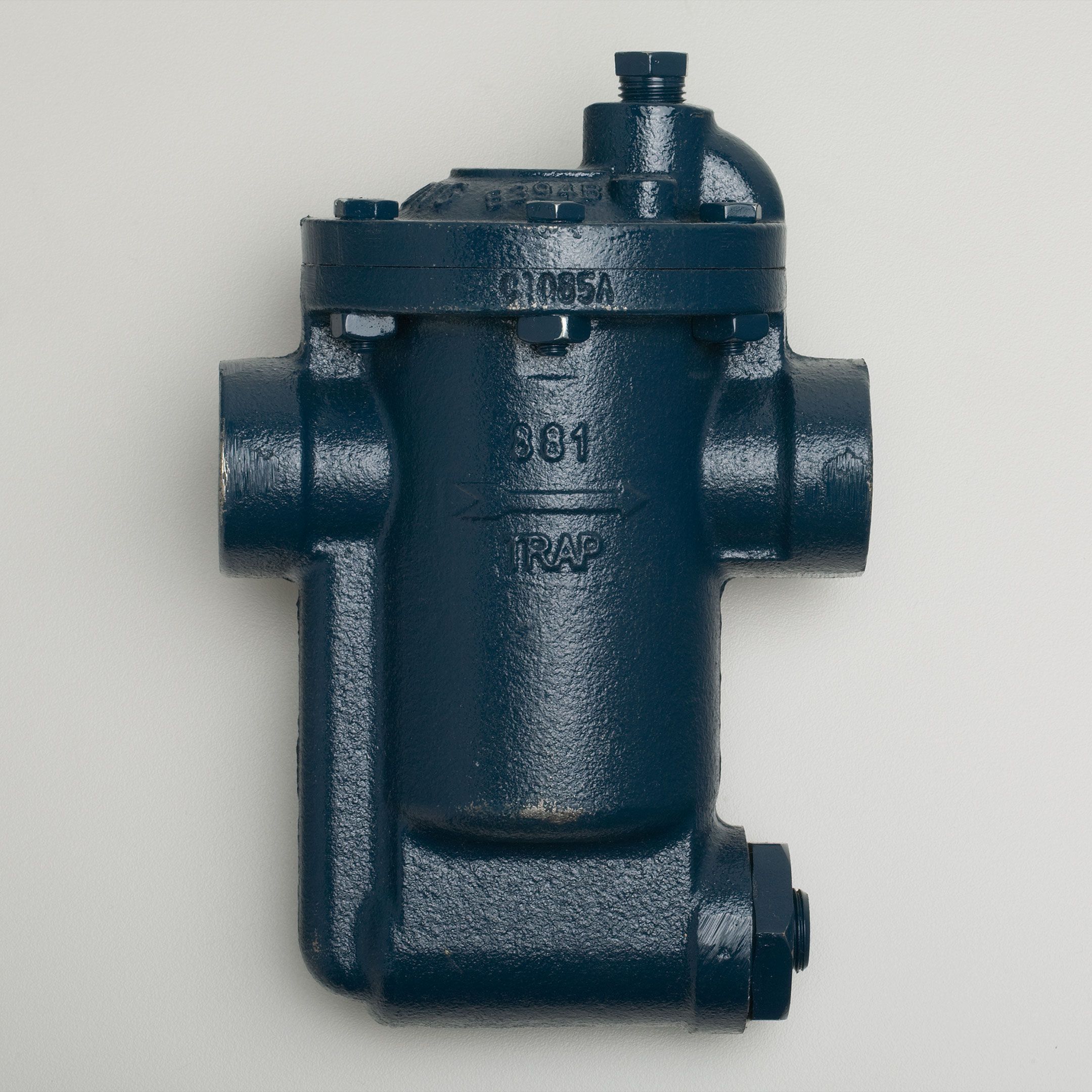

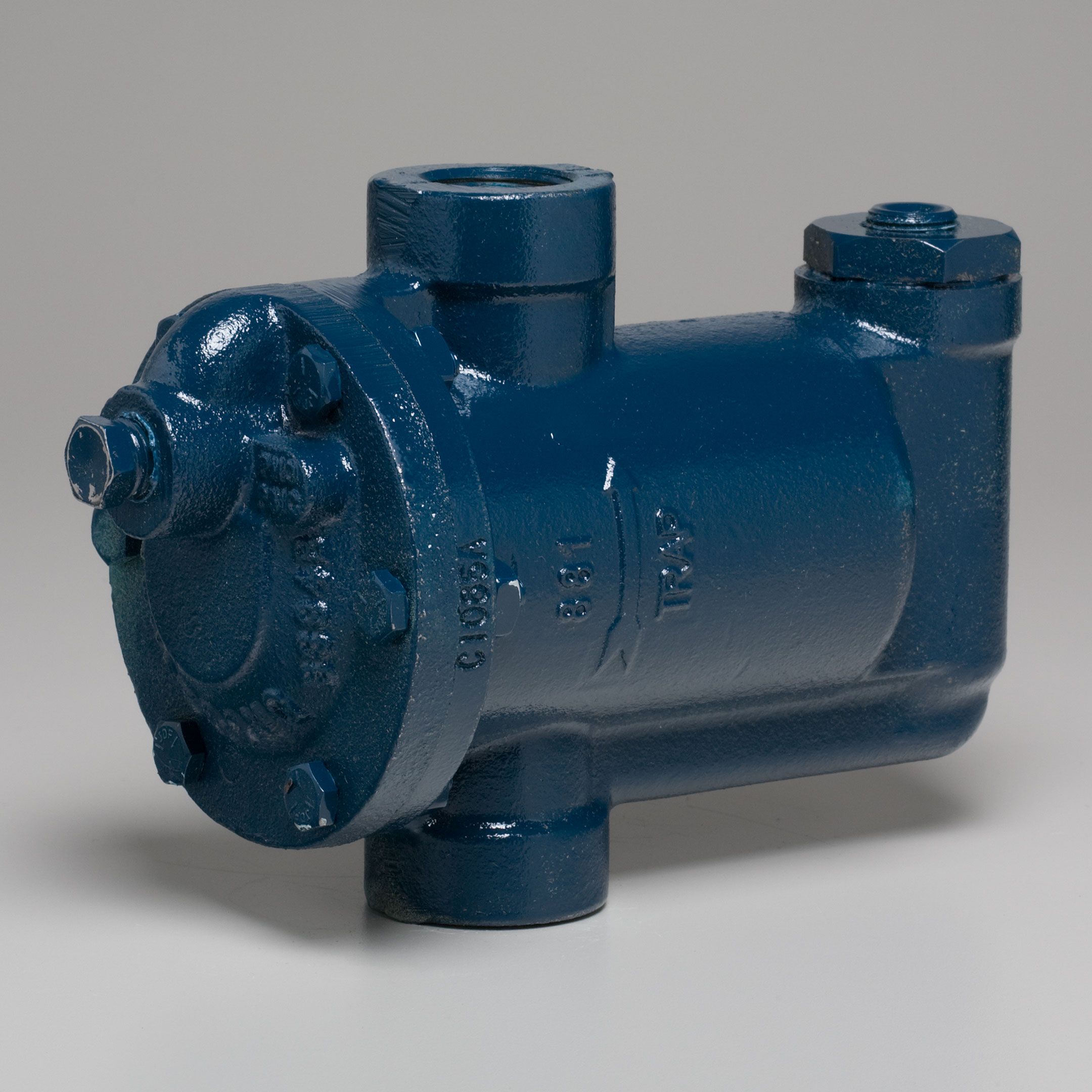

Armstrong International C5297-57 880 Series 3/4 in. 450F 250 psi Steam Trap

Product Description

The Armstrong International 880 Series steam trap model C5297-57 operates efficiently at temperatures up to four hundred fifty degrees Fahrenheit and pressures up to two hundred fifty psi. This steam trap is designed for high-capacity service on steam-using equipment, providing quick condensate drainage and venting of non-condensable gases.

• Inverted bucket system ensures reliable operation
• Capable of handling capacities up to seven hundred sixty pounds per hour
• Constructed from cast iron for durability

Product Highlights

This steam trap is ideal for heat exchange applications, offering effective operation against back pressure and optimizing air management.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-57

Technical Specifications

• Model: 881
• Series: 880 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Connection Size: 3/4 inches
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 250 psi
• Orifice Size: #38
• Weight: 6.00 lbs
