Armstrong International C5297-56 880 Series 3/4 in. 450F 250 psi Steam Trap

Product Description

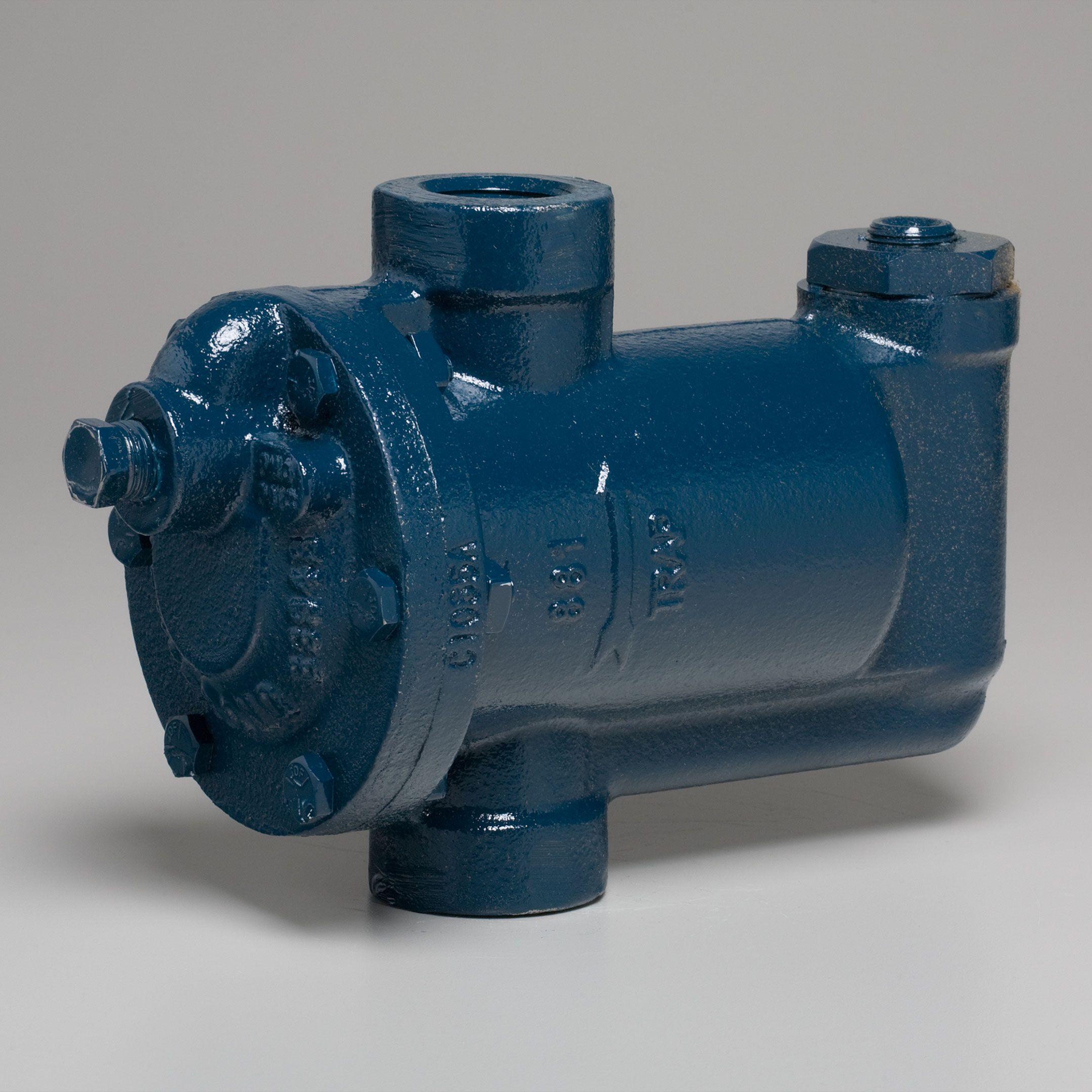

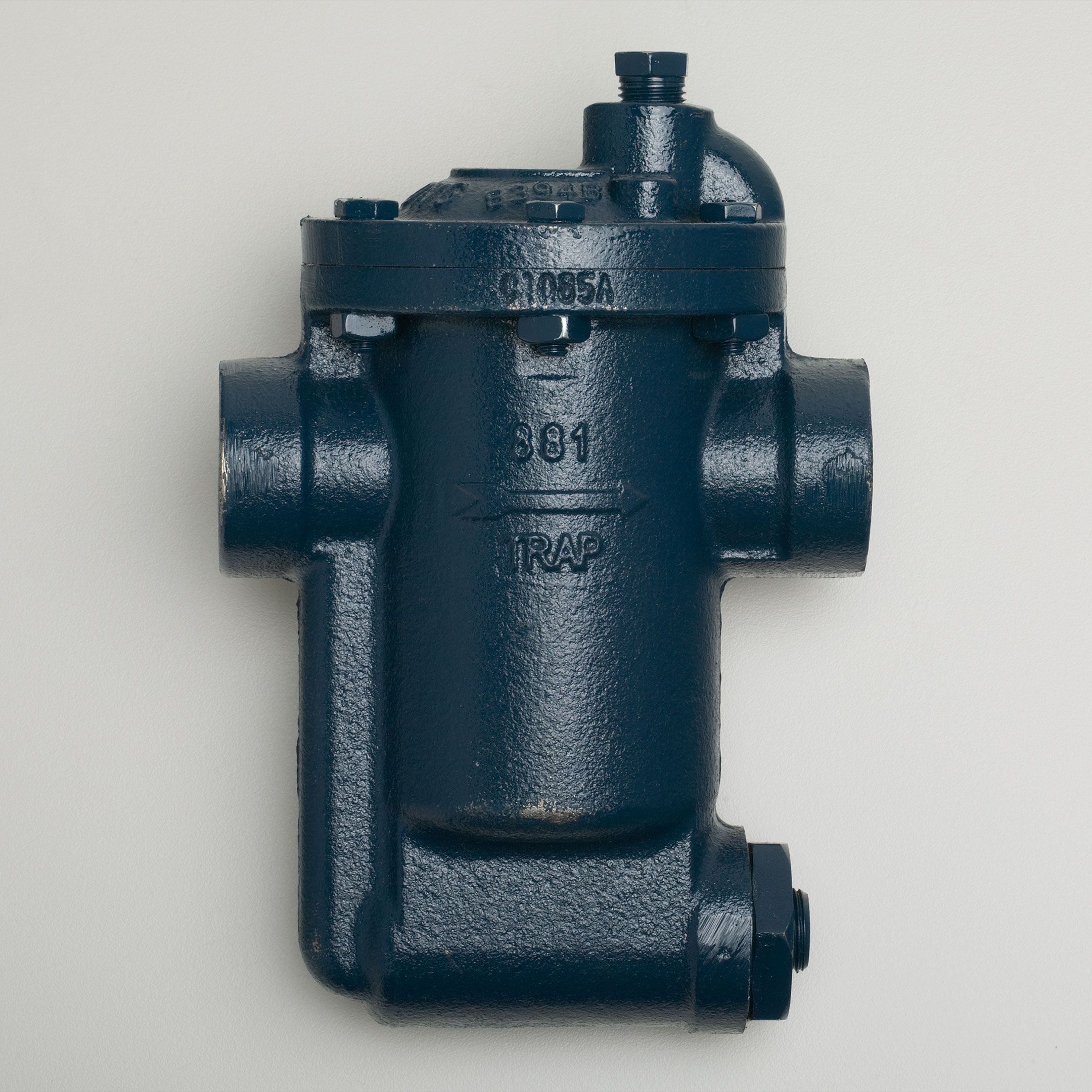

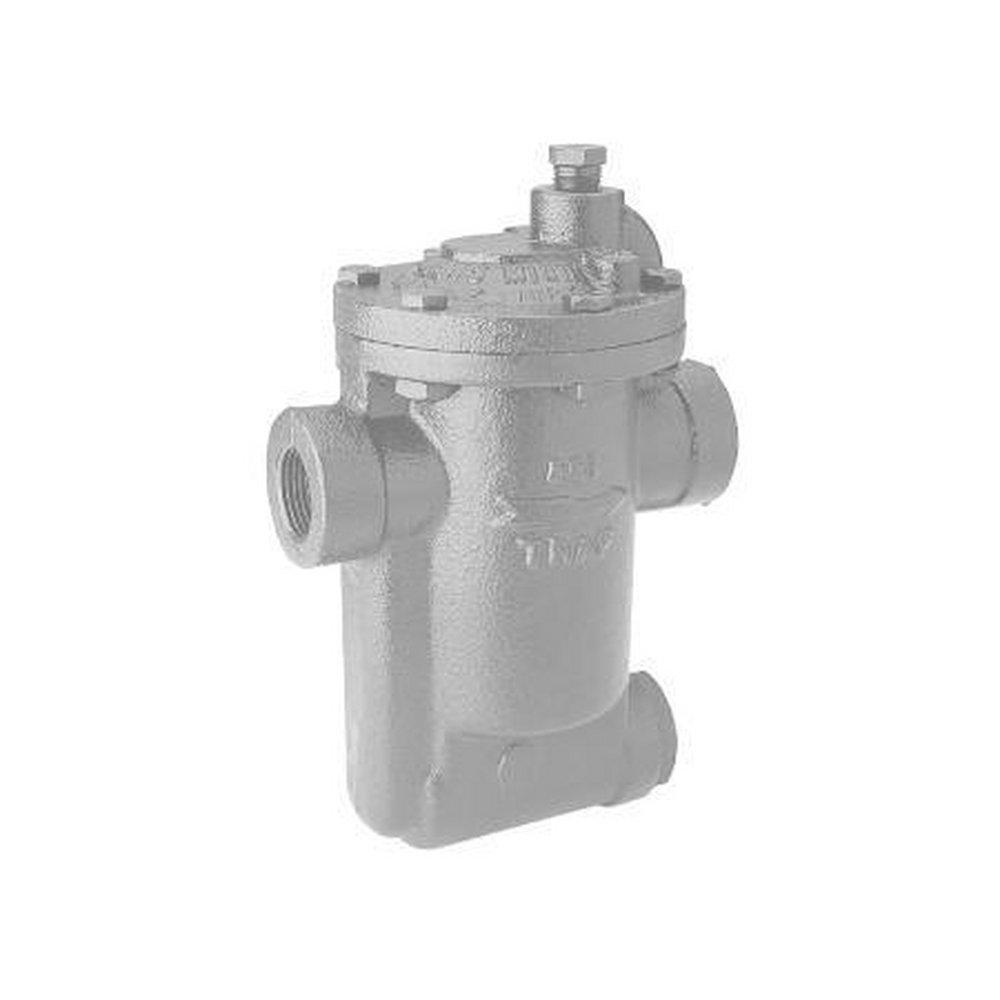

The Armstrong International C5297-56 steam trap is designed for effective steam condensate drainage in various applications. This inverted bucket model features a three-quarters inch connection and operates efficiently at pressures up to two hundred fifty psi. With a maximum capacity of four thousand four hundred pounds per hour, this steam trap is suited for heating and cooling systems in commercial and industrial settings.

• Inverted bucket design for reliable operation
• Cast iron construction for durability
• Integral strainer to prevent clogging

Product Highlights

This Armstrong steam trap facilitates the efficient removal of condensate and air from steam systems. The unique leverage system provides enhanced performance under various pressure conditions.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-56

Technical Specifications

• Model: 881
• Series: 880 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 in.
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 200 psi
• Orifice Size: 7/64
• Weight: 6.00 lbs
