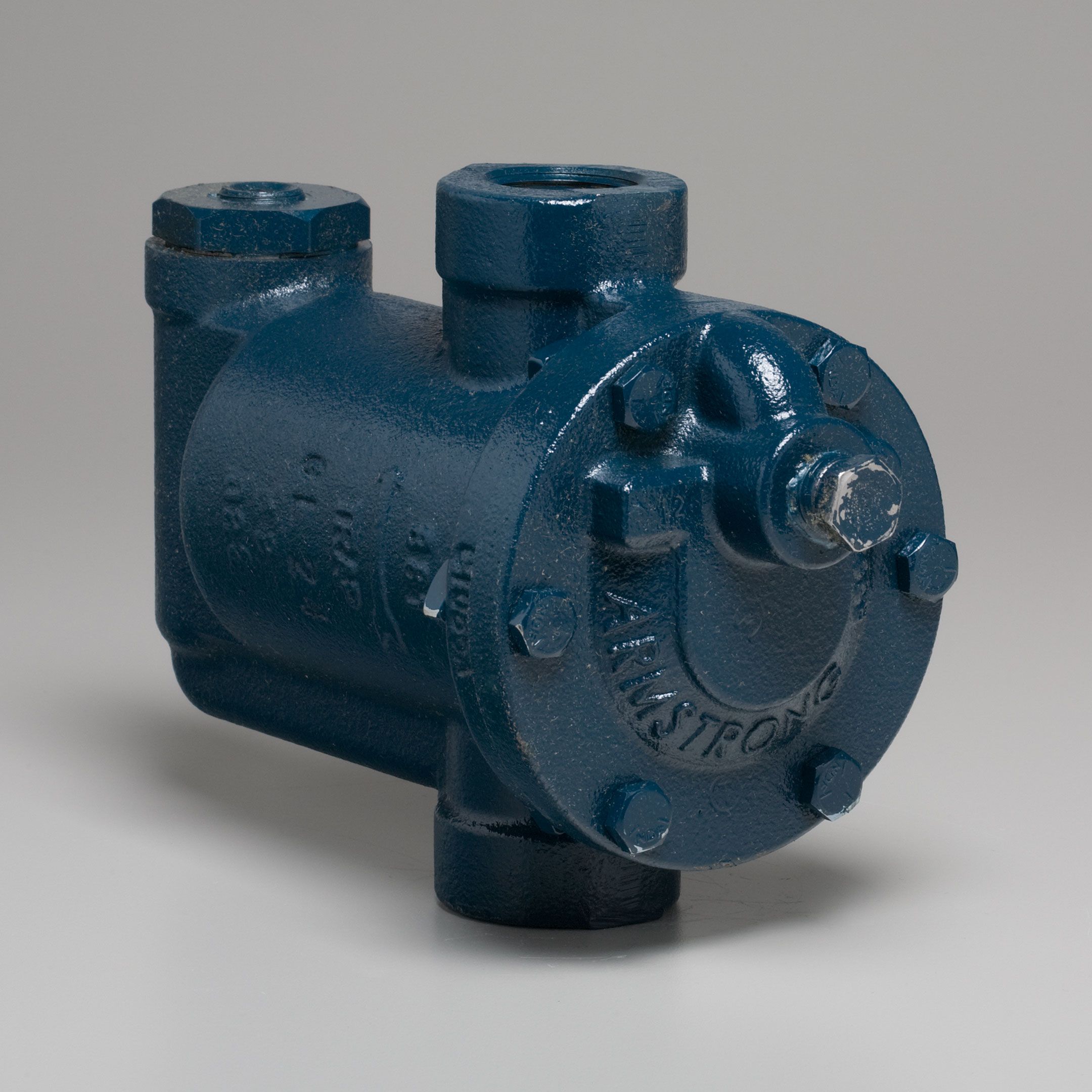

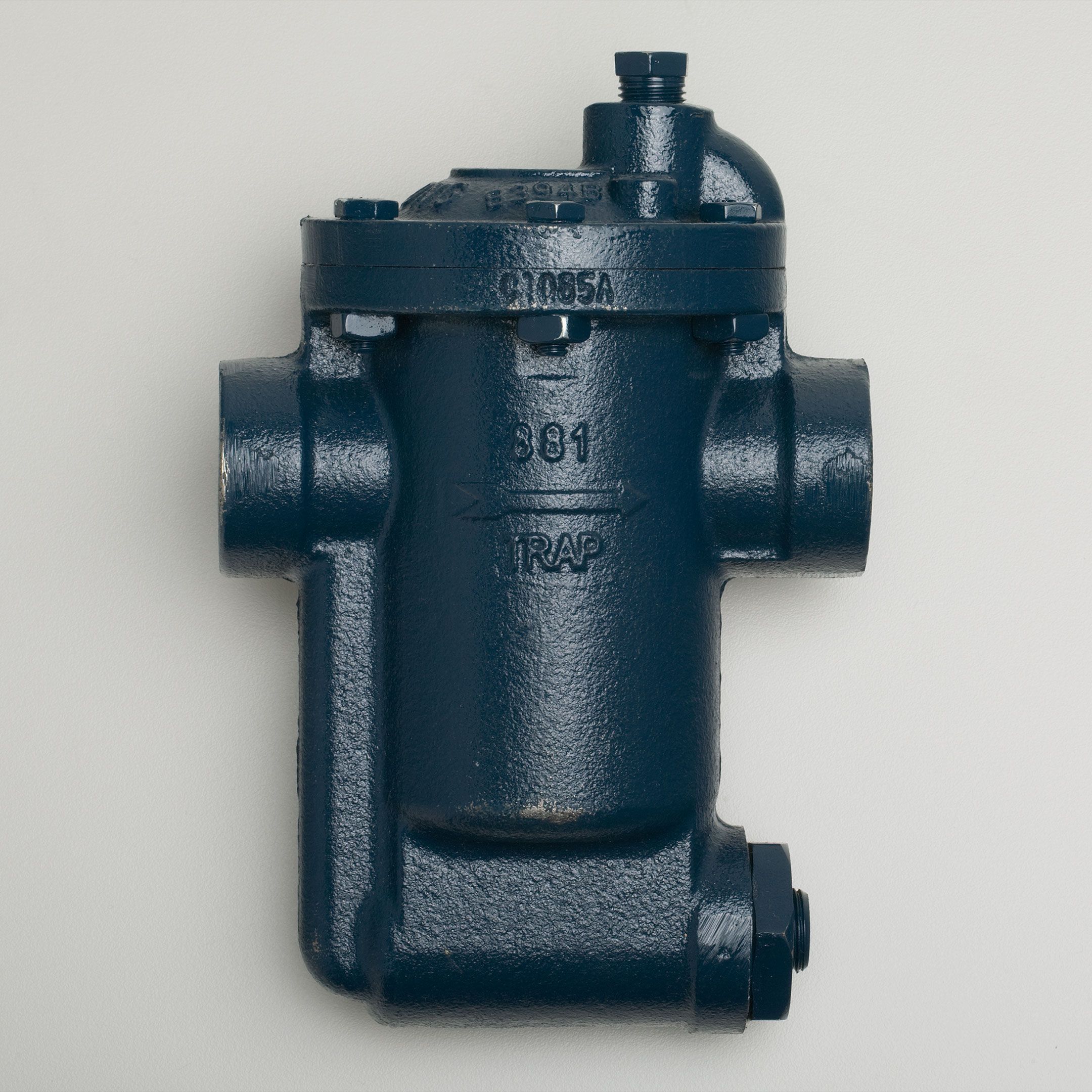

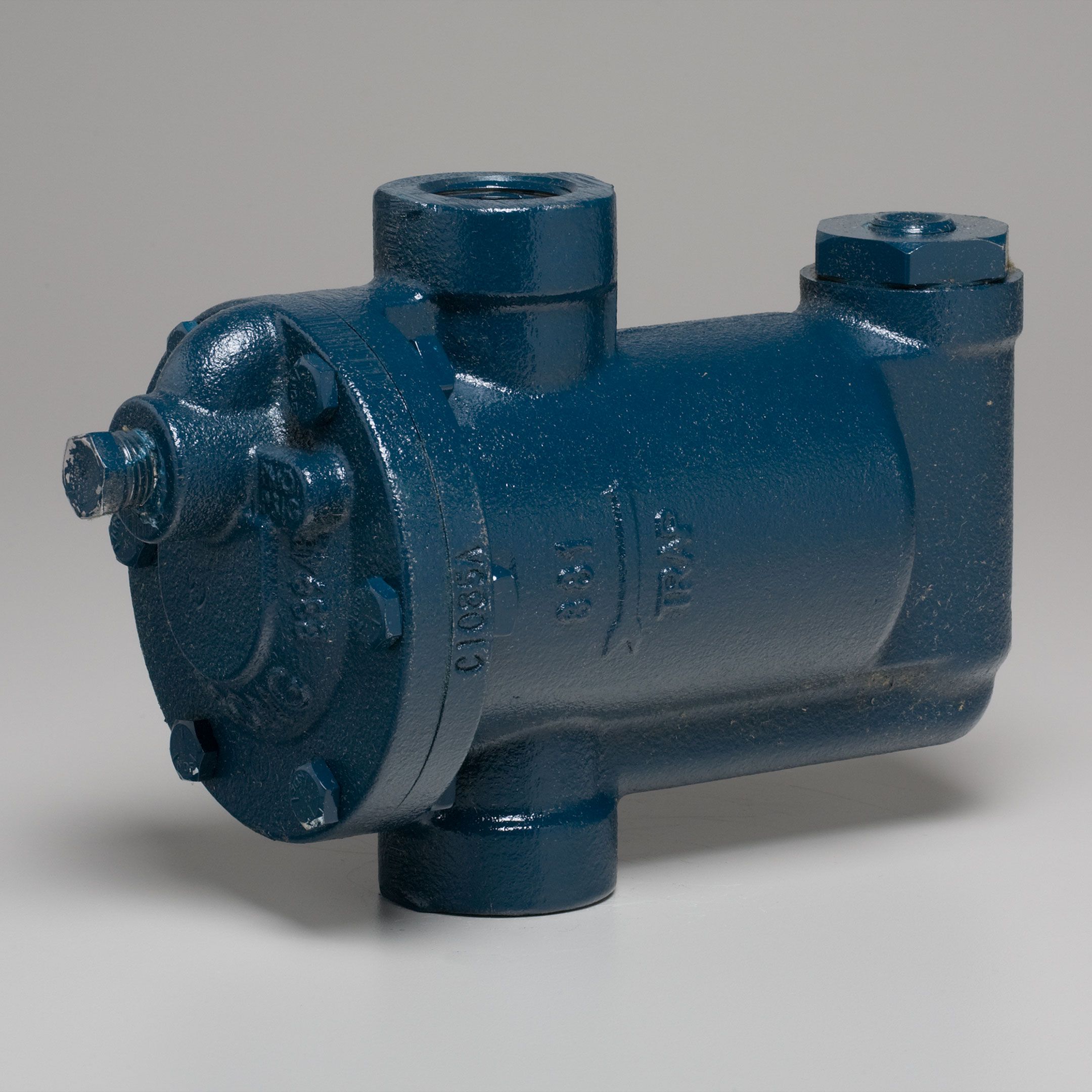

Armstrong International C5297-55 880 Series 3/4 in. 450F 250 psi Steam Trap

Product Description

The Armstrong International 880 series steam trap, model C5297-55, is built for efficient steam management. It features a three-fourths inch pipe connection with a maximum operating pressure of 250 psi. This steam trap is designed to effectively release condensate while keeping steam in the system.

• Designed for horizontal installation
• Capable of handling pressures up to 250 psi
• Cast iron construction for durability

Product Highlights

This steam trap's unique mechanism prevents dirt accumulation, promoting long working life. It features an integral strainer for reliable operation and maintenance. Ideal for various steam-using applications, it offers solid performance where air and non-condensable gases need rapid discharge.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-55

Technical Specifications

• Model: 881
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inch
• Steam Trap Type: Inverted Bucket
• Max Pressure: 125 psi
• Orifice Size: 1/8 inch
• Weight: 5.95 lbs
• Steam Trap Mounting: In-Line Horizontal
