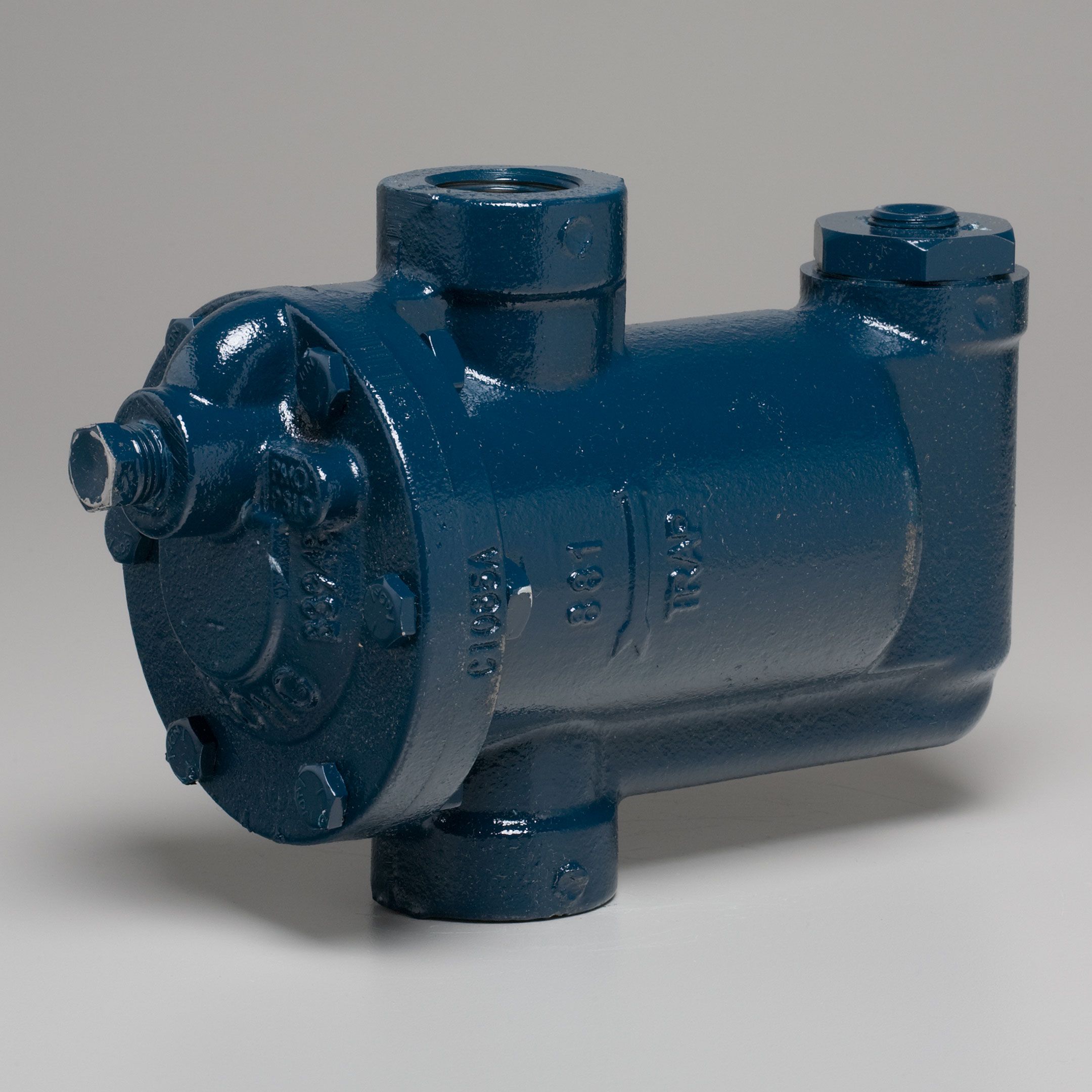

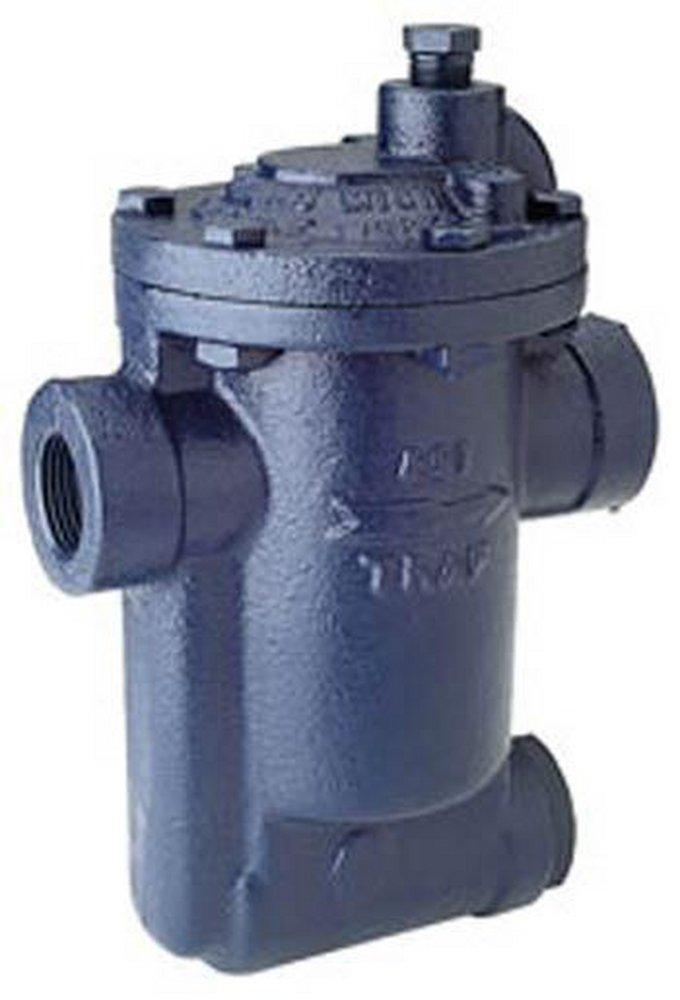

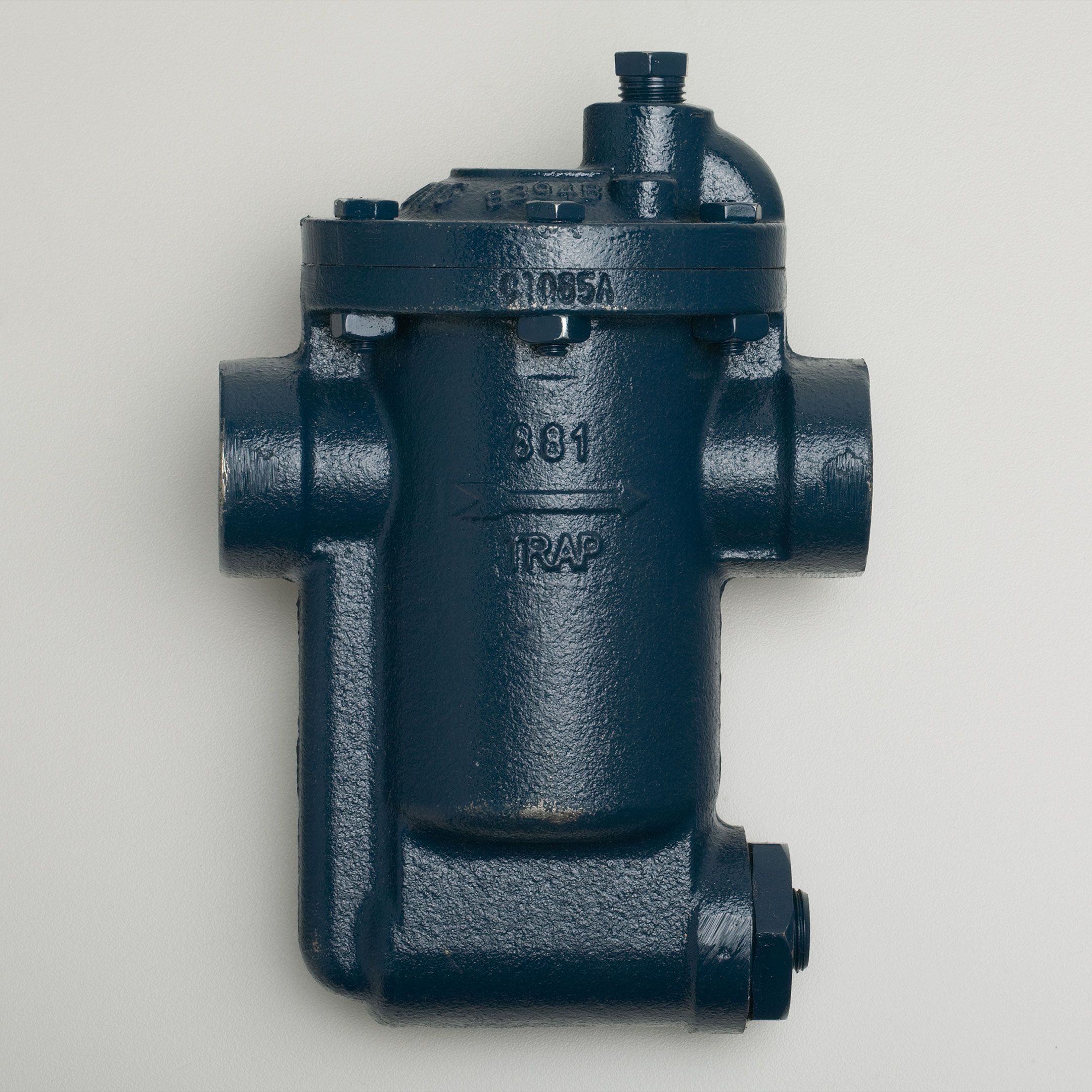

Armstrong International C5297-53 880 Series 3/4 in. 450F 250 psi Steam Trap

Product Description

The Armstrong International 880 Series Steam Trap, with MPN C5297-53, is designed for efficient condensate drainage. This steam trap operates up to two hundred fifty psi and functions effectively in a temperature range of up to four hundred fifty degrees Fahrenheit. The unique leverage system uses a cast iron inverted bucket design to expel condensate while preventing dirt buildup on the orifice.

• Maximum Pressure: 250 psi (17 bar)
• Capacities: up to 4400 lb/hr
• Horizontal installation with integral strainer

Product Highlights

This trap is suitable for various steam-using equipment, facilitating rapid air venting and providing energy savings through efficient operation.

Product Information

Standard Information

• Brand: Armstrong International
• Model: 881

Technical Specifications

• Body Material: Cast Iron
• Steam Trap Type: Inverted Bucket
• Steam Trap Connection Size: 3/4 inch
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 15 psi
• Orifice Size: 1/4 inch
• Weight: 6.29 lbs
