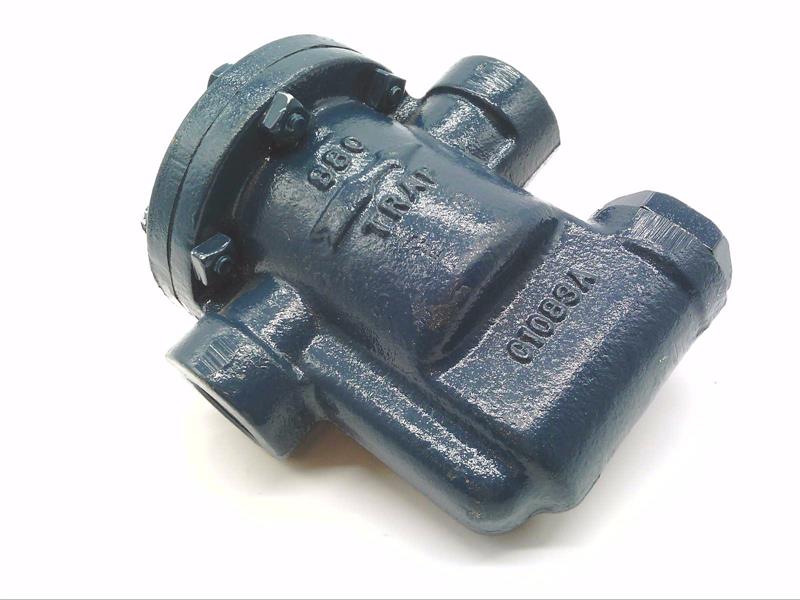

Armstrong International C5297-43 880 Series Inverted Bucket Steam Trap 1/2 in. 125 PSI

Product Description

The Armstrong International model C5297-43 steam trap, part of the 880 Series, boasts robust cast iron construction for optimal durability. Designed for efficient operation in a 1/2 inch, in-line horizontal configuration, this steam trap features an integral strainer and operates at up to 125 psi.

• Highly durable cast iron body.
• Integral strainer for efficient operation.
• Designed for horizontal installation.

Product Highlights

This steam trap is well-suited for heat exchange equipment, excelling in environments where air and non-condensable gases need to be vented rapidly. It demonstrates excellent resistance to wear, corrosion, and hydronic shock, ensuring long-lasting performance.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-43
• Series: 880 Series
• Connection Size: 1/2 inch
• Max Pressure: 125 psi
• Orifice Size: 7/64 inch
• Maximum Operating Pressure: 125 psi

Technical Specifications

• Body Material: Cast Iron
• Type: Inverted Bucket
• Configuration: In-Line Horizontal
• Capacity: 680 pounds per hour
• Weight: 5.50
