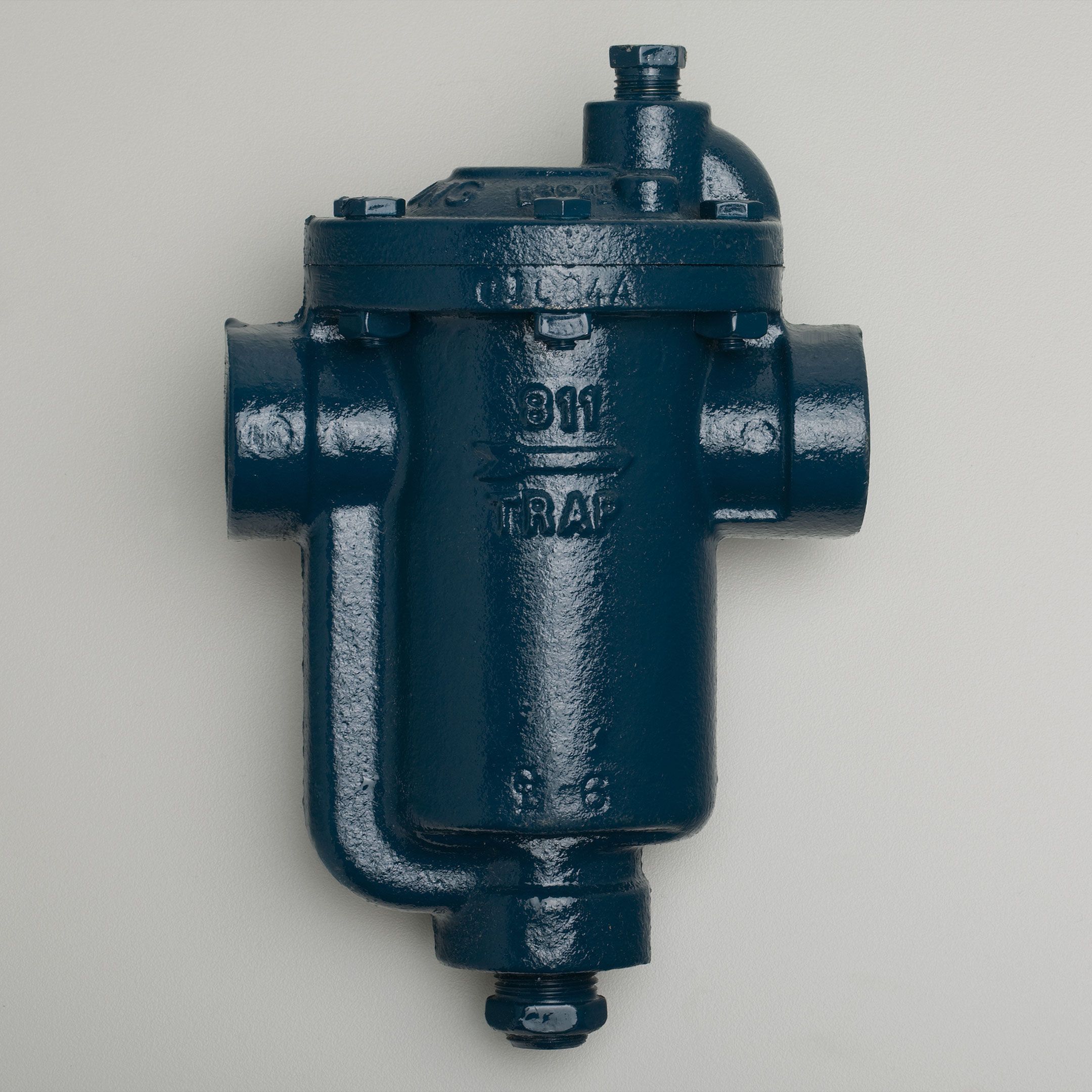

Armstrong C5297-31 811 Inverted Bucket Trap 1 NPT 15 PSI 1/4 Orifice

Product Description

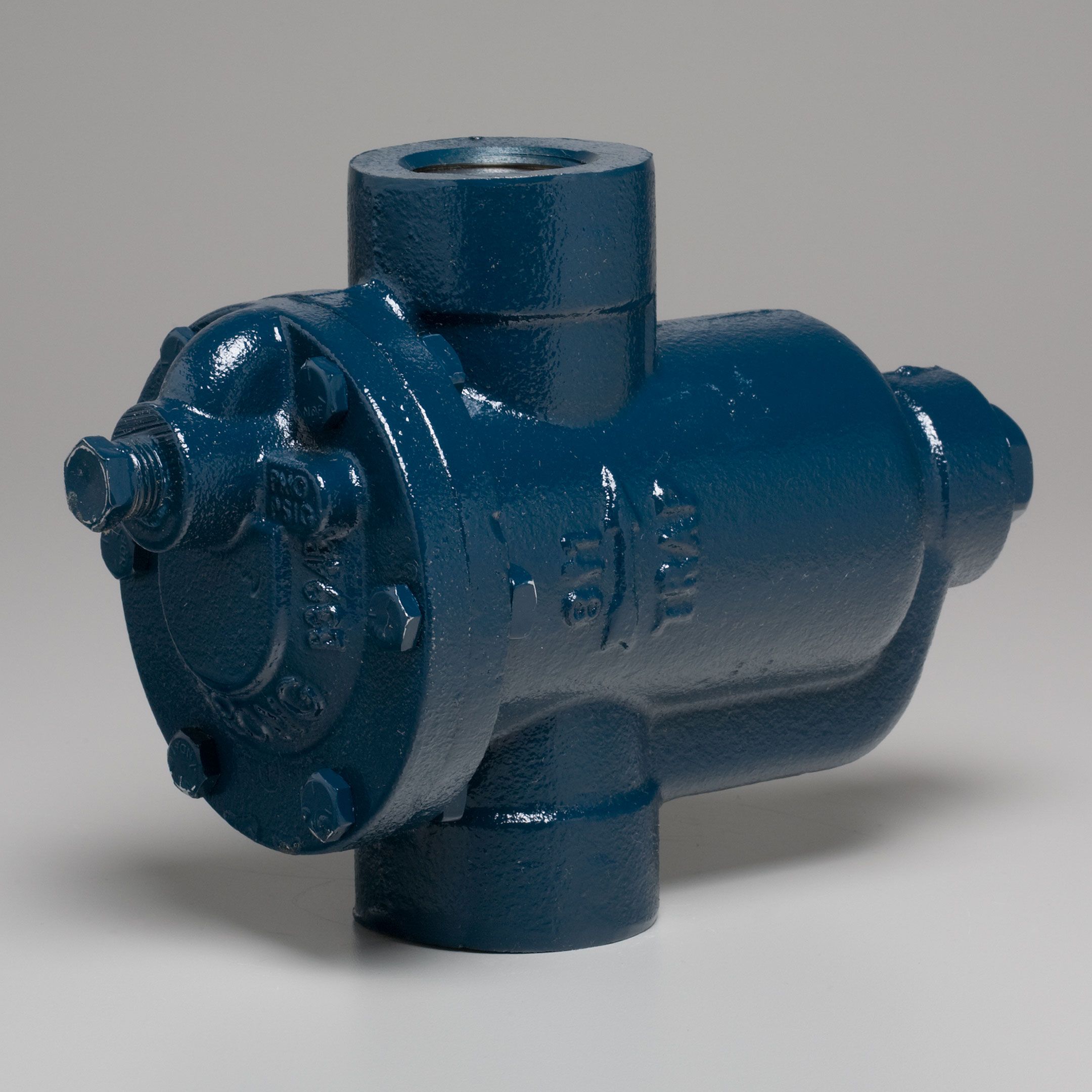

The Armstrong inverted bucket steam trap, model 811, has a one inch pipe connection in an in-line horizontal configuration. This design allows steam to flow in from the bottom and the condensate to exit from the top. Inverted bucket traps utilize a leverage system that employs the weight of the bucket to operate the valve against pressure. They are known for their durability against wear, corrosion, and hydronic shock. The 811 model is made of cast iron and operates at a maximum pressure of fifteen psi.

• 1 inch NPT connection
• Durable cast iron body
• Operates at maximum pressure of 15 psi

Product Highlights

This steam trap is ideal for systems needing quick venting of air and non-condensable gases.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-31

Technical Specifications

• Series: 800 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Steam Trap Connection Size: 1 inch
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 15 psi
• Orifice Size: 1/4 inch
• Weight: 6.00 lbs
