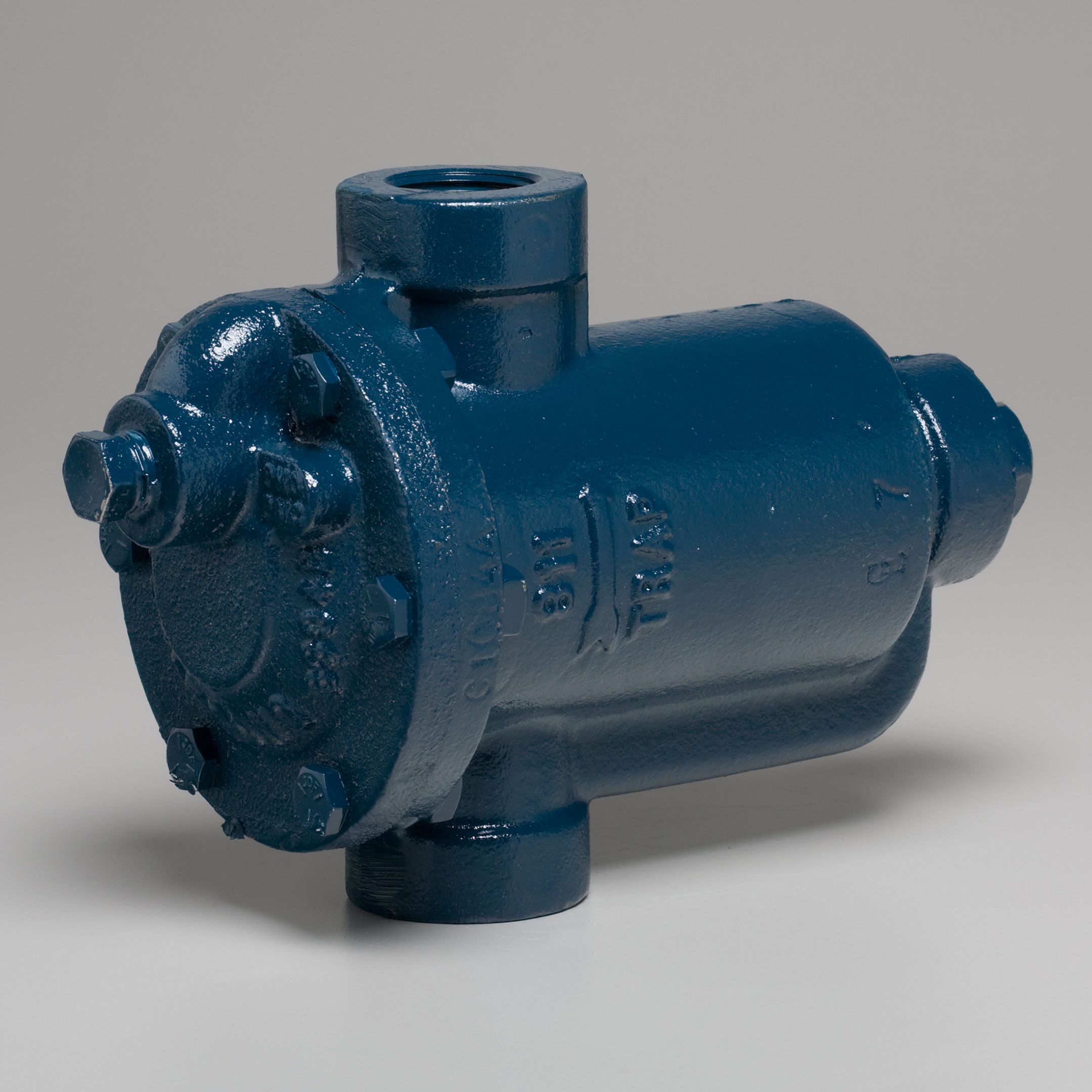

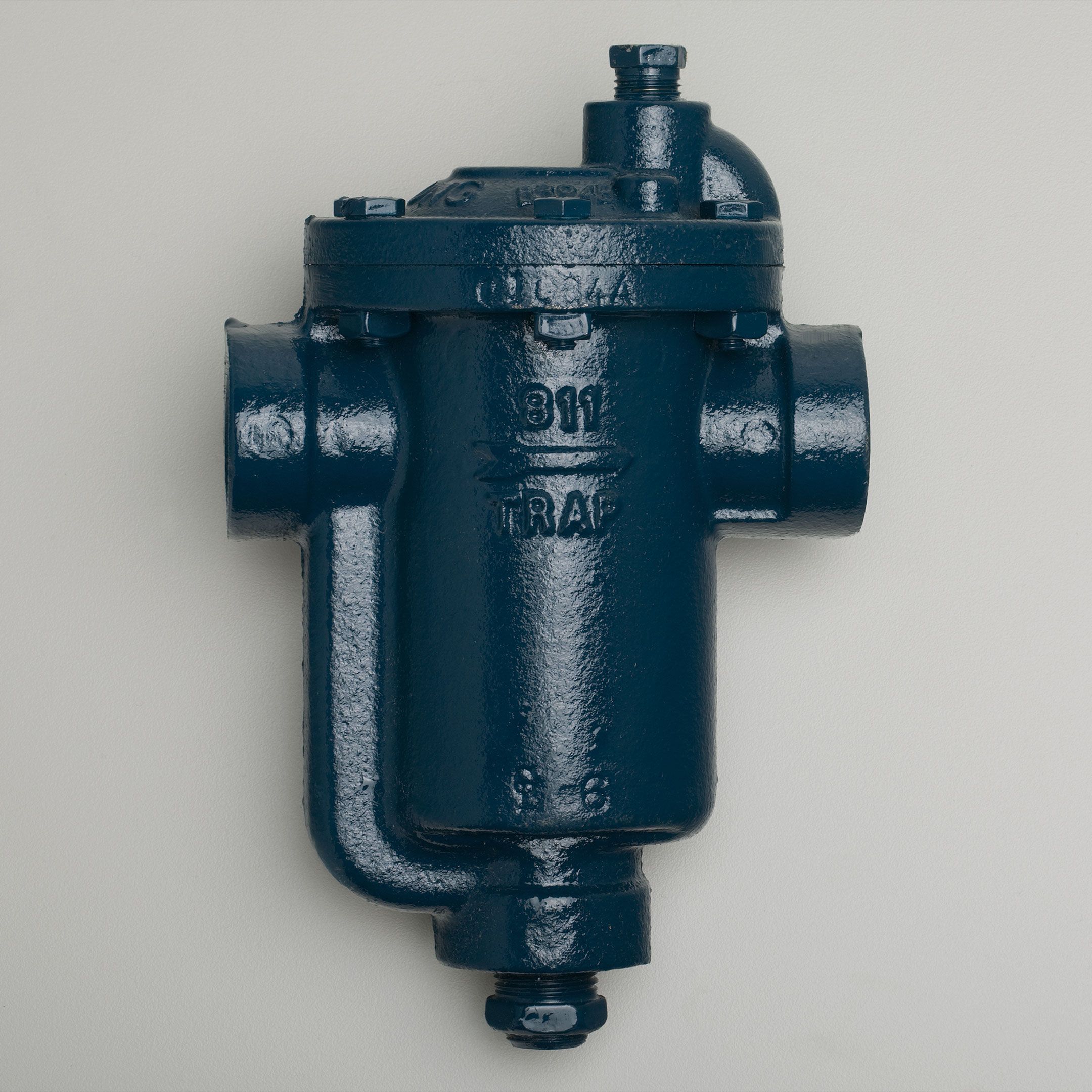

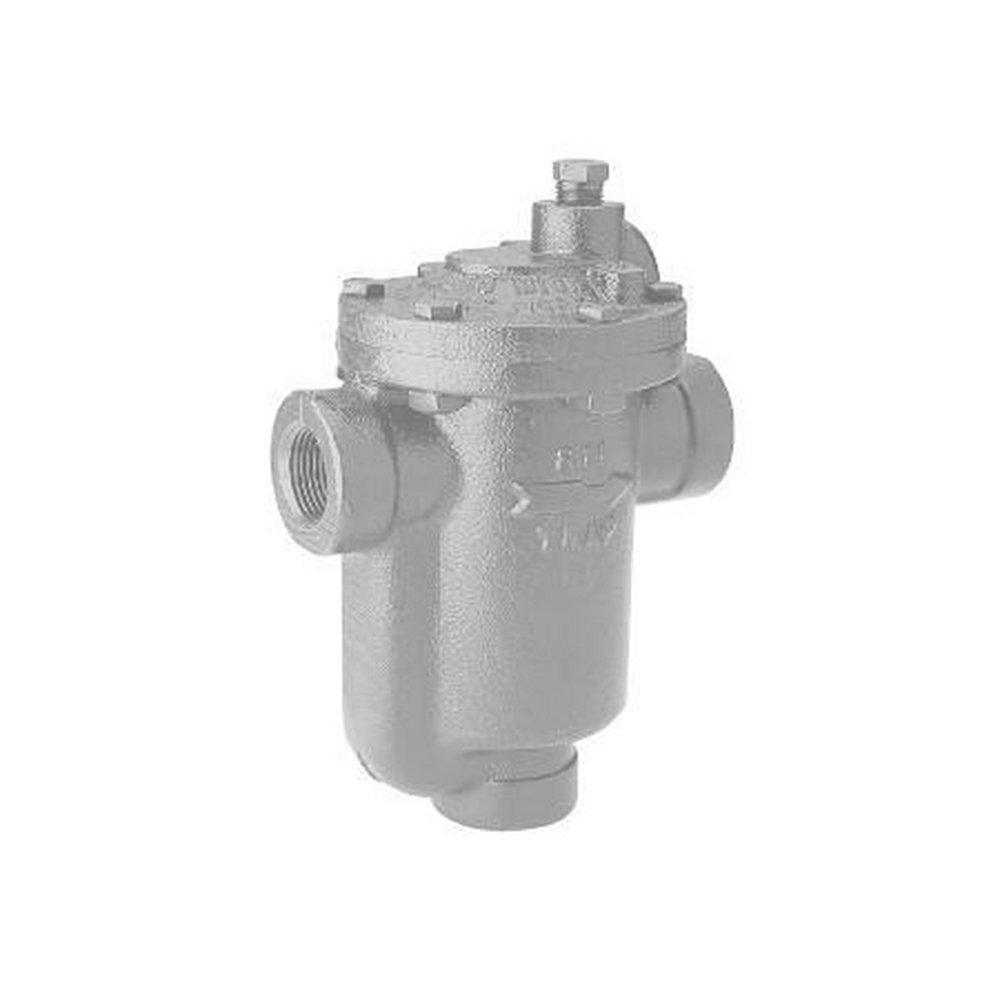

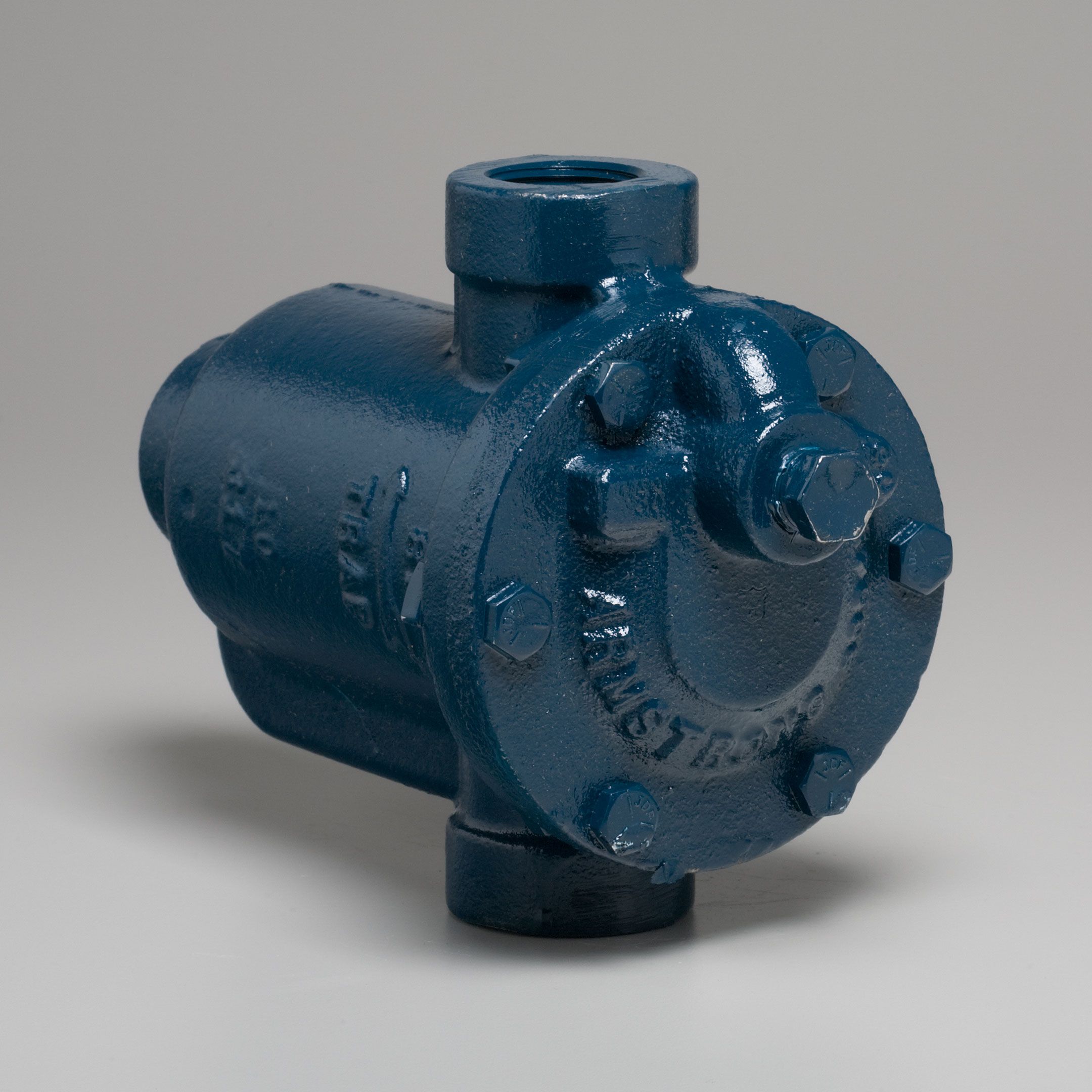

Armstrong International C5297-25 800-813 Series 3/4 in. 450F 17 bar Steam Trap

Product Description

The Armstrong International C5297-25 is an inverted bucket steam trap designed for effective condensate drainage in steam systems. This model has a three-quarter inch connection and operates efficiently at a maximum pressure of thirty psi. With a capacity of up to one thousand pounds per hour, it efficiently handles various steam applications.

• Capable of operating under pressures up to thirty psi.
• Manufactured from cast iron for durability.
• In-line horizontal configuration allows for easy installation.

Product Highlights

This steam trap provides quick air venting and efficient condensate removal, making it suitable for heat exchange equipment.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-25

Technical Specifications

• Max Pressure: 30 psi
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inch
• Steam Trap Type: Inverted Bucket
• Steam Trap Mounting: In-Line Horizontal
• Orifice Size: 3/16 inch
• Weight: 6.00 pounds
