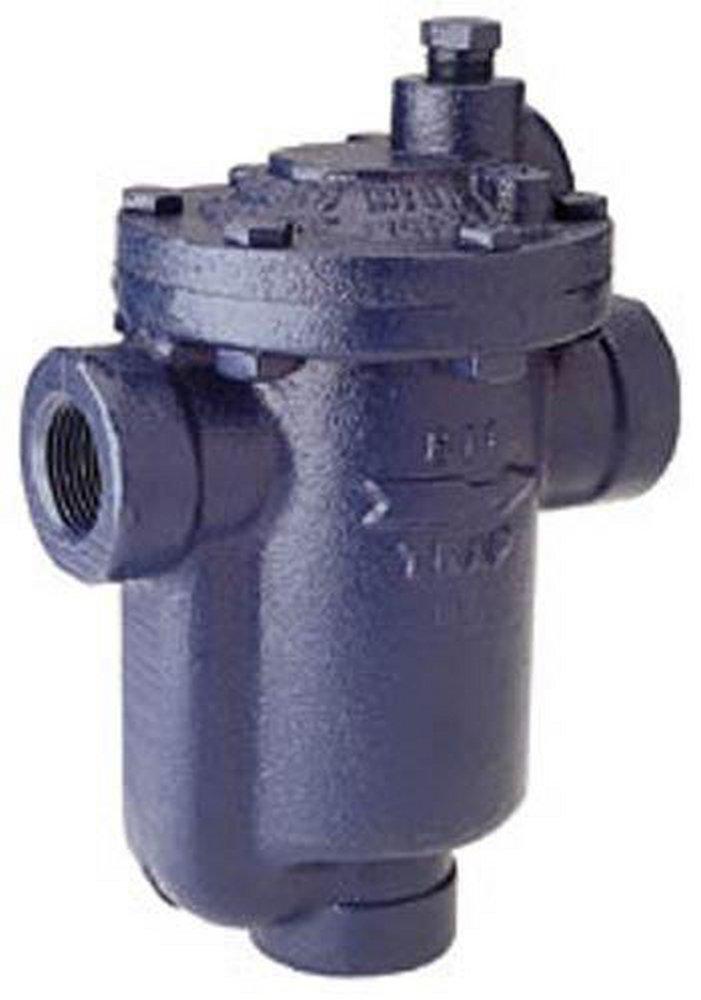

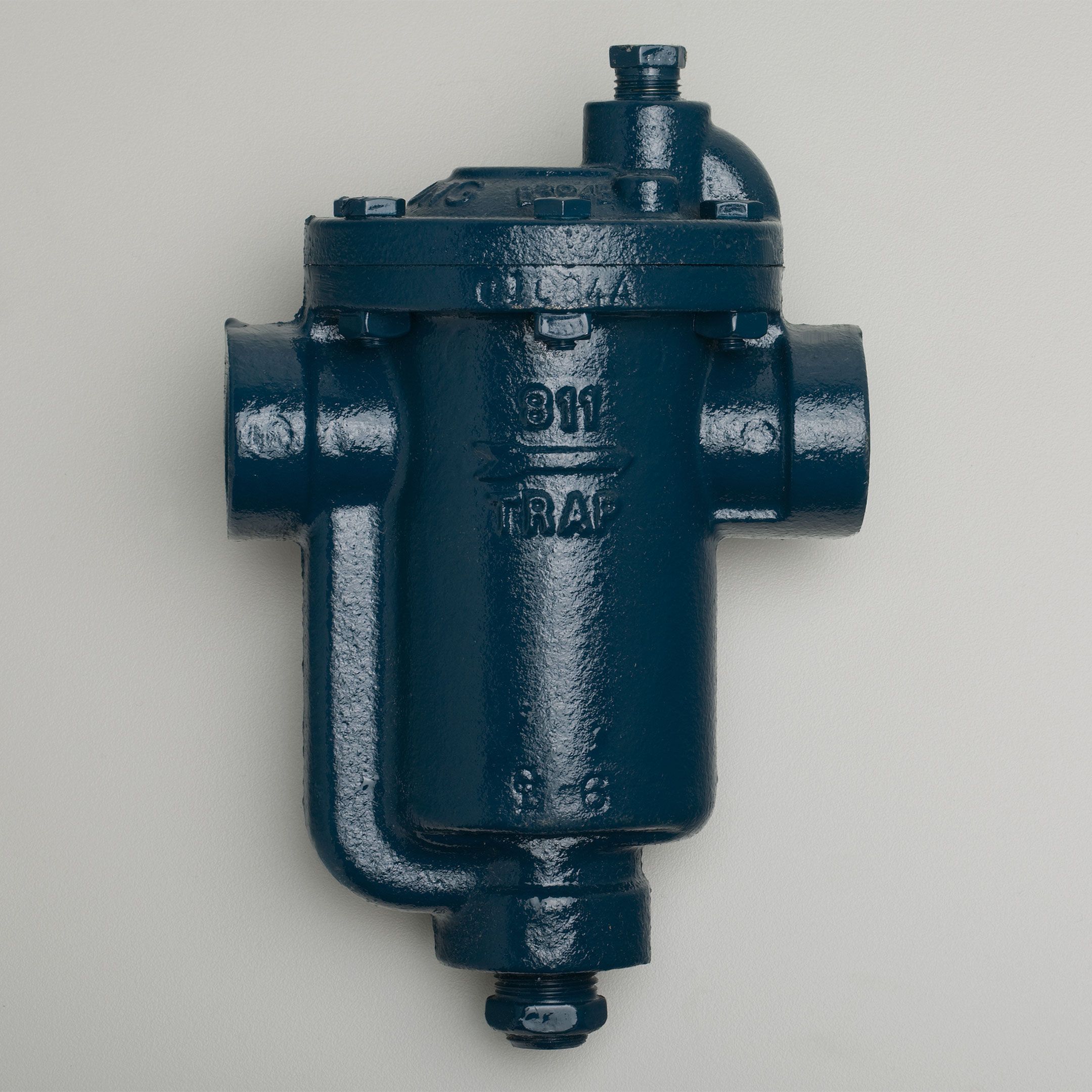

Armstrong International C5297-24 800-813 Series 3/4 in. 450F 17 bar Steam Trap

Product Description

The Armstrong International C5297-24 is a steam trap designed for optimal condensate drainage. It features a three-fourth inch connection and operates efficiently within pressures up to 250 psig, with a maximum temperature of 450 Fahrenheit. This model is ideal for horizontal installation and is made from cast iron, ensuring durability in steam applications.

• For pressures up to two hundred fifty psig (17 bar)
• Capacities of up to seven hundred sixty lb/hr (345 kg/hr)
• Designed for horizontal installation to efficiently drain condensate

Product Highlights

This steam trap prevents back pressure issues by offering fast venting of air and non-condensables, making it suitable for various heating systems, ensuring reliable performance.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-24

Technical Specifications

• Series: 800 Series
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inch
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 15 psi
• Orifice Size: 1/4 inch
• Weight: 5.65 lbs
