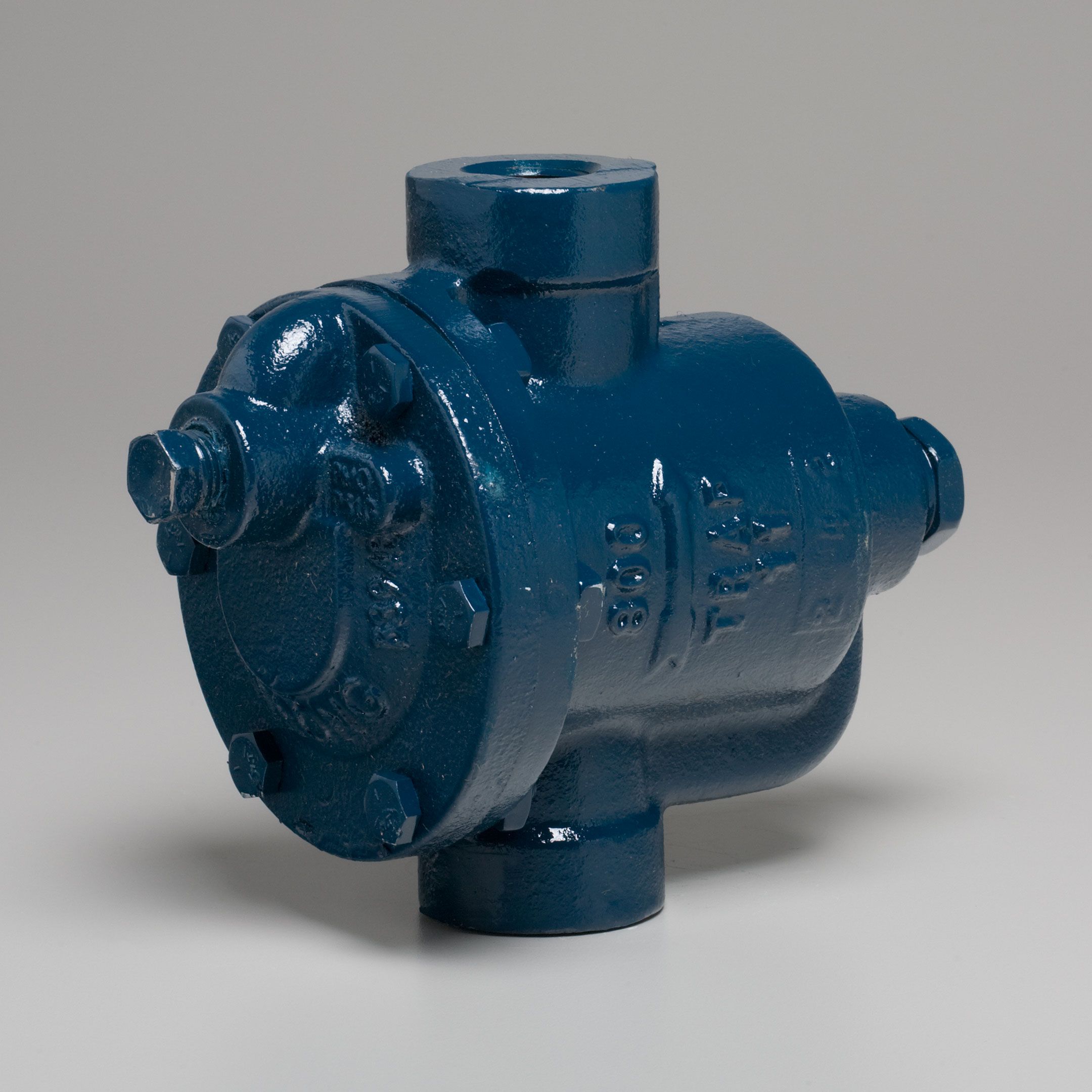

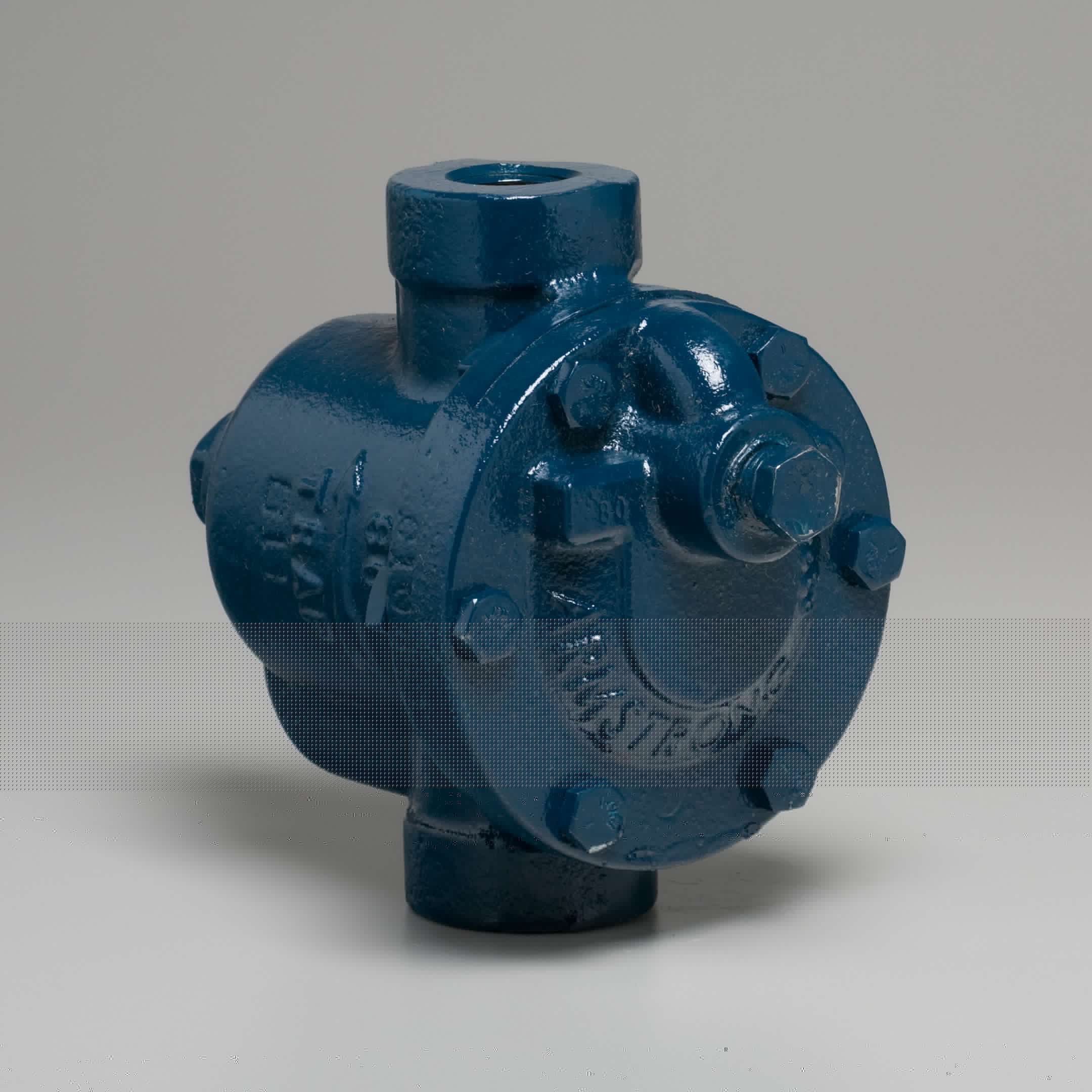

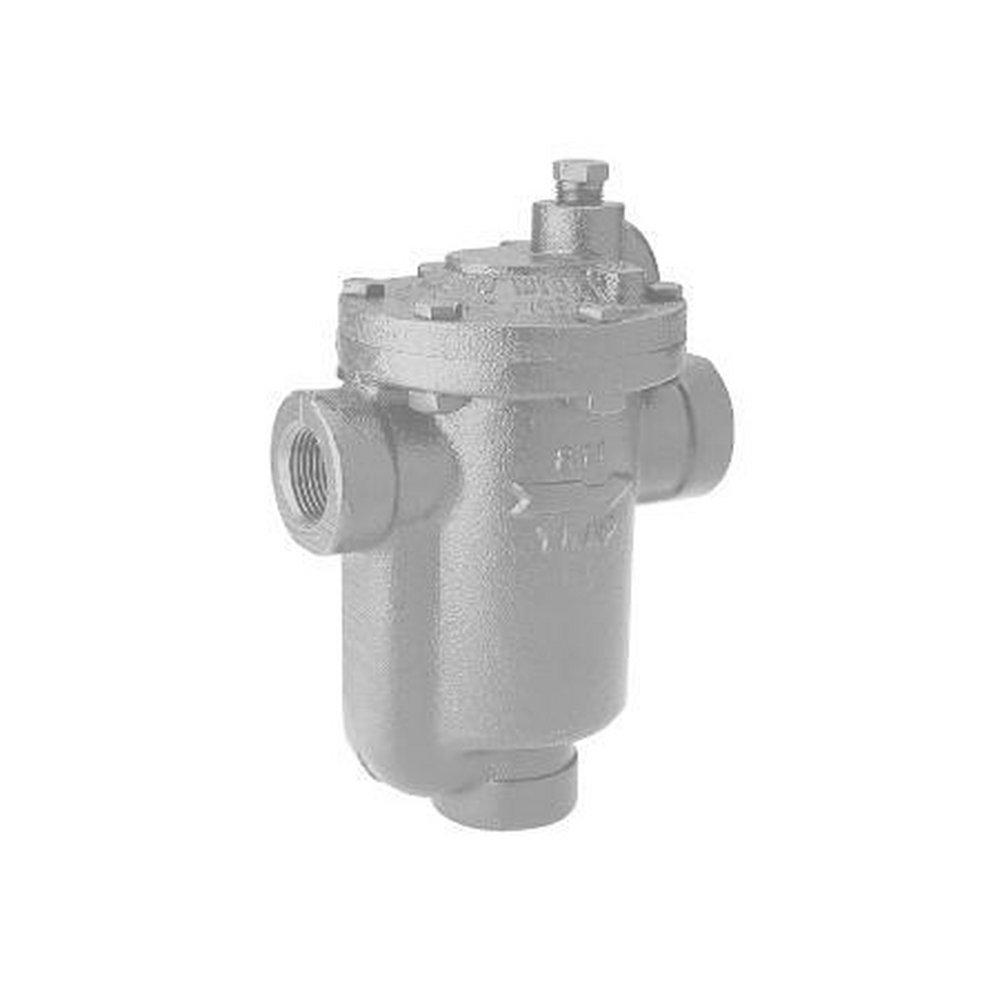

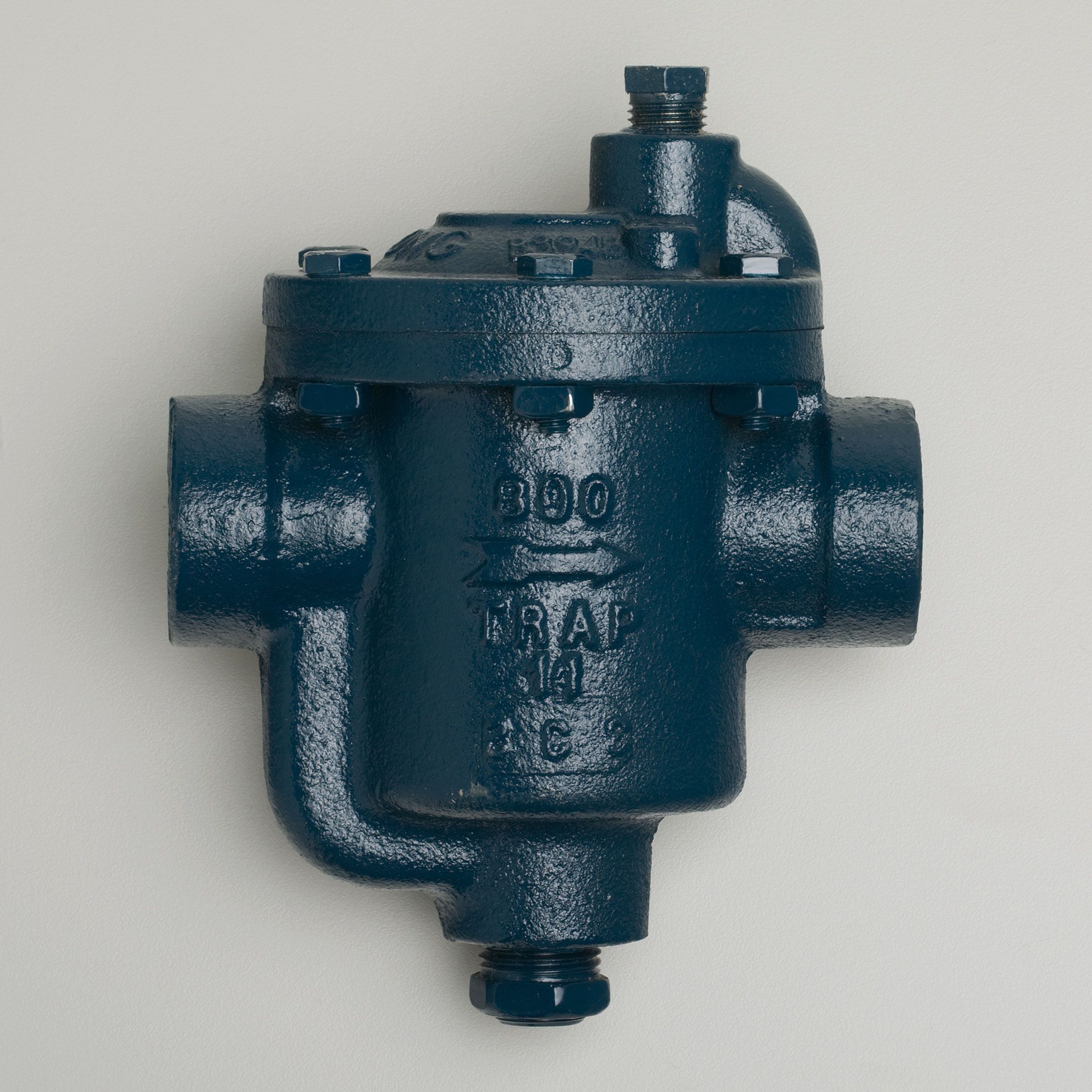

Armstrong International C5297-2 800 Series 1/2 Inch 250 PSI Cast Iron Steam Trap

Product Description

The Armstrong International C5297-2 is a robust cast iron steam trap designed for high-pressure applications up to 250 psi. This model from the renowned 800 series offers reliable performance in draining condensate from steam systems while ensuring energy efficiency and operational longevity. Ideal for use in a variety of steam-using equipment, it represents a solid choice for professionals in the steam management field.

• Durable cast iron construction ensures long service life and resistance to wear.
• Efficient condensate drainage capability, handling up to 760 pounds per hour.
• Unique free-floating lever system minimizes wear and friction, enhancing reliability.

Product Highlights

The Armstrong C5297-2 steam trap features an inverted bucket mechanism, known for its reliability and efficiency in steam trapping. It operates via a simple leverage system that uses the bucket's weight to open the valve against high system pressure, effectively handling both air and non-condensable gases quickly. The design allows for superior performance under light loads and against back pressure, suitable for heat exchange equipment and other critical applications.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-2

Technical Specifications

• Material: Cast Iron
• Connection Size: 1/2 inch NPT
• Max Pressure: 250 psi
• Operating Temperature: up to 450F
• Capacity: up to 760 lb/hr
