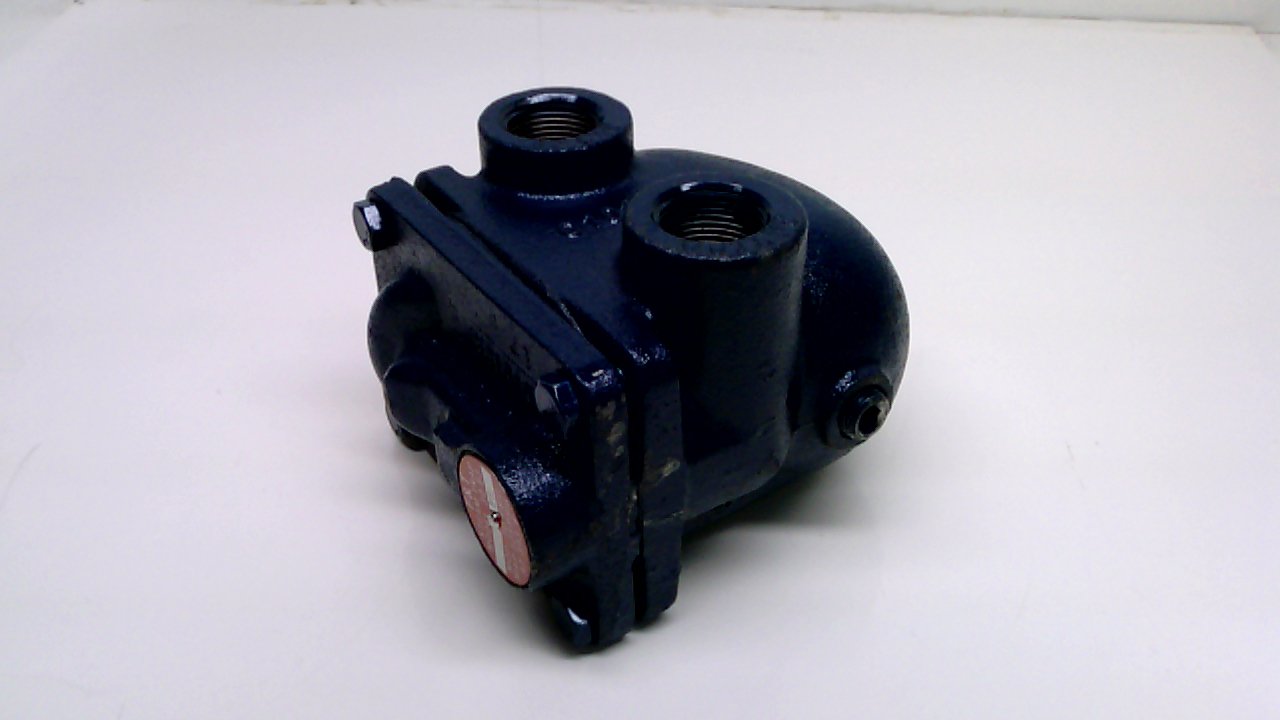

Armstrong International 30B3 Steam Trap 30 psi 3-7/8 in L

Product Description

The Armstrong International 30B3 Steam Trap is designed for steam systems requiring a maximum operating pressure of 30 psi and a temperature of up to 353 degrees Fahrenheit at 125 psig. Made from cast iron, this steam trap ensures durability and reliability in various industrial applications.

• Maximum operating pressure: 30 psi
• Temperature: 353 degrees Fahrenheit at 125 psig
• Connections: 3/4 inch NPT

Product Highlights

The Armstrong International 30B3 is engineered for efficient steam and condensate management in industrial settings. Its robust cast iron body and horizontal trap position make it suitable for high-demand applications.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: 30B3
• Application: Steam
• Body Material: Cast Iron

Technical Specifications

• Max. Operating PSI: 30 psi
• Max. Temperature: 353 degrees Fahrenheit at 125 psig
• Connection Type: (F)NPT
• Connection Size: 3/4 inch
• End to End Length: 3-7/8 inches
• Condensate Capacity: 1400 lbs/hr
• Trap Position: Horizontal
• Country of Origin: United States
