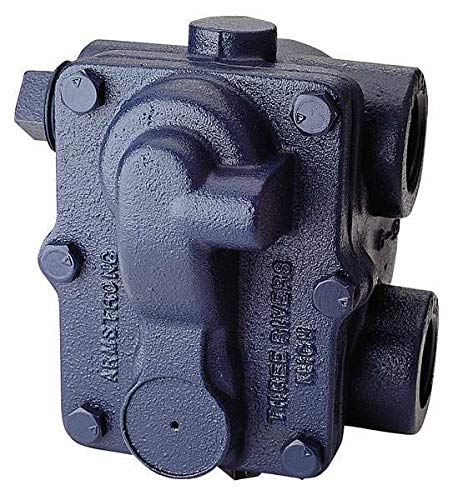

Armstrong International 175A3 Steam Trap 3/4in 175 psi Float and Thermostatic

Product Description

The Armstrong International 175A3 Steam Trap is a reliable solution for managing steam in various applications. This steam trap features (F)NPT connections with a 3/4 inch diameter and has a maximum operating pressure of 175 psi. It is designed with a float and thermostatic mechanism, ensuring efficient condensate removal. The cast iron body provides durability and longevity.

• Float and thermostatic type
• 3/4 inch NPT connections
• Max operating pressure: 175 psi

Product Highlights

This steam trap by Armstrong International stands out for its reliable performance in steam applications. Key features include a robust cast iron body, horizontal trap position, and same-side pipe configuration, making it ideal for consistent and efficient steam management.

Product Information

Standard Information

• Brand: Armstrong International
• Model: 175A3
• Product Type: Steam Trap
• Manufacturer: Armstrong International

Technical Specifications

• Connections: 3/4 inch (F)NPT
• Max Operating PSI: 175 psi
• End to End Length: 5 1/8 inches
• Condensate Capacity: 1,150 lbs/hr
• Max Temp: 377 degrees F @ 175 psig
• Type: Float and Thermostatic
• Body Material: Cast Iron
• Trap Position: Horizontal
• Pipe Configuration: Same Side
• Application: Steam
• Country of Origin: United States
