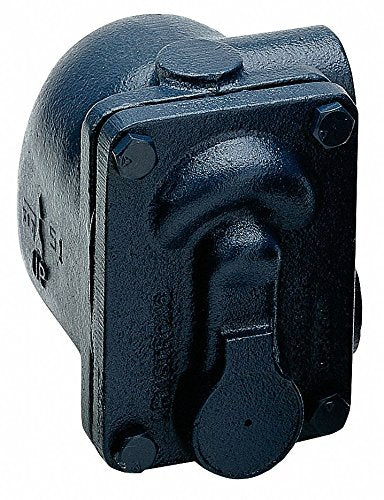

Armstrong International 15B4 Steam Trap 15 PSI, 4-7/8 Inches, Cast Iron Body

Product Description

The Armstrong International 15B4 Steam Trap is built to manage high condensate loads and ensure efficient condensate removal from steam systems. Constructed with a durable cast iron body and stainless steel internal components, it offers reliable long-term performance. It can handle pressures up to 150 psi and temperatures up to 446°F, making it suitable for various industrial steam applications like process lines, heat exchangers, and steam turbines. The trap features a thermostatic element that adjusts to varying steam loads, minimizing steam loss, and its design allows for easy installation and maintenance with an inline configuration and removable strainer.

• Handles high condensate loads
• Efficient condensate removal
• Easy installation and maintenance

Product Highlights

Engineered for a wide range of industrial steam applications, the Armstrong International 15B4 Steam Trap is compact, reliable, and easy to maintain.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: 15B4

Technical Specifications

• Max. Operating PSI: 15 psi
• Max. Temp.: 377 Degrees at 175 psig
• Body Material: Cast Iron
• Connections: (F)NPT 1 inch
• End to End Length: 4-7/8 inches
• Condensate Capacity: 2100 lbs/hr
• Pipe Configuration: Same Side
• Trap Position: Horizontal
