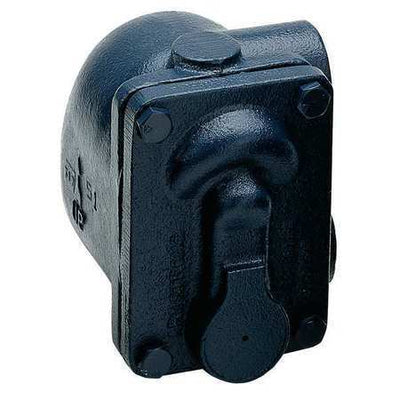

Armstrong International 15B3 Float & Thermostatic Steam Trap 15 PSI

Product Description

The Armstrong International 15B3 is a robust steam trap designed for reliable condensate removal in steam systems. Manufactured with cast iron and featuring a stainless steel seat and disc, this product ensures durability and longevity under rigorous conditions.

• Efficiently handles condensate loads up to 1,200 pounds per hour.
• Features an end-to-end length of 3 7/8 inches for compact installation.
• Operating at a maximum of 15 psi and able to withstand temperatures up to 353 degrees Fahrenheit.

Product Highlights

The 15B3 model streamlines system operations by preventing steam loss, essential for energy efficiency in industrial settings such as power generation and food processing. Equipped with a test lever, it allows for easy operational checks and maintenance.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: 15B3

Technical Specifications

• Dimensions: Length: 3 7/8 inches, Connection Size: 3/4 inch NPT
• Capacity: Condensate 1,200 lb/hr
• Max Operating Pressure: 15 psi
• Max Temp: 353 degrees Fahrenheit at 125 psi
