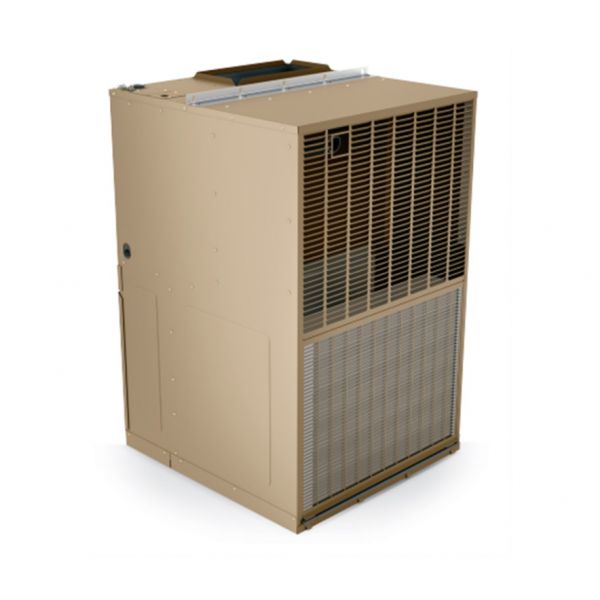

Armstrong Air HWC11P18B Magic-Pak 1.5 Ton Thru-the-Wall Cooling & Hot Water Heat Chassis

Product Description

The Armstrong Air HWC11P18B is a high-efficiency Magic-Pak replacement chassis designed for multi-family residential applications such as apartments, condominiums, and retirement homes. This 1.5-ton self-contained unit is engineered to slide into an existing HWC wall sleeve, providing a seamless upgrade for cooling and heating needs. The system features a factory-sealed refrigeration circuit, which eliminates the need for field-installed line sets, brazing, or charging, ensuring a simplified and reliable installation process. Specifically designed for use with hot water heating systems, it utilizes an internal water coil to provide consistent indoor warmth during colder months.

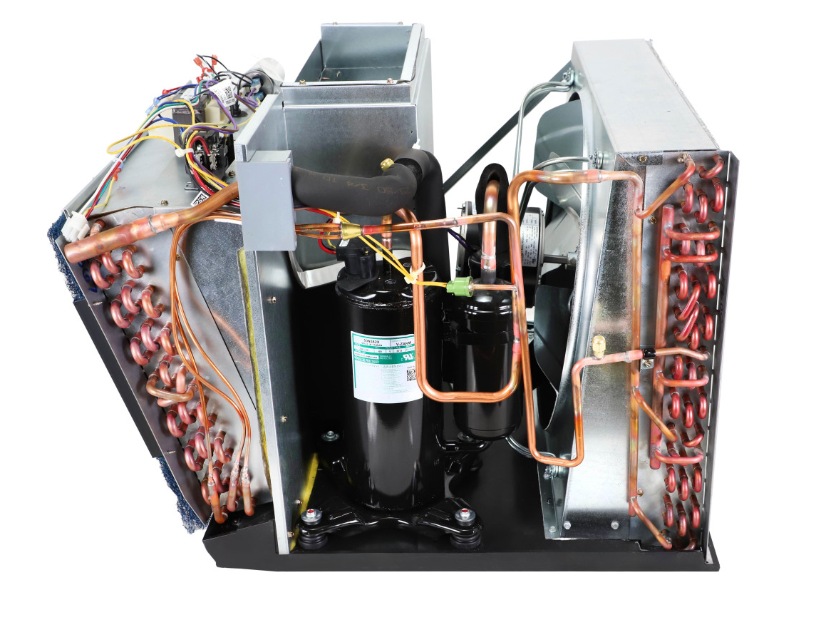

• Self-contained, pre-charged refrigeration system for rapid "slide-in" installation.
• Optimized for multi-family dwellings to provide individual climate control for every unit.
• Durable construction with high-grade components for extended system longevity in thru-the-wall applications.

Product Highlights

The HWC11P18B offers 18,000 BTU of cooling capacity with an 11.0 EER rating, delivering balanced energy efficiency and powerful climate control in a compact, thru-the-wall footprint.

Product Information

Standard Information

• Brand: ARMSTRONG AIR
• Manufacturer Part Number: HWC11P18B

Technical Specifications

• Unit Type: Replacement Chassis
• Product Line: Magic-Pak HWC Series
• Operating Mode: Cooling & Hot Water Heating
• System Capacity: 1.5 Tons (18,000 BTU)
• Cooling Capacity: 18,000 BTU/hr
• EER Rating: 11.0
• Refrigerant Type: R-410A
• Voltage: 208/230 Volts
• Phase: 1 ph
• Frequency: 60 Hz
• Installation Location: Indoor (Wall Sleeve)
• Heating Type: Hot Water Coil
• Cooling Type: DX (Direct Expansion)
• Unit Style: Thru-the-Wall Packaged Unit
