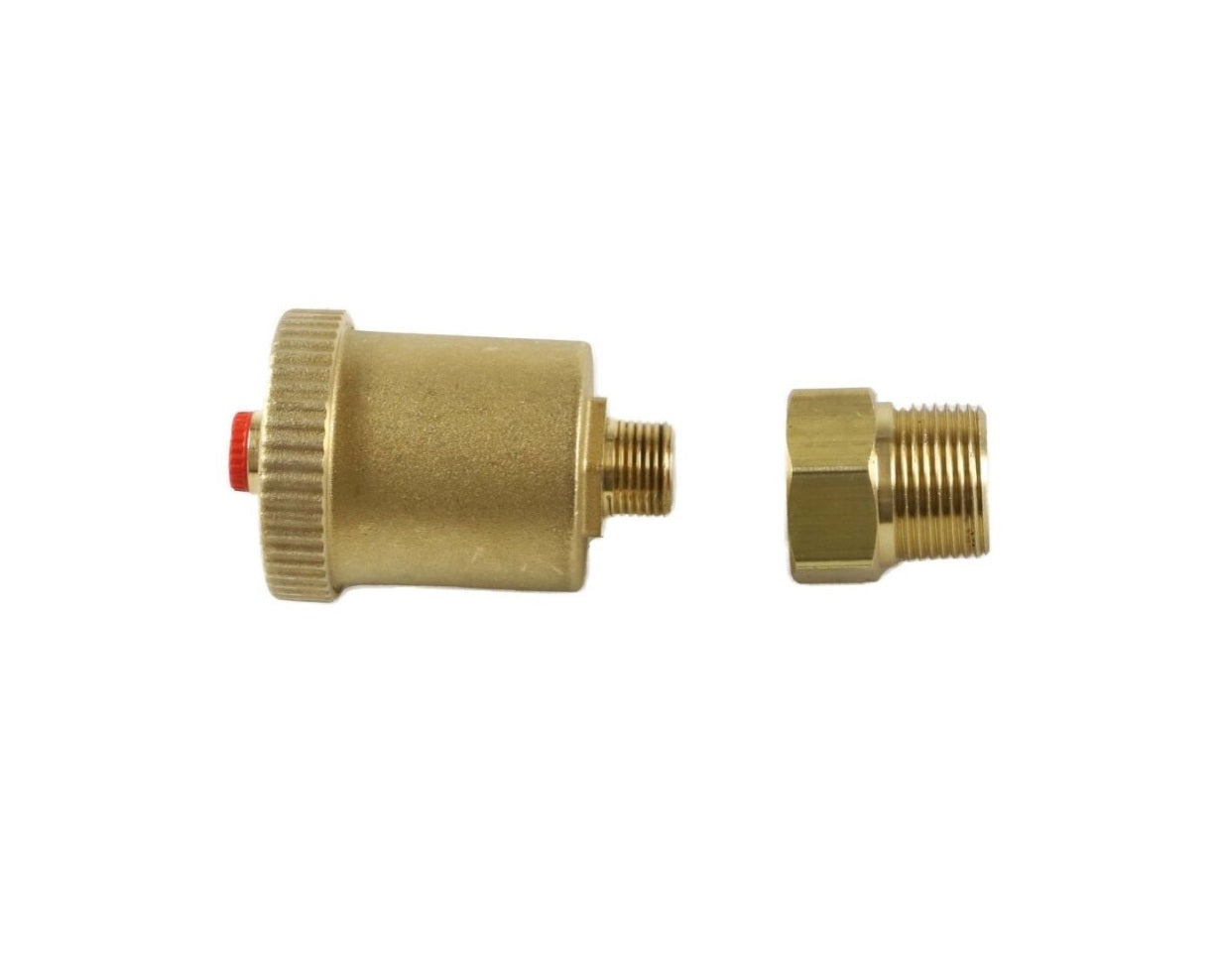

Armstrong Fluid Technology 272005-307 Automatic Air Vent AVV-075

Product Description

The Armstrong Fluid Technology 272005-307 automatic air vent, model AVV-075, is built for automatic air release in hydronic systems. This ensures there is no air accumulation, which can hinder system efficiency. Made from brass, the air vent includes a three-quarter inch male NPT and a half inch female NPT connection, and it directs air discharge vertically. It operates safely at a maximum working pressure of one hundred fifty PSI and can withstand temperatures up to two hundred forty-eight degrees Fahrenheit.

• Automatic air release
• Prevents air accumulation
• Brass construction

Product Highlights

This air vent is UL listed and CSA certified, which demonstrates its reliability for long-term use.

Product Information

Standard Information

• Manufacturer: Armstrong Fluid Technology
• Part Number: 272005-307

Technical Specifications

• Maximum Pressure: 150 PSI
• Temperature Range: 15 to 248 degrees Fahrenheit
• Width: 1.88 inches
• Height: 4 inches
• Model Number: 272005-307
