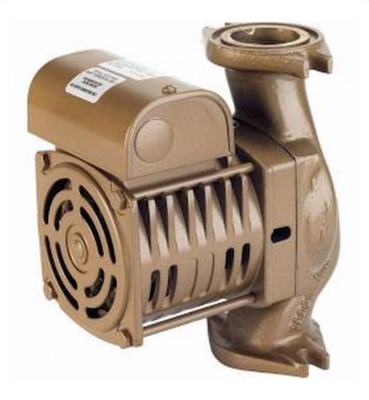

Armstrong Fluid Technology 182212-844 E14B 120V Circulator

Product Description

The Armstrong Fluid Technology 182212-844 E14B Circulator is a reliable single-phase circulator designed for various residential and light commercial uses. Operating at 120 volts, it can handle flow rates up to twelve gallons per minute and achieve a maximum head of twelve feet. Its compact design facilitates installation even in tight spaces, making it a practical choice for hydronic heating systems.

• Single-phase, 120V operation
• Flow rate of up to 12 GPM
• Maximum head of 12 feet

Product Highlights

This circulator offers energy efficiency and dependable performance in heating applications.

Product Information

Standard Information

• Item Number: 182212-844
• Brand: Armstrong Fluid Technology

Technical Specifications

• Motor HP: 0.2 HP
• Motor RPM: 3300 RPM
• Maximum Temperature: 230°F
• Working Pressure: 150 psi
• Weight: 19.4 lbs
• Dimensions: Eight point eight five inches (length) x Ten point one five inches (width) x Six point six inches (height)
• Construction Material: Durable bronze
• Warranty: One year
