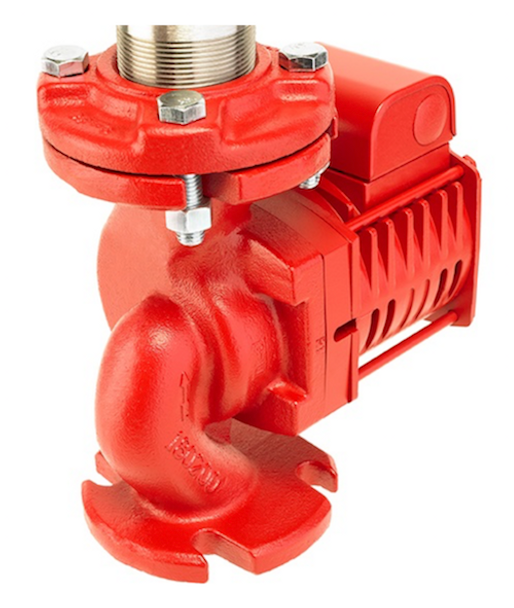

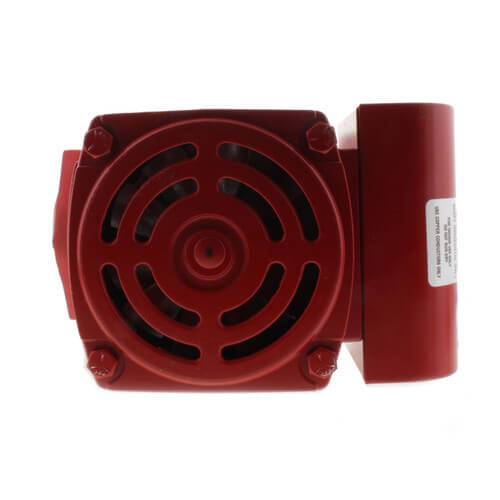

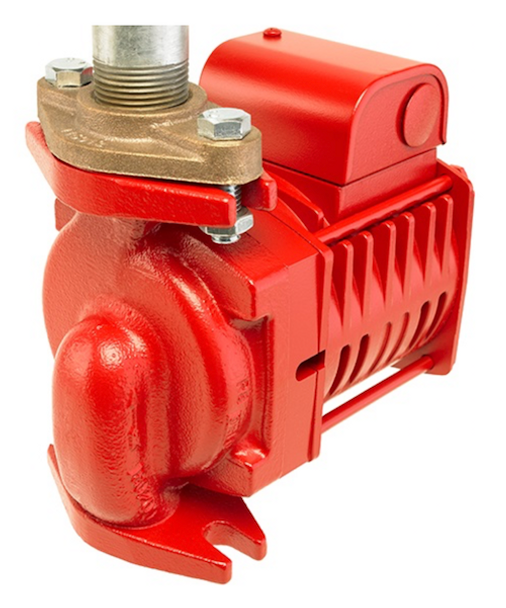

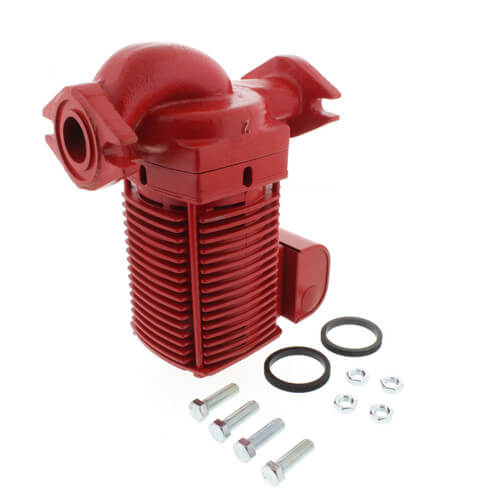

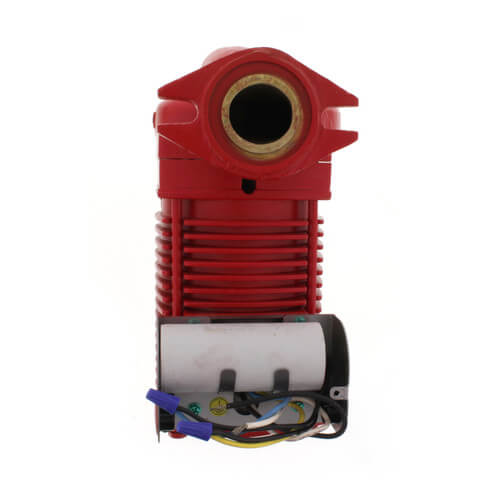

Armstrong Fluid Technology 182212-663 E17.2 Cast Iron Circulator 0-65 GPM Flow

Product Description

The Armstrong Fluid Technology 182212-663 E17.2 cast iron circulator is engineered for various hydronic applications featuring a flow range from zero to sixty-five gallons per minute. This circulator is ideal for hot and chilled water recirculation, including applications in domestic hot water systems and radiant heating setups. Built with a stainless steel shaft and permanently lubricated bearings, the pump is designed to deliver reliable performance.

• Built for hot and chilled water recirculation.
• Features a durable bellows-style mechanical seal.
• Suitable for geothermal systems and snow-melting applications.

Product Highlights

The Armstrong circulator provides strong protection against leaks, thereby safeguarding electrical components from water damage. It is suitable for both residential and light commercial use.

Product Information

Standard Information

• Manufacturer: Armstrong Fluid Technology
• Model: E17.2

Technical Specifications

• Max Flow (GPM): 65
• Max Head (Ft): 27
• Voltage: 120V
• Max Fluid Temp: 230°F
• Max Pressure (PSI): 150
• Material: Cast Iron
• Connection Type: Flanged x Flanged
• Phase: 1
• RPM: 3500
• Horse Power: 2/5
• Hertz: 60
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch
• Flanges Included: No
