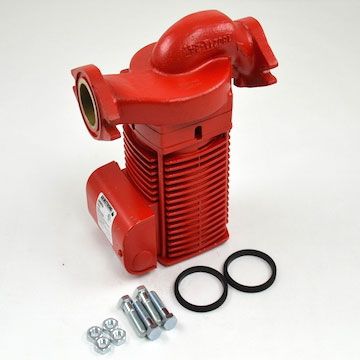

Armstrong Fluid Technology 182212-653 E24.2 CI 120V Circulator Cast Iron 2/5 HP 1 PH

Product Description

The Armstrong Fluid Technology Model 182212-653, known as the E24.2, is a robust cast iron circulator pump designed for reliable operation in a variety of settings. This 1/4 to 1/2 inch flanged unit integrates a high-performance 2/5 horsepower single-phase motor.

• Efficient single-phase motor with 3400 RPM
• Designed for both heating and cooling applications
• Durable silicon carbide mechanical seal

Product Highlights

The pump features lasting components and a refined product design for extended durability and reduced lifetime cost. Notably, it supports up to 140 gallons per minute and 60 feet of head, making it suitable for large residential and commercial settings.

Product Information

Technical Specifications

• Brand: Armstrong Fluid Technology
• MPN: 182212-653
• Model: E24.2
• Motor Phase: 1 Ph
• Motor Voltage: 120V
• Motor HP: 2/5 HP
• Max Temperature: 230°F
• Pump Connection Size: 1 inch, 1-1/4 inch, 1-1/2 inch flanged
• Pump Mounting: In-Line
• Working Pressure: 150 psi
