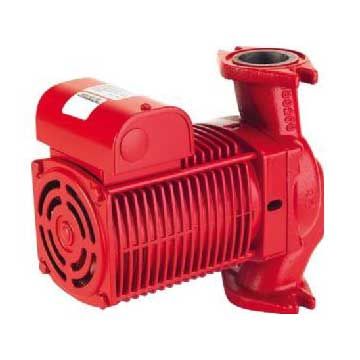

Armstrong Fluid Technology 182212-651 E23.2 - 1 - 1-1/2 Flgd, Cast Iron, 2/5 HP, 1 PH Circulator Pump

Product Description

The Armstrong Pump E23.2B is a robust cast iron circulator pump with a motor power of two-fifths horsepower and designed for single-phase applications. It features a stainless steel shaft, permanently lubricated bearings, and a mechanical seal that ensures durability. This pump is part of the E.2 Series which can handle up to one hundred forty gallons per minute and operates efficiently up to sixty feet of head.

• Cast iron construction provides reliability and strength.
• Ideal for heating and cooling system applications.
• Compact design allows for easy installation.

Product Highlights

This model is suitable for various applications including hot water, geothermal, radiant panel, and snow melt systems in large residential and light commercial settings.

Product Information

Standard Information

• Brand: Armstrong Fluid Technology
• Model: E23.2
• Category: Pumps & Circulators

Technical Specifications

• MPN: 182212-651
• Pump Construction: Cast Iron
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: One, one and one-quarter, one and a half inches
• Pump Connection: Flanged
• Motor HP: 2/5 HP
• Motor RPM: 3400 RPM
• Motor Voltage: 120V
• Motor Phase: 1 Phase
• Working Pressure: 150 psi
• Max Temp: 230°F
• Weight: 20.70
