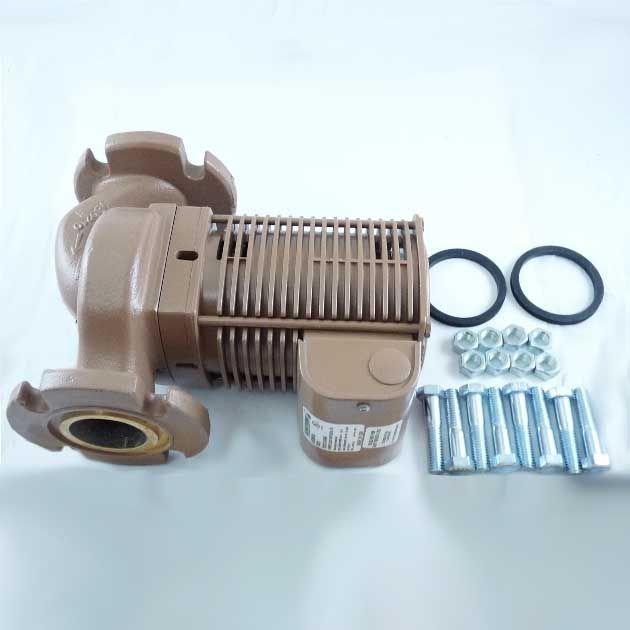

Armstrong Fluid Technology 182212-646 E30.2B - 2 Flgd, Bronze, 2/5 HP, 1 PH Circulator Pump

Product Description

The Armstrong Pump E30.2B is a circulator pump with a motor power of two fifths horsepower. This single-phase pump is designed with a durable bronze construction for a long service life.

• Pump Performance: Up to one hundred forty gallons per minute
• Compatible with heating and cooling systems
• Compact design for easier installation

Product Highlights

The E.2 Series circulator pumps are efficient for various applications including hot water and geothermal systems.

Product Information

Standard Information

• Brand: Armstrong Fluid Technology
• MPN: 182212-646

Technical Specifications

• Model: E30.2B
• Pump Construction: All Bronze-AB
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 2 inches
• Pump Connection: Flanged
• Motor HP: 2/5 HP
• Motor RPM: 3350 RPM
• Motor Voltage: 120V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Working Pressure: 150 psi
• Max Temp: 230 degrees F
• Weight: 25.7 pounds
