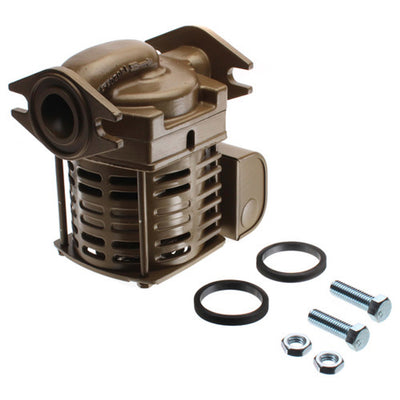

Armstrong Fluid Technology 182202-660 E9.2B 120V Bronze Circ Pump

Product Description

The Armstrong Fluid Technology 182202-660 E9.2B 120V Bronze Circ Pump is designed for efficient liquid circulation in various industrial applications.

• Reliable 1/6 HP motor
• Maximum flow rate of 140 GPM
• Durable bronze construction

Product Highlights

This pump features a stainless steel shaft, permanently lubricated bearings, and a mechanical seal with silicon carbide wear surface. It operates at 120V and is ideal for heating or cooling systems such as hot water, geothermal, radiant panel, and snow melt in large residential and light commercial installations.

Product Information

Standard Information

• Brand: Armstrong Fluid Technology
• MPN: 182202-660

Technical Specifications

• Model: E9.2B
• Pump Construction: All Bronze-AB
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection: Flanged
• Flanges Included: No
• Motor HP: 1/6 HP
• Motor RPM: 3250 RPM
• Motor Voltage: 120V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Motor Enclosure: ODP
• Working Pressure: 150 psi
• Max Temp: 230°F
• Potable Water: No
• Weight: 13.30
