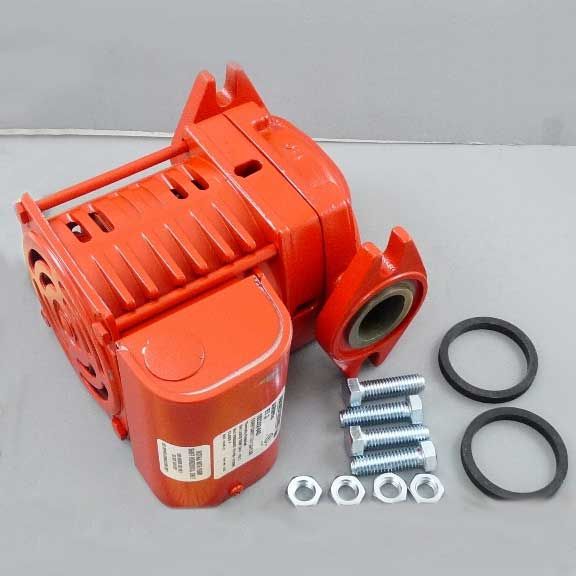

Armstrong Fluid Technology 182202-643 E7.2 CI Circulator Pump 1/6 HP Cast Iron

Product Description

The Armstrong Fluid Technology Model 182202-643, part of the E7.2 Series, is a high-performance circulator pump designed for HVAC systems. This pump is crafted from robust cast iron and is powered by a 1/6 HP motor, operating at a voltage of 120V and a frequency of 60 Hz.

• Efficient single-phase operation with a maximum flow of 140 gallons per minute.
• Durable bellows-style mechanical seal with silicon carbide wear surface for extended lifespan.
• Optimized impeller and hydraulics for improved energy efficiency.

Product Highlights

This circulator is engineered to facilitate the movement of water within heating and cooling systems, influencing better temperature control and energy conservation. Its compact and versatile design simplifies installation, especially in tight spaces or within complex setups. It's an ideal choice for applications such as hot water, geothermal, radiant panel, and snow melt systems in large residential and light commercial buildings.

Technical Specifications

• Brand: Armstrong Fluid Technology
• Motor Horsepower: 1/6 HP
• Operational Voltage: 120V
• Motor Speed: 3400 RPM
• Connection Size: 3/4 inch, 1 inch, 1-1/4 inches, 1-1/2 inches
• Maximum Operating Temperature: 230 degrees Fahrenheit
• Maximum Working Pressure: 150 psi
