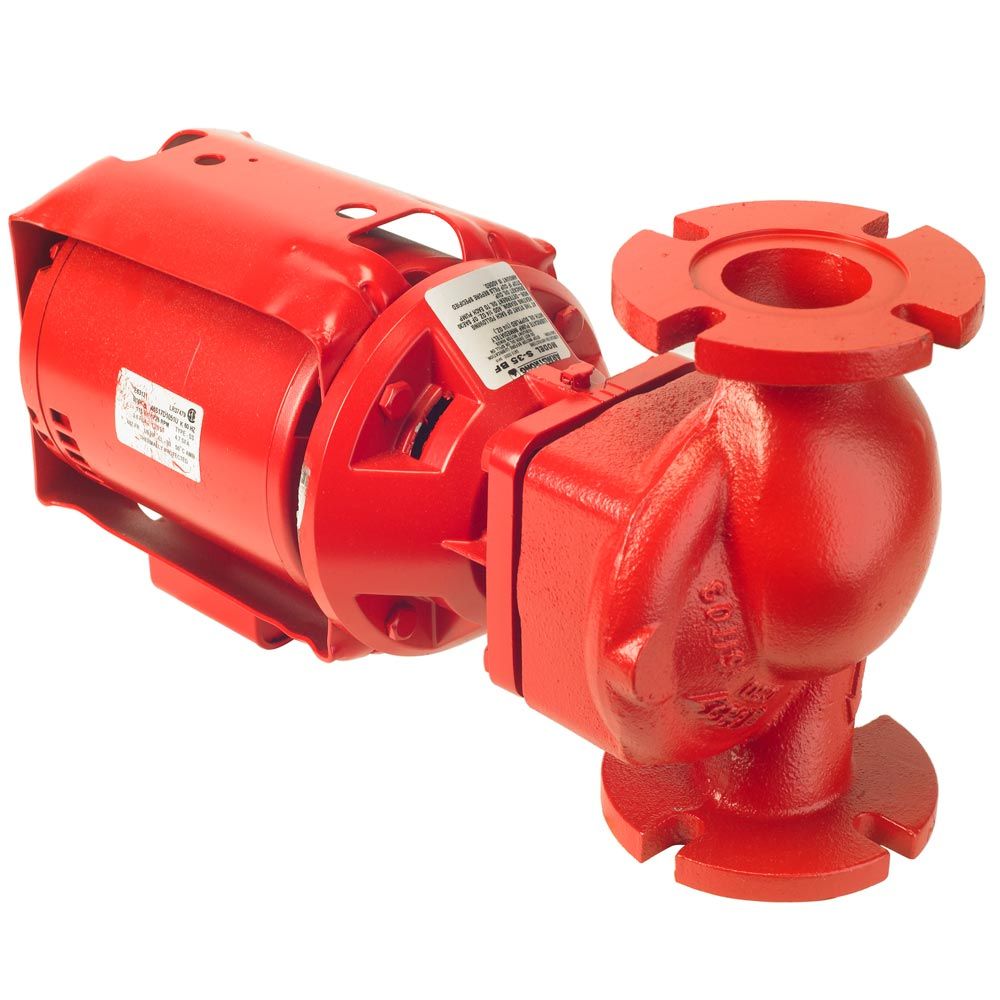

ARMSTRONG FLUID TECHNOLOGY 174033MF-013 S-35 Series S In-line Circulator 1/6HP 115V 1Ph

Product Description

Explore the Armstrong Fluid Technology S-35 Series S In-line Circulator, model 174033MF-013, engineered for reliability in HVAC systems and general industrial services. This 1/6 horsepower, single-phase pump boasts a radially-split, bronze-fitted body with a maintenance-free stainless steel shaft and a centrifugal non-ferrous impeller. The modular construction includes a removable shaft and bearing module for effortless maintenance.

• Efficient centrifugal operation with non-ferrous impeller.
• Modular design facilitating easy maintenance and part replacement.
• Optimized for hydronic heating and cooling applications.

Product Highlights

Armstrong's S-35 circulator supports a range of applications from domestic water systems to multi-stage zoning, providing a cost-effective and durable solution for fluid management challenges.

Product Information

Standard Information

• Brand: Armstrong Fluid Technology
• MPN: 174033MF-013

Technical Specifications

• Motor HP: 1/6 HP
• Motor Voltage: 115V
• Motor Phase: 1 Phase
• Max Temp: 225 degrees Fahrenheit
• Material: Cast Iron, Bronze-Fitted
• Flange Size: 2 inches
• Connection Type: Flanged
• Pump Type: Circulator, Booster
• Working Pressure: 125 psi
