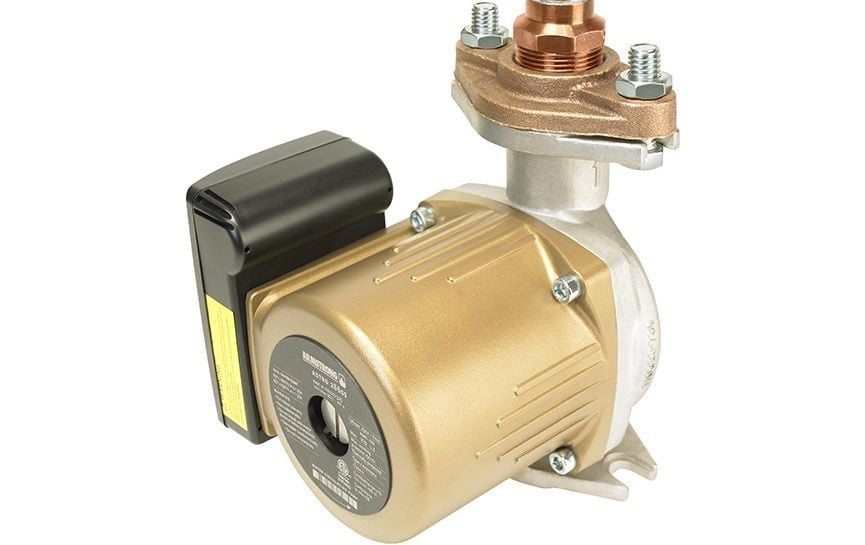

Armstrong Fluid Technology 110223-310 Astro 225SSU Union 3-Speed Circulator Pump

Product Description

The Armstrong Astro 225SSU, model number 110223-310, is a high-performance circulator pump designed for residential heating and cooling systems. This stainless steel pump features a three-speed motor allowing for adjustable flow rates to suit specific system needs.

• Equipped with a 1-1/4 inch union connection.
• Capability of handling up to 64 gallons per minute with a max head of 42 feet.
• Constructed with durable ceramic bearings and a Noryl impeller.

Product Highlights

Armstrong's Astro 225SSU is designed for reliability and efficiency. Its compact size and pre-installed high-flow check valve, which is removable if not required, make installation flexible and straightforward.

Product Information

Standard Information

• Brand: Armstrong Fluid Technology
• MPN: 110223-310

Technical Specifications

• Motor Voltage: 115V
• Motor Phase: Single Phase
• Maximum Temperature: 230 degrees Fahrenheit
• Working Pressure: 150 psi
• Pump Construction: Stainless Steel
• Pump Mounting: In-Line
