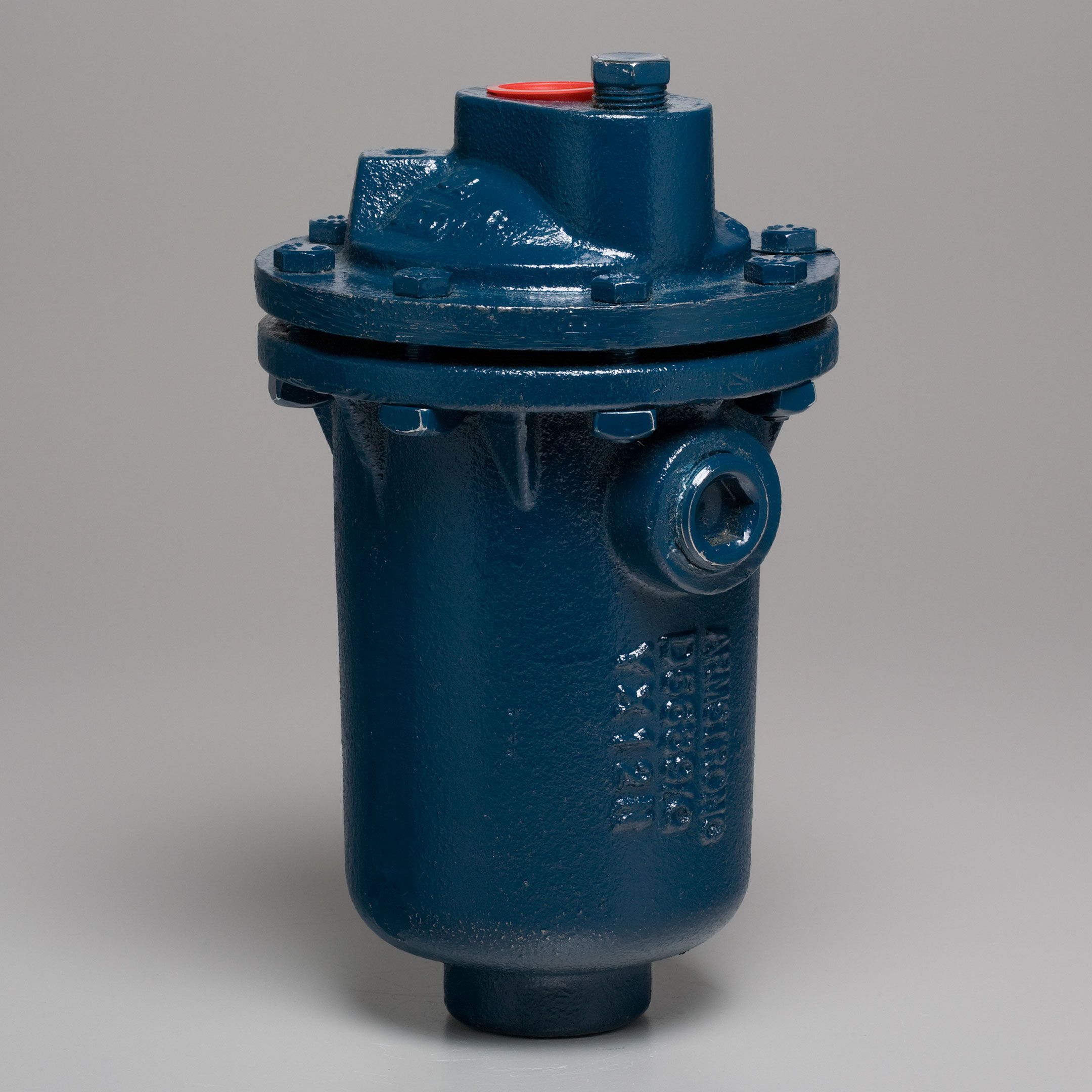

Armstrong D505792 214 Inverted Bucket Trap 1 NPT 15 PSI 5/8 Orifice

Product Description

The Armstrong inverted bucket steam trap model 214 features a one-inch trap connection in an in-line vertical configuration. This setup allows steam to enter from the bottom and condensate to discharge from the top. Inverted bucket traps utilize the weight of the bucket to open the valve against pressure, making them effective for various applications.

• High resistance to wear and corrosion
• 15 psi maximum operating pressure
• Capacity of 6,500 pounds per hour

Product Highlights

This steam trap is designed for heat exchange equipment, aimed at venting air and non-condensable gases quickly. It is suitable for purging air, managing dirt, and operates effectively under light loads and back pressure.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D505792

Technical Specifications

• Series: 200 Series
• Armstrong Model: 214
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Steam Trap Connection Size: 1 inch
• Steam Trap Mounting: In-Line Vertical
• Max Pressure: 15 psi
• Orifice Size: 5/8 inch
• Weight: 33.00 pounds
