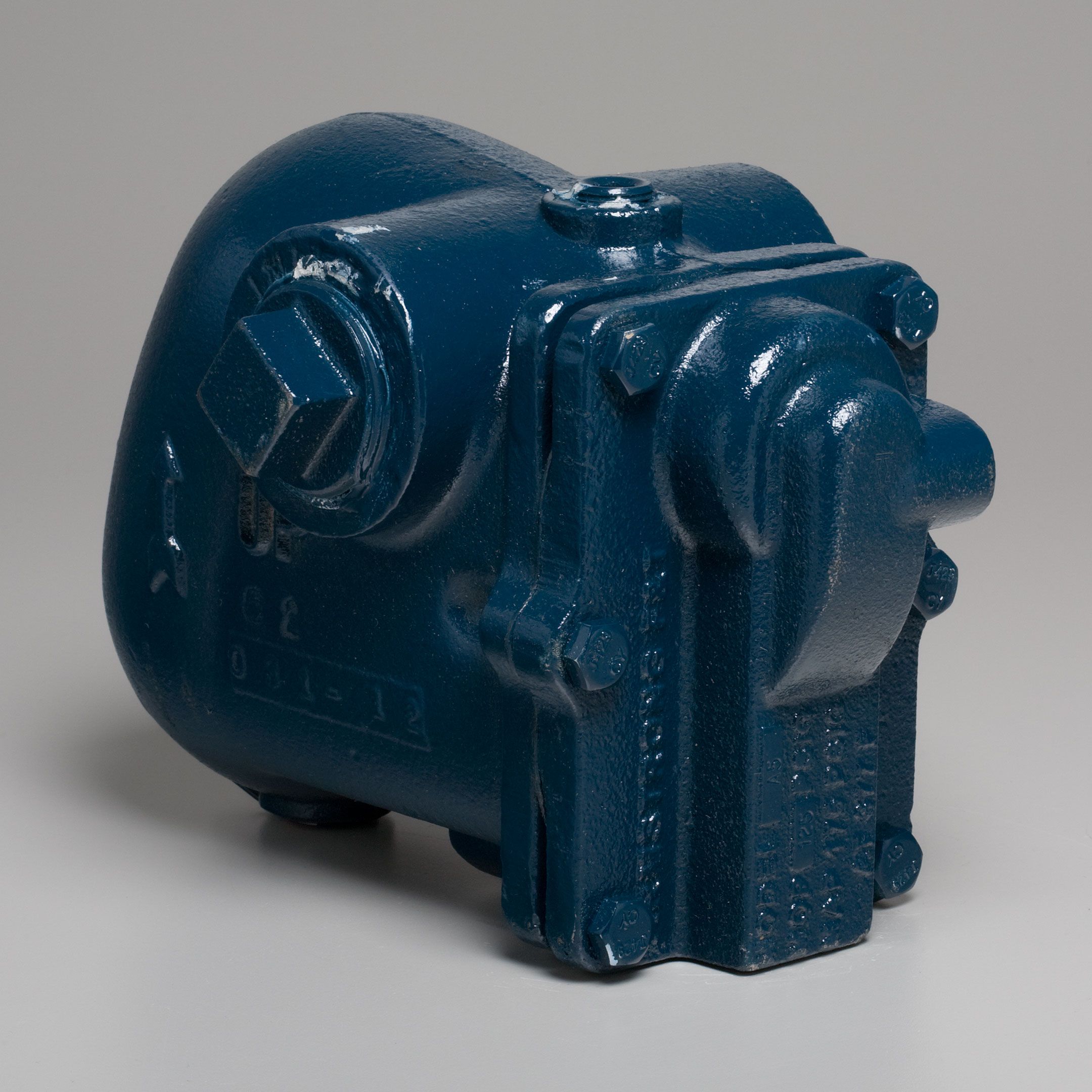

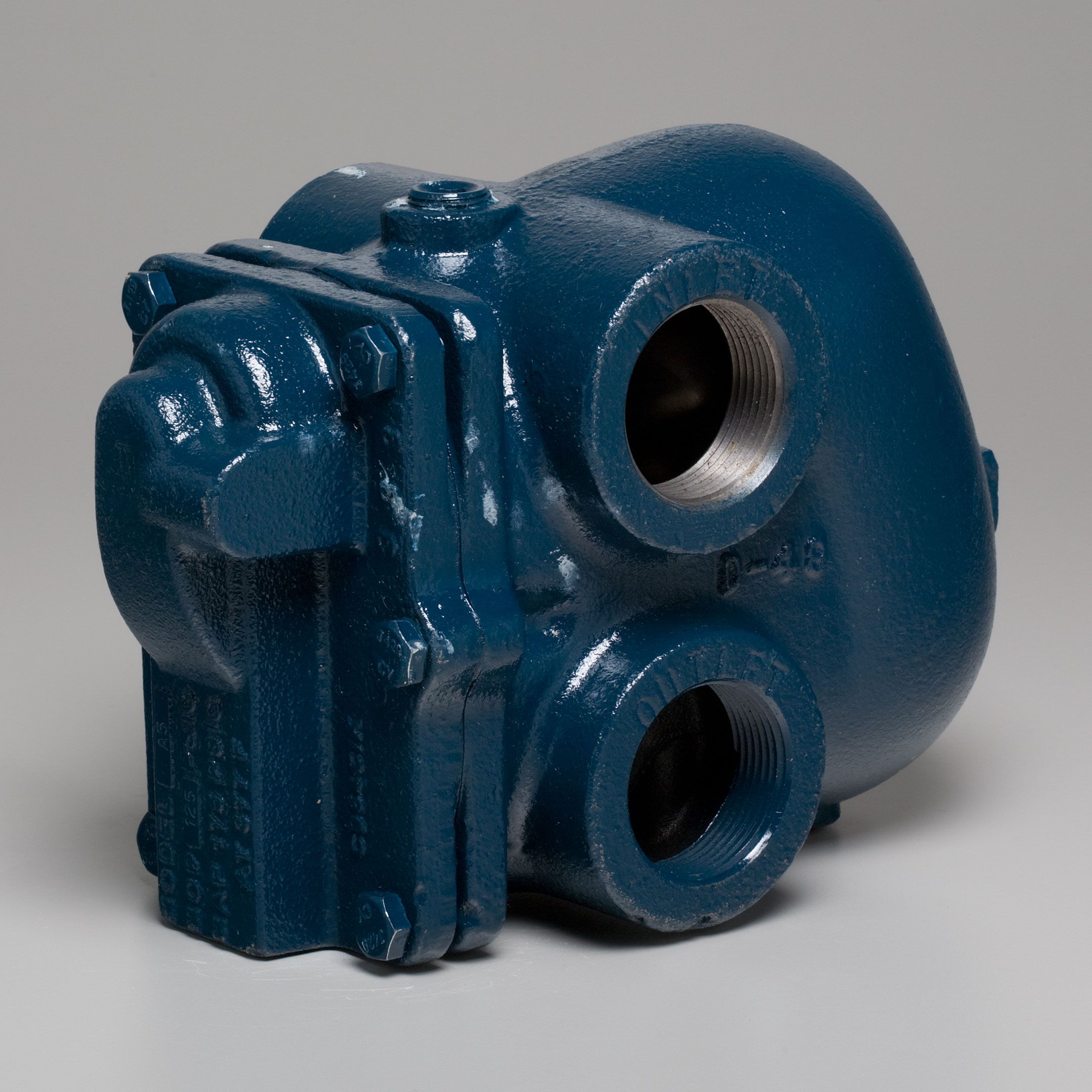

Armstrong D501410 Model 125-A5 - A Series 1-1/4 125 psi Cast Iron F&T Trap

Product Description

The Armstrong float and thermostatic steam trap, model 125-A5, has a 1-1/4 trap connection in a same side configuration. This cast iron trap is designed for reliable operation under a maximum pressure of 125 psi. It allows steam to enter from one side while discharging condensate from the same side. This design is ideal for industrial applications where effective discharge of condensate and air is critical.

• Maximum operating pressure of 125 psi
• Capacity to handle up to 2,380 pounds of steam per hour
• Designed for heat exchange equipment

Product Highlights

This steam trap is constructed with a balanced pressure phosphor-bronze bellows caged in stainless steel, ensuring durability and longevity in various operational conditions.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D501410

Technical Specifications

• Model: 125-A5
• Series: A Series
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1-1/4 inches
• Steam Trap Mounting: Same Side
• Max Pressure: 125 psi
• Weight: 12.50 pounds
