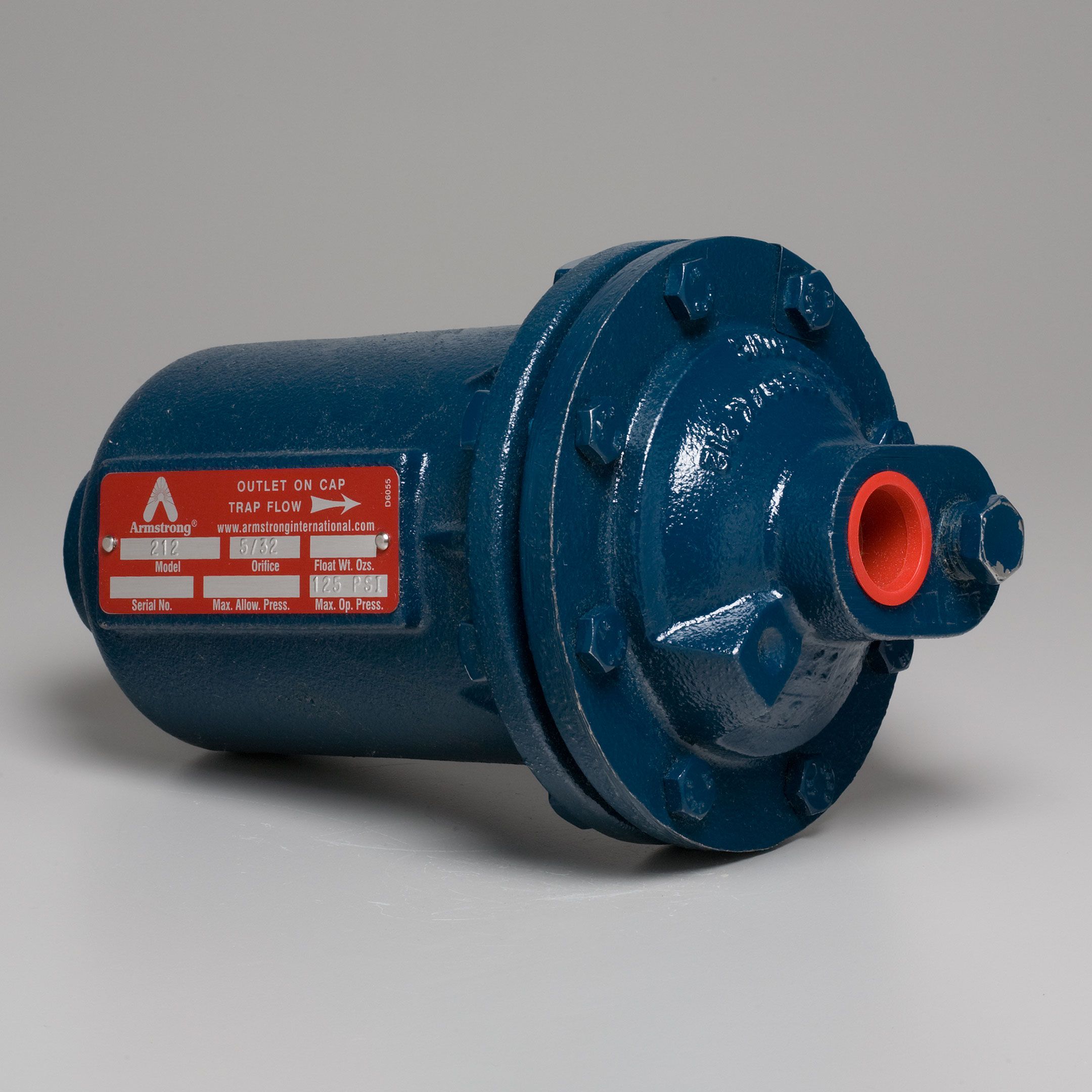

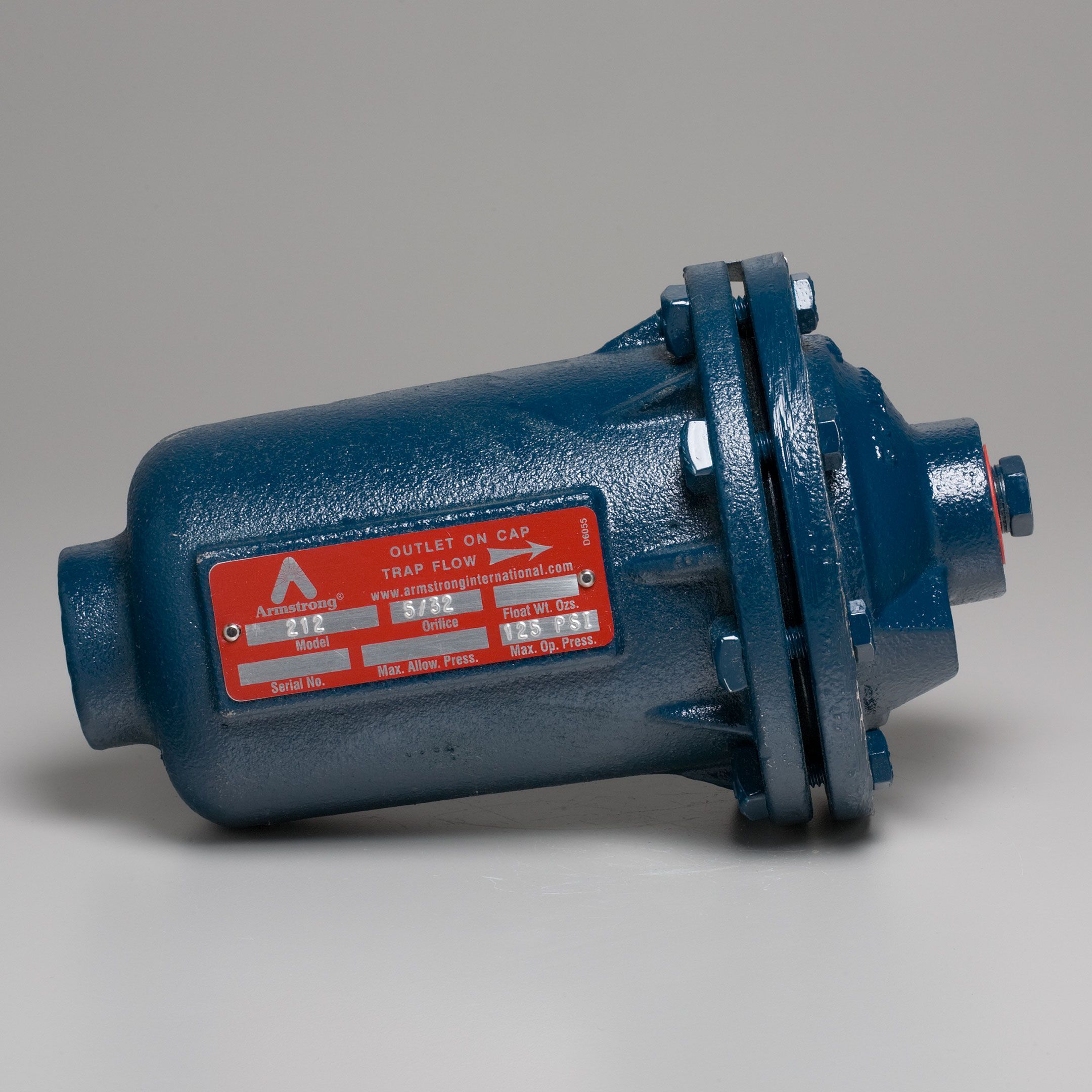

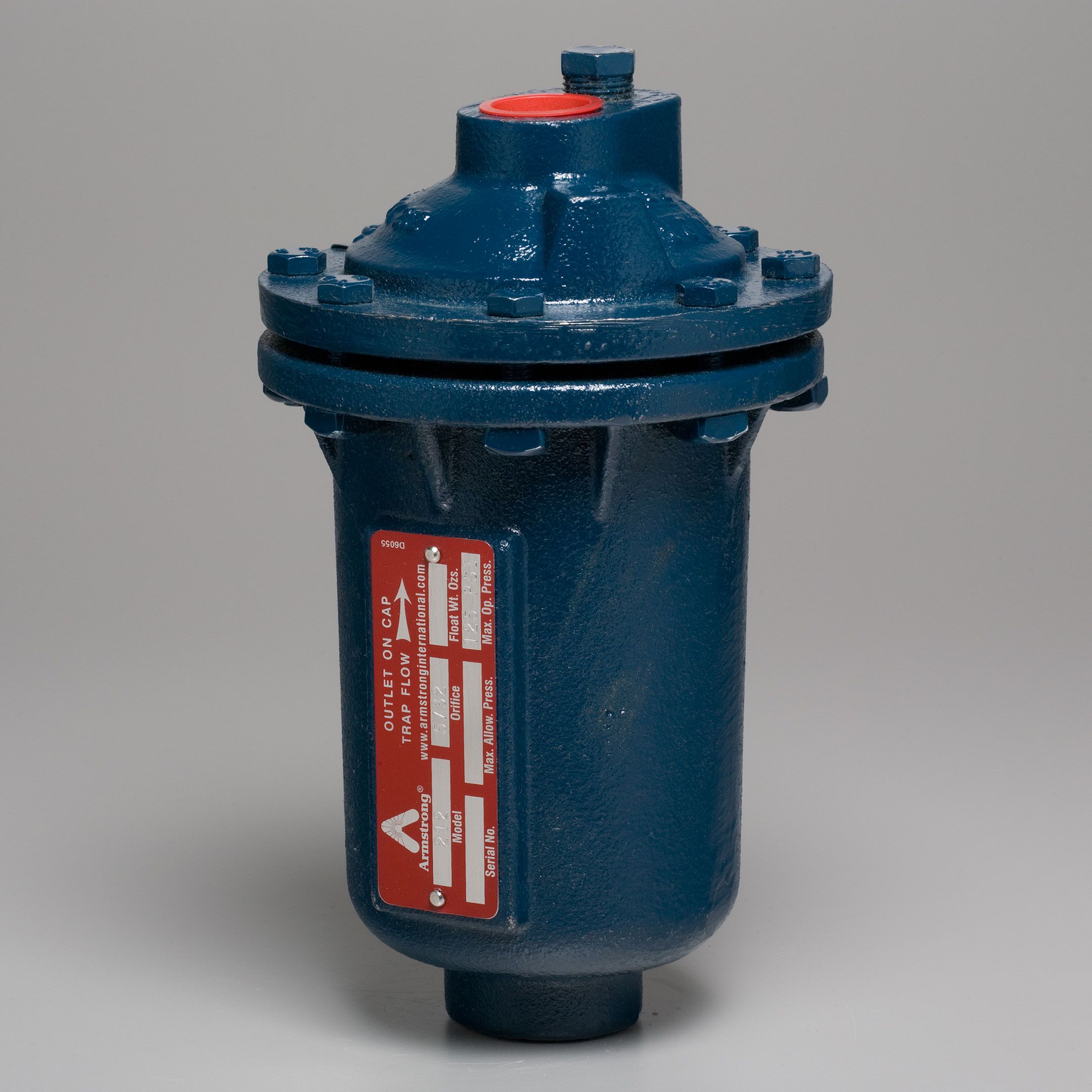

Armstrong International D501208 200 Series 3/4 in. 232F 250 psi Steam Trap

Product Description

The Armstrong International steam trap, model D501208, is part of the 200 series designed for effective condensate drainage. This steam trap features a three-quarter inch connection and operates at a maximum pressure of two hundred fifty psi (17 barg). The trap is made from cast iron, allowing for vertical installation and ensuring durability. The inverted bucket design allows for efficient drainage of condensate without obstructing steam flow.

• Efficient condensate drainage system
• Max operating pressure of 250 psi (17 barg)
• Handles capacities up to 20,000 lb/hr

Product Highlights

This steam trap's unique mechanism minimizes wear and friction by using a free-floating design. The automatic air venting system promotes continuous operation, ensuring no condensate backup during use.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D501208

Technical Specifications

• Series: 200 Series
• Max Pressure: 250 psi
• Orifice Size: 5/32 inches
• Weight: 11.50 lbs
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inches
• Steam Trap Type: Inverted Bucket
• Steam Trap Mounting: In-Line Vertical
