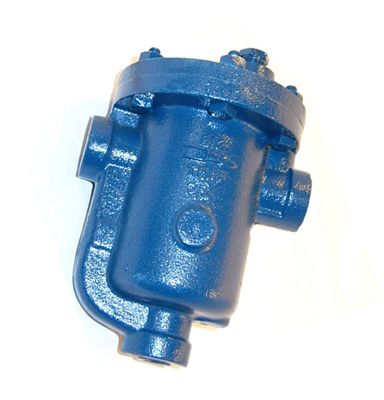

Armstrong D501081 Armstrong 812 Inverted Bucket Trap 200 psi 1/2

Product Description

The Armstrong inverted bucket steam trap, model 812, is designed for efficient condensate removal in steam systems. This unit features a one-half inch pipe connection and operates at a maximum pressure of two hundred psi. The in-line horizontal configuration allows steam to enter from the bottom while condensate discharges from the top, ensuring effective operation.

• Durable cast iron construction
• Handles up to 1,600 pounds of steam per hour
• Suitable for venting air and non-condensable gases quickly

Product Highlights

This steam trap is ideal for heat exchange equipment and is known for its resistance to wear and corrosion.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D501081

Technical Specifications

• Series: 800 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Steam Trap Connection Size: 1/2 inch
• Max Pressure: 200 psi
• Orifice Size: 1/8 inch
• Weight: 15.00 lbs
