Armstrong D500632 Model 175-A4 - A Series 1 175 psi Cast Iron F&T Trap

Product Description

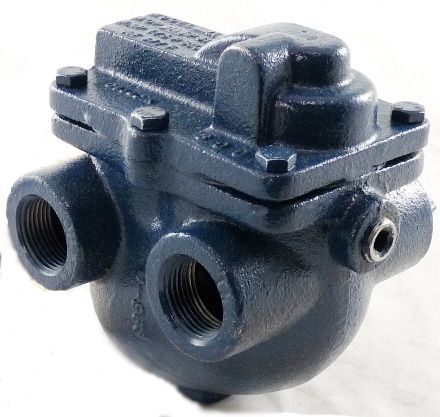

The Armstrong float and thermostatic steam trap, model 175-A4, has a 1 trap connection in a same side configuration. This steam trap allows steam to enter from one side and condensate to discharge from the same side. It is part of the A Series, designed for industrial applications, featuring balanced pressure phosphor-bronze type bellows within a stainless steel cage. The trap is constructed from cast iron and operates at a maximum pressure of 175 psi.

• Maximum operating pressure: 175 psi
• Capacity of 1,150 pounds per hour
• Fast venting of air and non-condensable gases

Product Highlights

This trap is ideal for heat exchange equipment needing to vent air quickly and handle various load conditions. It is suitable for applications where low pressure venting and start-up air load handling are required.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D500632
• Model: 175-A4
• Series: A Series

Technical Specifications

• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1 inch
• Steam Trap Mounting: Same Side
• Max Pressure: 175 psi
• Weight: 8.25 pounds
