Armstrong D500390 Model 15BI-3 - BI Series 3/4 15 psi Cast Iron F&T Trap

Product Description

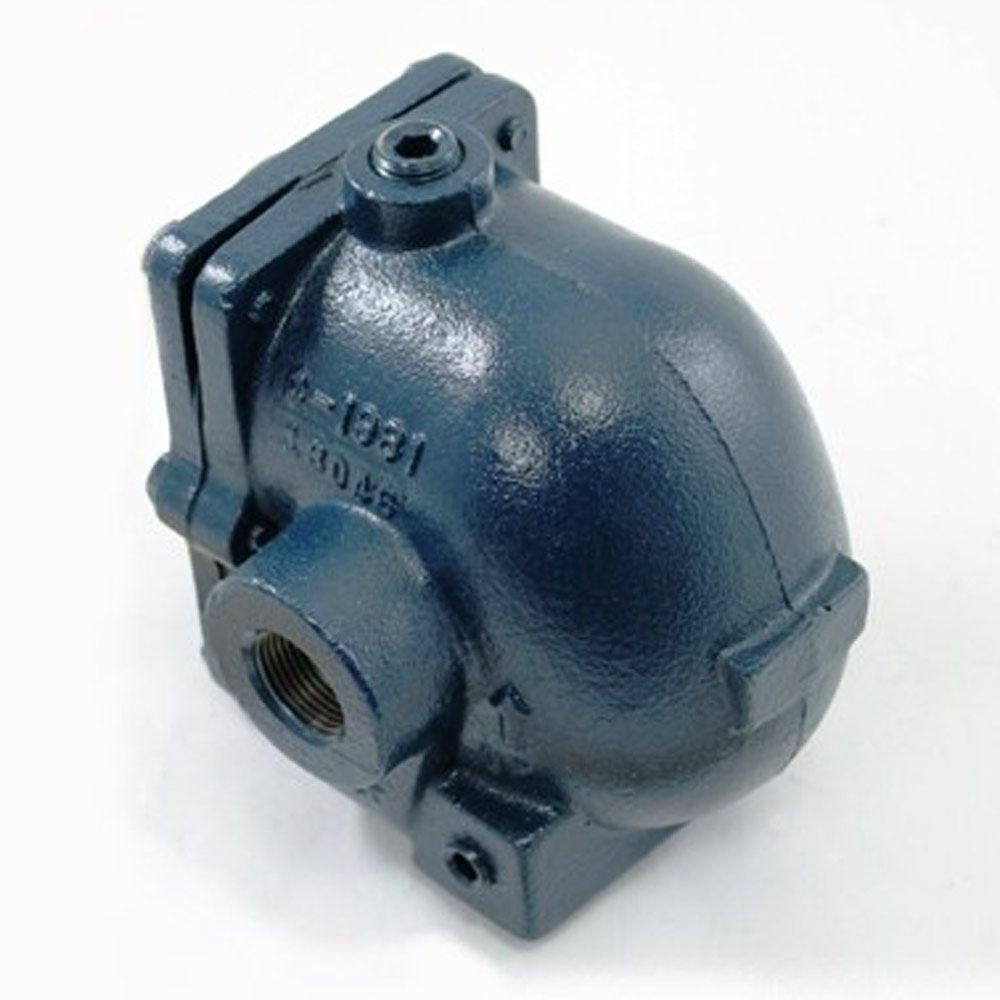

The Armstrong International D500390 Model 15BI-3 is a float and thermostatic steam trap. It features a three-quarter inch in-line inlet connection and is made from cast iron, providing durability in challenging conditions. This steam trap operates efficiently at a maximum pressure of fifteen psi. Its unique thermostatic air vent responds accurately to variations in steam pressure and temperature.

• Operates at a maximum pressure of 15 psi
• Constructed from durable cast iron
• Features a 3/4 inch in-line inlet connection

Product Highlights

The D500390 is suitable for heating applications requiring continuous drainage and high air-venting capability.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D500390
• Model: 15BI3
• Series: BI Series

Technical Specifications

• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inch
• Steam Trap Mounting: In-Line Vertical
• Max Pressure: 15 psi
• Weight: 9.88 pounds
