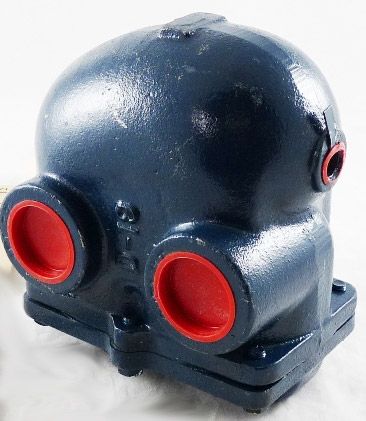

Armstrong International D500146 A Series 2 in. 377F 125 psi Steam Trap

Product Description

The Armstrong International D500146 is a float and thermostatic (F&T) steam trap designed for use in industrial steam systems. This steam trap features a two-inch connection and operates effectively under pressures up to 125 psi. It allows steam to enter from one side while discharging condensate from the same side, simplifying installation and maintenance.

• Compatible with pressures from 75 to 175 psig
• Cast iron material for durability
• Capacity of 8,600 lb/hr

Product Highlights

This Armstrong steam trap ensures efficient discharge of condensate and quick venting of air and non-condensable gases, making it suitable for applications where modulating pressures are present.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D500146

Technical Specifications

• Model: 125-A8
• Series: A Series
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 2 inches
• Steam Trap Mounting: Same Side
• Max Pressure: 125 psi
• Weight: 40.00 lbs
