Armstrong D500054 Model 75-A4 Steam Trap 75 psi 1 Replacement MPN

Product Description

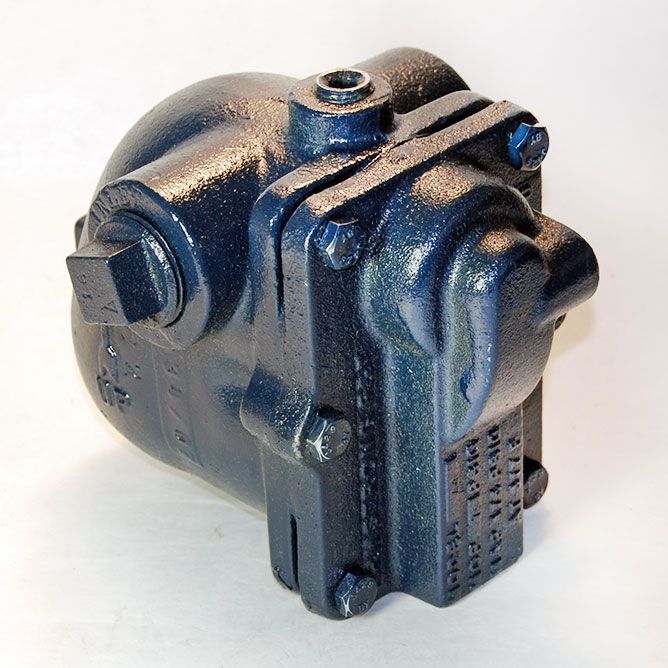

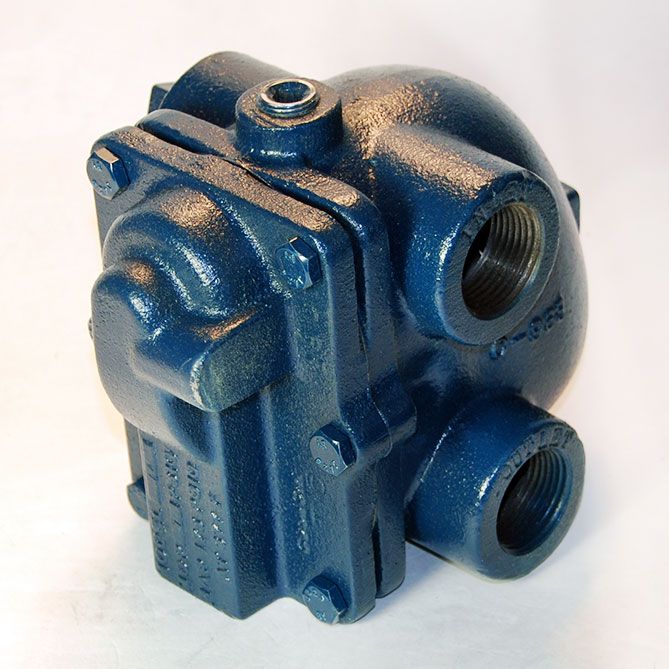

The Armstrong float and thermostatic (F&T) steam trap, model 75-A4, is designed for efficient operation in steam management. This trap features a 1 trap connection in a same side configuration. It allows steam to enter from one side while discharging condensate from the same side. The durable construction is made of cast iron, and it has a maximum operating pressure of 75 psi. The trap can handle a capacity of up to 1,870 pounds per hour. Suitable for industrial services, the F&T trap is designed for use on heat exchange equipment, enabling quick venting of air and non-condensable gases.

• 1-inch trap connection in same side configuration.
• Constructed from cast iron with a maximum pressure of 75 psi.
• Capacity of 1,870 pounds per hour for effective steam management.

Product Highlights

This steam trap is ideal for modulating pressure systems and is specifically recommended for operations with varying loads. It effectively vents air at low pressures and handles start-up air loads efficiently.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D500054

Technical Specifications

• Model: 75-A4
• Series: A Series
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1 inch
• Steam Trap Mounting: Same Side
• Max Pressure: 125 psi
• Weight: 8.25 pounds
